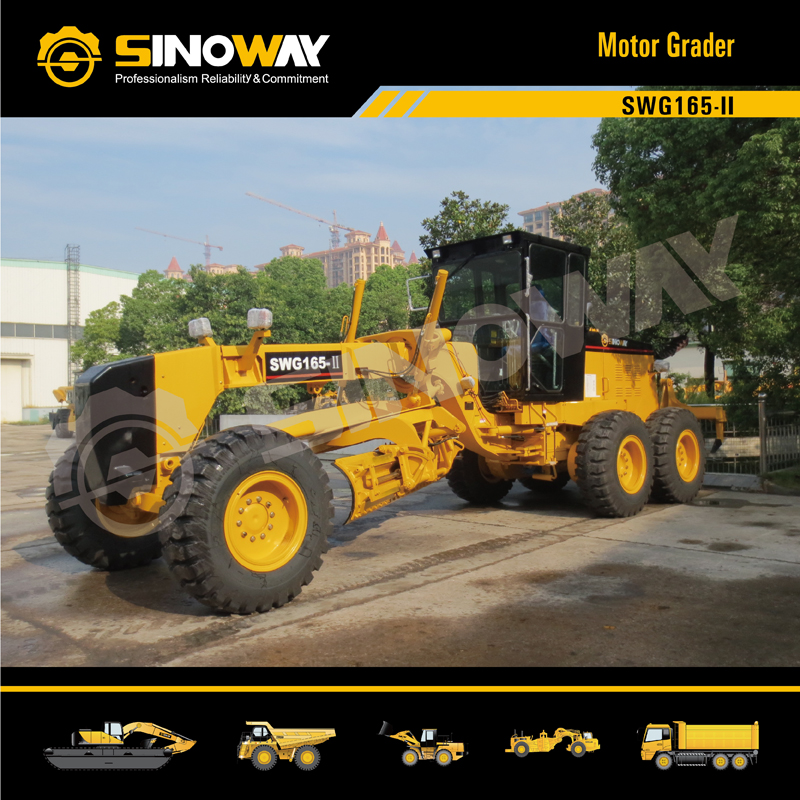

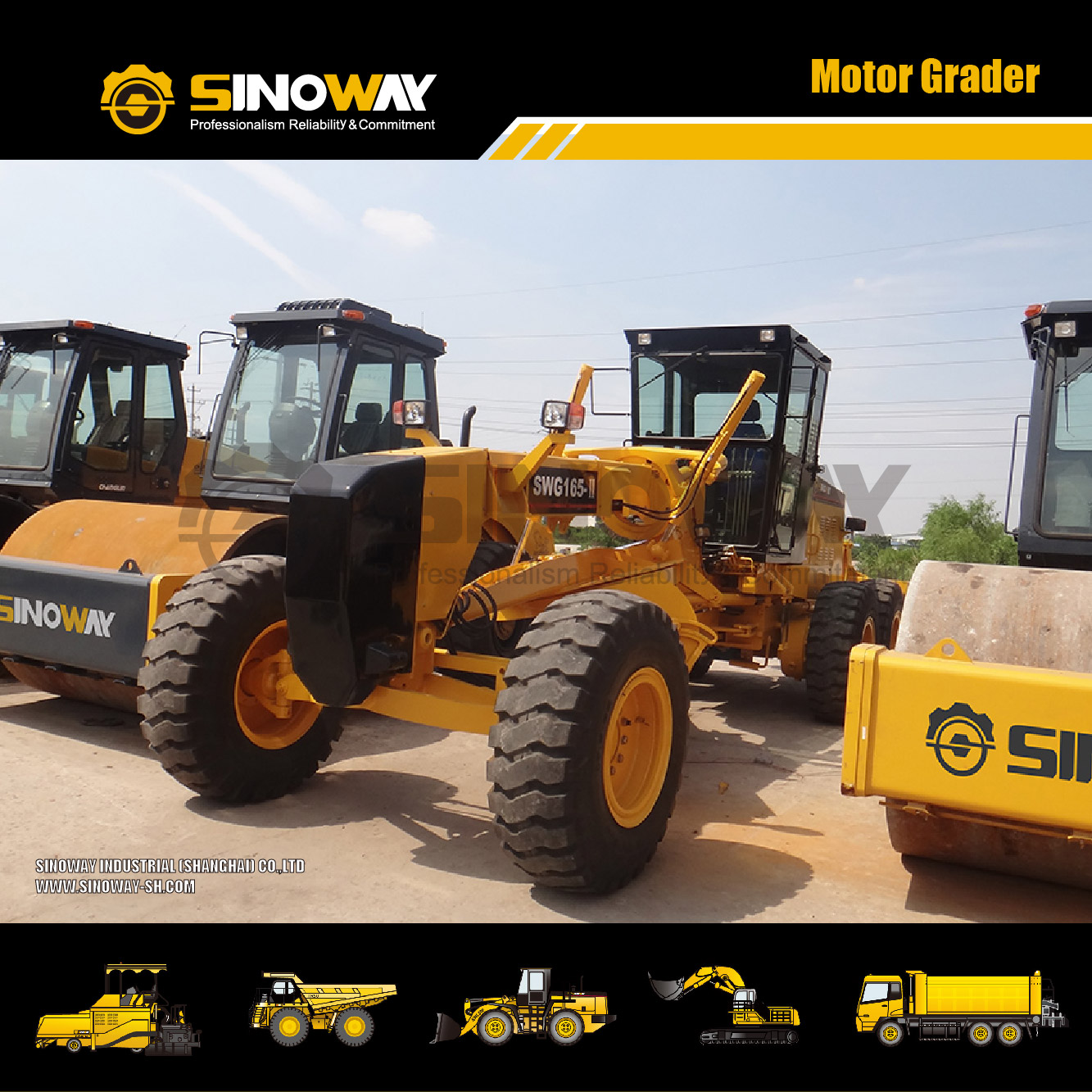

Cummins Engine Earthmoving Machinery 14.5 Ton Operating Weight
Motor Grader
Earth Moving Machinery
The motor grader is considered as one of the most versatile
earthmoving machines. With different design on weight, horsepower
and maneuverability, motor graders are being used in many
applications, as we say, the number of uses to which the motor can
be put is usually limited only the operator's skill and experience.
Motor graders work in a wide range of applications, from close
tolerance finish grading to building a road start-to-finish.
With the heritage of high reliability, Sinoway motor grader range
covers from 130HP mini road grader up to 315HP mining motor grader.
Word class power train components as well as hydraulics are
included, thus to ensure Sinoway graders as a very best choice for
your applications of soil foundation works, mine construction, road
maintenance and repair, provincial and township roads construction,
etc. Various attachments like front and rear ripper, front blade
and automatic leveling device, are available for extending
Performance and characteristic.
Advantages
New Appearance Design.
♠ Articulated frame with front wheel steering, small turning radius
and flexible maneuverability.
♠ Electro-hydraulic control power shift gearbox, 6 gears forward
and 3 gears backward.
♠ Internationalized hydraulic fittings, reliable operation.
♠ The action of spade is controlled by full hydraulic pressure.
♠ The rear axle is a three-stage drive axle equipped with NO-SPIN
self-locking differential.
♠ The control platform and seat can be adjusted, the control handle
and instrument are arranged reasonably, the use is convenient, and
the driving comfort is improved.
♠ The cab is luxurious and beautiful, with wide vision and good
sealing.
♠ It can be equipped with front bulldozer, back looser, front
looser rake and automatic leveling device.
Specifications
| Engine | |
| Model | Cummins 6BTA5.9 |
| Type | Six-cylinder,water-cooled turbocharged,mechanical injection |
| Rated power | 132KW |
| Rated speed | 2100rpm |
| Transmission System | |
| Torque conveter type | 3 elements, single stage |
| Torque ratio | 2.52 |
| Cooling type | Oil cooled, pressure circulation |
| Gearbox type | Power shift |
| Gear shifts(Forward/Reverse)Travelling speed(km/h) | F6/R3 |
| Forward/Reverse I | 6.5/6.5 |
| Forward/Reverse II | 11.4/14.6 |
| Forward/Reverse III | 14.6/30.0 |
| Forward IV | 24.8 |
| Forward V | 30 |
| Forward VI | 49.2 |
| Steering System | |
| Front wheel steering angle | 49º(L/R) |
| Articulated steering angle | 26º(L/R) |
| Drive type | Dual action cylinder |
| Axle | |
| Drive type | Four wheel drive(6×4) |
| Front axle ground clearance | 610mm |
| Front wheel lean | 32º(L/R) |
| Oscillation | ±15º |
| Drive axle | Imported No-SPIN differential |
| Working Equipment | |
| Control system | Hydrostatic drive system |
| Hydraulic pump | Gear pump |
| Control valve | HUSCO |
| Control pressure | 18MPa |
| Hydraulic oil cylinder | HYUNDAI |
| Max. tractive force | 78.5KN |
| Ground penetration | 535mm |
| Blade width | 3660mm |
| Blade cycling | 360º |
| Max. bank cutting angle | 90º(L/R) |
| Operating weight | 14500kg |
| Braking System | |
| Service brake | Hydraulic assist actuated on inner-expanding drum brake |
| Parking brake | Flexible shaft control actuated drum brake |
| Dimensions | |
| Overall length | 8630mm |
| Overall width(wheel outside) | 2600mm |
| Overall height | 3370mm |
| Wheel base | 6100mm |
| Front tread | 2120mm |
| Rear tread | 2120mm |
| Tyre size | 17.5-25 |
| Service Capacities | |
| Fuel tank | 350L |
| Engine crank case | 27L |
| Hydraulic tank | 70L |
| Gear box | 45L |
| Rear axle | 18L |
| Balance box | 42L(each) |
| Worm gear case | 3L |
| Tandem Drive | |
| Type | Swing type with roller chain transmission |
| Speed ratio | 18.03 |
