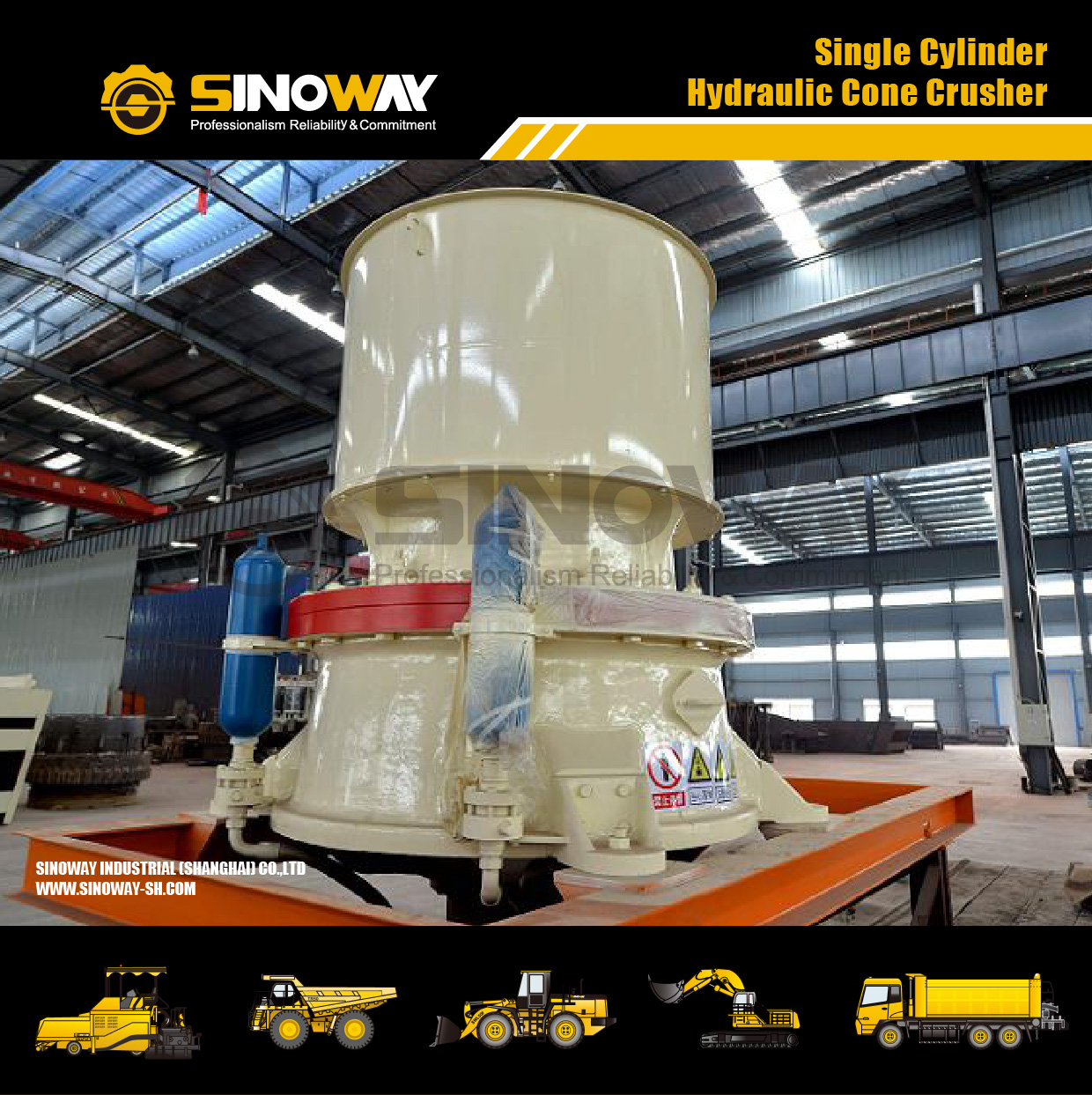

Hydraulic Cone Crusher Aggregate Processing Equipment Single Cylinder Hydraulic Cone Crusher

Single cylinder hydraulic cone crusher is a kind of hydraulic cone crusher. It has advanced structure design, excellent crushing ability and excellent reliability .Hydraulic cone breaking through a single hydraulic cylinder lifting cone, realizes many functions such as ore discharge adjustment, clearing cavity, iron overload protection and so on. With electronic intelligent ore discharge control system, more production process control and operation optimization functions are realized.

When the single cylinder hydraulic cone crusher works, the motor drives the pinion of the crusher, the pinion drives the big gear, the big gear assembly (big gear, big gear frame, eccentric steel sleeve) drives the eccentric sleeve assembly (eccentric cylinder sleeve, eccentric copper sleeve) and the main shaft assembly (spindle, inner cone, inner cone liner plate) centers on the theoretical vertical line, rotates in the copper bush, and the main shaft assembly is in the eccentric copper sleeve. Spindle rotation can be achieved by centerline of spindle. When the airplane is running, the eccentric sleeve assembly "holds" the spindle assembly and rotates with the big gear. When the material is added to the crushing chamber, the spindle assembly (spindle, inner cone) rotates slowly in the eccentric copper sleeve under the resistance of the material. The trajectory of the inner cone seems to oscillate back and forth in the crushing chamber, while slowly rotating. The material is crushed by the swinging inner cone. When metal blocks and other non-fragile objects fall into the crusher, the dynamic cone of the single cylinder is supported by the bottom hydraulic piston, which plays the role of adjusting the discharge outlet and protecting the iron passage, repeatedly lifting and removing blockage.

Adjustment of outlet size: The first function of the bottom hydraulic cylinder is to adjust the upper and lower position of the spindle so as to adjust the spacing between the moving cone and the outer cone liner. The smaller the spacing is, the smaller the discharging granularity of crusher is; the larger the spacing is, the larger the discharging granularity of crusher is. At the same time, choosing different crushing chamber and different eccentric sleeve can also change the size of material.

The single cylinder hydraulic cone crusher has the following characteristics: large crushing ratio, high production efficiency; laminated crushing, more uniform grain size of finished products; less consumption of vulnerable parts, low operating cost; coarse and fine crushing can be achieved only by replacing fixed cone; advanced hydraulic technology realizes overload protection and hydraulic adjustment of discharge outlet, simplifies crusher structure, reduces heavy oil lubrication and reliability; Advanced, improve service life, easy maintenance, easy operation and use. Single cylinder hydraulic cone crusher is suitable for crushing raw materials in metallurgy, construction, road construction, chemistry and silicate industries. It can crush all kinds of ores and rocks with medium and medium hardness. Hydraulic cone crushing ratio is large, high efficiency, low energy consumption, uniform product size, suitable for medium crushing and fine crushing of various ores and rocks.
