    Grinding Equipment Mineral Processing Equipment

    Ask Lasest Price
    Brand Name : SINWOAY
    Model Number : MBYG2130
    Certification : ISO9001
    Price : Negotiation
    Payment Terms : T/T, L/C, D/A, D/P
    Supply Ability : 2500 sets per year
    Delivery Time : 30 days
    • Product Details
    • Company Profile

    Grinding Equipment Mineral Processing Equipment

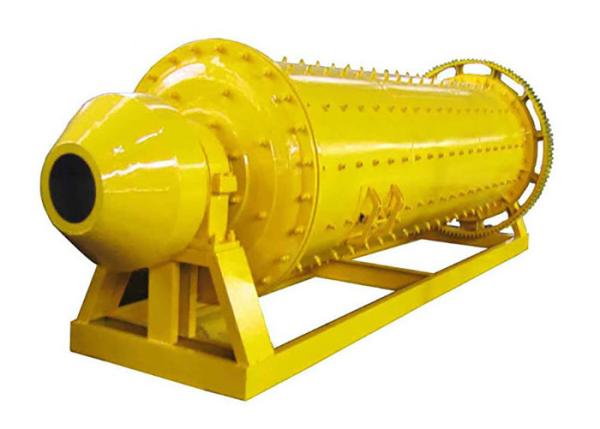

    Mineral Processing Equipment 42 Ton Rod Mill

    Rod mill is a grinding equipment with steel rod as grinding medium. It is used to coarse grinding and suitable for fine crushing and coarse grinding in first stage of open circuit grinding. This machine include overflow rod mill, end peripheral discharge rod mill and center peripheral discharge rod mill, which could meet different requirement.


    Features and technology advantages

    1.The steel rod takes regular movement in mill

    2. It is convenient to install and maintain

    3. Rapidly discharging

    4. Even particle size of product, little over grinding


    Working principle

    The rod mill is driven by motor with speed reducer and peripheral large gear, or low speed synchronous motor with peripheral large gear. The grinding medium-steel rod is put into the cylinder which is lifted, and then fall under the action of the centrifugal force and friction force. The materials entering into cylinder from the feeding inlet are grinded by movable grinding medium and discharged out by overflow and continuously feeding.


    Specification


    ModelCylinder
    Diameter
    (mm)
    Cylinder
    Length
    (mm)
    Power
    (kw)
    Max. Rodl Load (t)Capacity (t/h)Effective
    Volume
    (m3)
    Weight
    (t)
    MBY09189001800221.70.62~3.20.95.7
    MBY09249002400302.10.81~4.31.25.9
    MBY122412002400452.30.4~4.92.2812.3
    MBY 1530150030009550.4~4.9520
    MBYG1530150030008052.4~7.5521
    MBYG213021003000180914~35942
    MBYG2136210036002101143~6110.846
    MBYG2430240030002801245~6511.556
    MBYG2732270032003201431~7615.783
    MBYG2736270036003801832~8617.791
    MBY27402700400040020.543~11020.475
    MBY3040300040005702854~1352693
    MBY3245320045008003364~18031113
    MBY36453600450012504280~23041.8139
    MBY365436005400160047100~25049.7152
