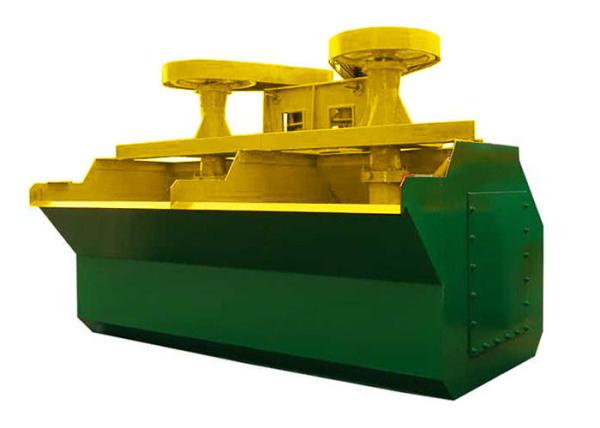

45KW Power Mineral Processing Equipment XCF Mixing Flotation
Machine
Sinoway XCF flotation machine is not only a general air mixing type
flotation machine of good flotation technical index and low energy
consumption, but also can be horizontal layout to reduce the
beneficiation process complexity and infrastructure investment. KYF
type flotation machine is not provided with self-priming function
and is usually used together with XCF flotation machine, which is
widely used in non-ferrous metal, black metal and chemical
industry, and have produced remarkable economic benefits.
Features and technology advantages
1.The impeller has upper and lower blades to form slurry suction
zone and aeration zone respectively;
2.Self-priming slurry, can be horizontal layout and arrangement;
3. Aeration volume is easily adjustable;
4.Low speed, low consumption;
5.Concentrate taste improved, recovery rate increased;
6.Less reagent consumption, wearing parts with long cycle;
7.Simple structure, convenient operation and maintenance;
8.Often combined with KYF flotation machine.
Working principle
When rotating impeller, the impeller blades suck feeding and
middling, the slurry in tank is drawn from the lower end of the
impeller to the lower blades of the impeller, at the same time, the
low pressure air by the blower is fed, through distributor, into
the impeller blades, slurry and air are well mixed between lower
blades of impeller, then discharged from the periphery of blades,
so the discharged slurry-air mixture together with discharged
slurry from upper blades, after stators’ stabilization and
orientation effect which are installed around impellers, enter into
the main slurry of tank, mineralized bubbles rise to the surface of
tank and forming foam layer.
Specification
| Model | Cell Volume (M³) | Internal Dimension (L×W×H)(M) | Power (Kw) | Min Inlet Pressure (Kpa) | Charge Adjustment Range
(M ³/Min) | Capacity (M ³/Min) | Single Cell Weight(Kg) |
| XCF -1 | 1 | 1.0×1.0×1.0 | 4 | ≥11 | 0.05~1.4 | 0.2~0.5 | 920 |
| XCF-2 | 2 | 1.3×1.3×1.25 | 5.5 | ≥12 | 0.05~1.4 | 0.5~1 | 1158 |
| XCF-3 | 3 | 1.6×1.6×1.4 | 7.5 | ≥14 | 0.05~1.4 | 0.7~1.5 | 2172 |
| XCF-4 | 4 | 1.8×1.8×1.5 | 11 | ≥15 | 0.05~1.4 | 1~2 | 2375 |
| XCF-8 | 8 | 2.2×2.2×1.95 | 22 | ≥19 | 0.05~1.4 | 2~4 | 4142 |
| XCF-10 | 10 | 2.4×2.4×2.1 | 30 | ≥20 | 0.05~1.4 | 3~5 | 4894 |
| XCF-16 | 16 | 2.8×2.8×2.4 | 37 | ≥23 | 0.05~1.4 | 4~8 | 6928 |
| XCF-20 | 20 | 3.0×3.0×2.7 | 45 | ≥25 | 0.05~1.4 | 5~10 | 9200 |
| XCF-24 | 24 | 3.1×3.1×2.9 | 55 | ≥27 | 0.05~1.4 | 6~12 | 10820 |
| XCF-30 | 30 | 3.5×3.5×3.0 | 55 | ≥31 | 0.05~1.4 | 7~15 | 14810 |
| XCF-50 | 50 | 4.4×4.4×3.5 | 90 | ≥33 | 0.05~1.4 | 10~25 | 22000 |
| XCF-70 | 70 | 5.1×5.1×3.8 | 90 | ≥35 | 0.05~1.4 | 13~50 | 26200 |
| XCF-100 | 100 | 5.9×5.9×4.2 | 132 | ≥40 | 0.05~1.4 | 20~60 | 33500 |
