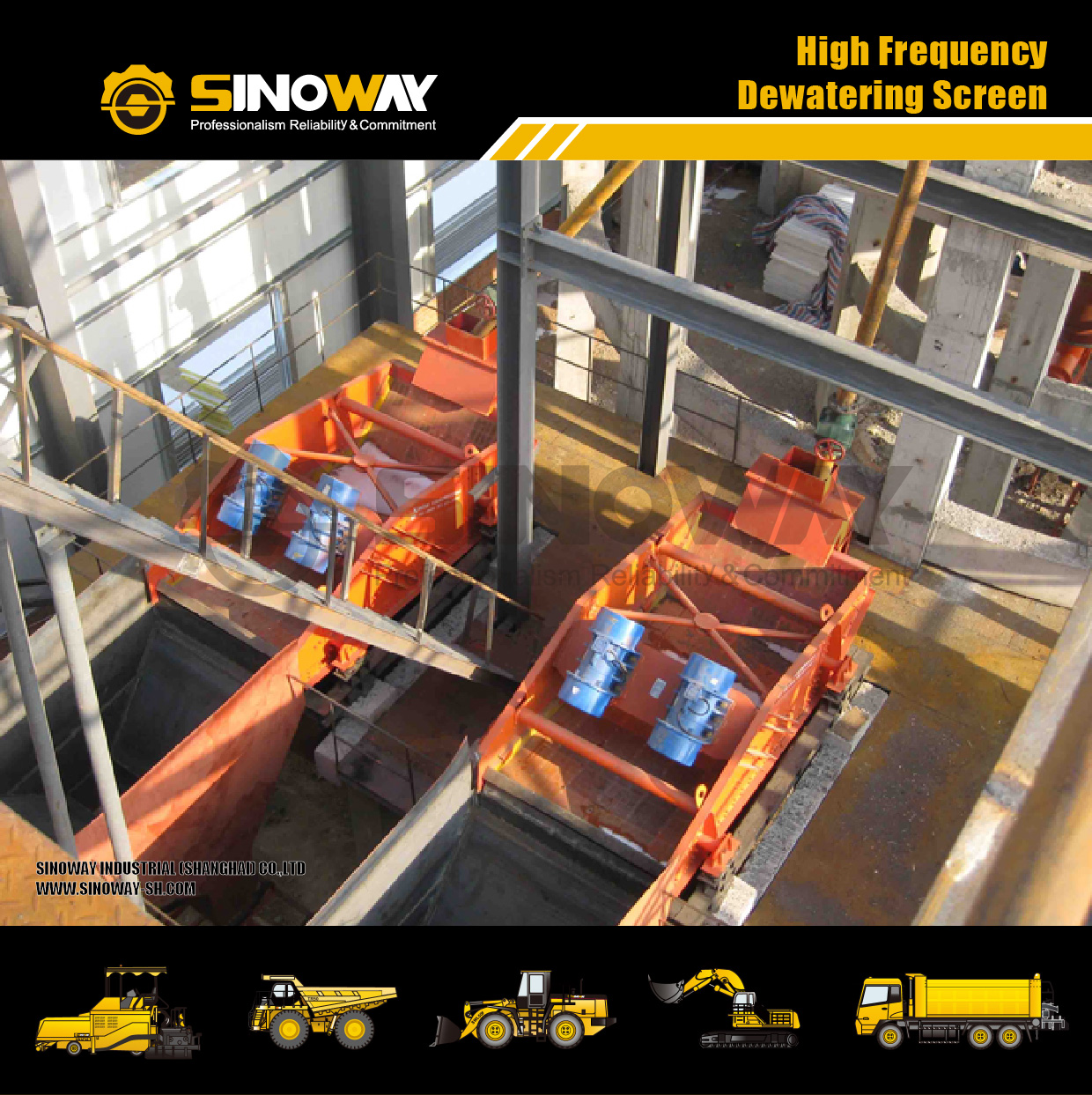

High Frequency Vibrating Screen Mineral Processing Equipment High
Frequency Dewatering Screen
High frequency dewatering screen is a kind of vibrating screen with
high frequency and high vibration intensity. It is mainly suitable
for the wet classification and solid-liquid separation of fine
material below 0.5mm. Widely used in filtration and dewatering
equipment industry such as beneficiation, environmental protection,
tailings dry row, concentrate dewatering, slurry concentration,
removal of debris, carbon slurry separation etc. This machine is
particularly suitable for processing fine minerals. In addition, it
can combine with hydrocyclone to be more efficient.
Features and technology advantages
1. Advanced structure, small size, low noise, high dehydration
efficiency
2. The screen using the polyurethane sieve plate has the advantages
of simple structure, convenient maintenance, durable.
3. High vibration intensity, high frequency of work, rely on the
sieve filter layer to retain the fine particles and the material
layer extrusion dehydration, the realization of ordinary vibrating
screen can not complete the work of large screen seam recycling
fine particles.
Working principle
High frequency dewatering screen adopts double vibration motor as
power supply. The two motors that rotate synchronously and
reversely and centrifugal force is produced by two groups of
eccentric block. This makes the screen body periodical to-and-fro
moving along the direction of straight line, which is for the
purpose of dehydration. The screen frame is connected by the
high-intensity bolts, so the structure is stable and durable.
Specification
| Model | Screen Deck Inclination | Mesh Size (Mm) | Capacity (T/H) | Power (Kw) | Weight (Kg) |
| GZS1036 | -5~-3° | 0.2~0.5 | 10~15 | 2×1.1 | 3800 |
| GZS1236 | -5~-3° | 0.2~0.5 | 18~65 | 2×2.2 | 4500 |
| GZS1536 | -5~-3° | 0.2~0.5 | 30~90 | 2×3.0 | 5700 |
| GZS1838 | -5~-3° | 0.2~0.5 | 40~120 | 2×7.5 | 6600 |
| GZS2138 | -3~-0° | 0.2~0.5 | 60~150 | 2×7.5 | 8200 |
| GZS2538 | -3~-0° | 0.2~0.5 | 80~200 | 2×11 | 11000 |
