3 Axle Low Bed Semi Trailer With 50 Ton Capacity

    Buy cheap 3 Axle Low Bed Semi Trailer With 50 Ton Capacity from wholesalers

    Buy cheap 3 Axle Low Bed Semi Trailer With 50 Ton Capacity from wholesalers
    • Buy cheap 3 Axle Low Bed Semi Trailer With 50 Ton Capacity from wholesalers

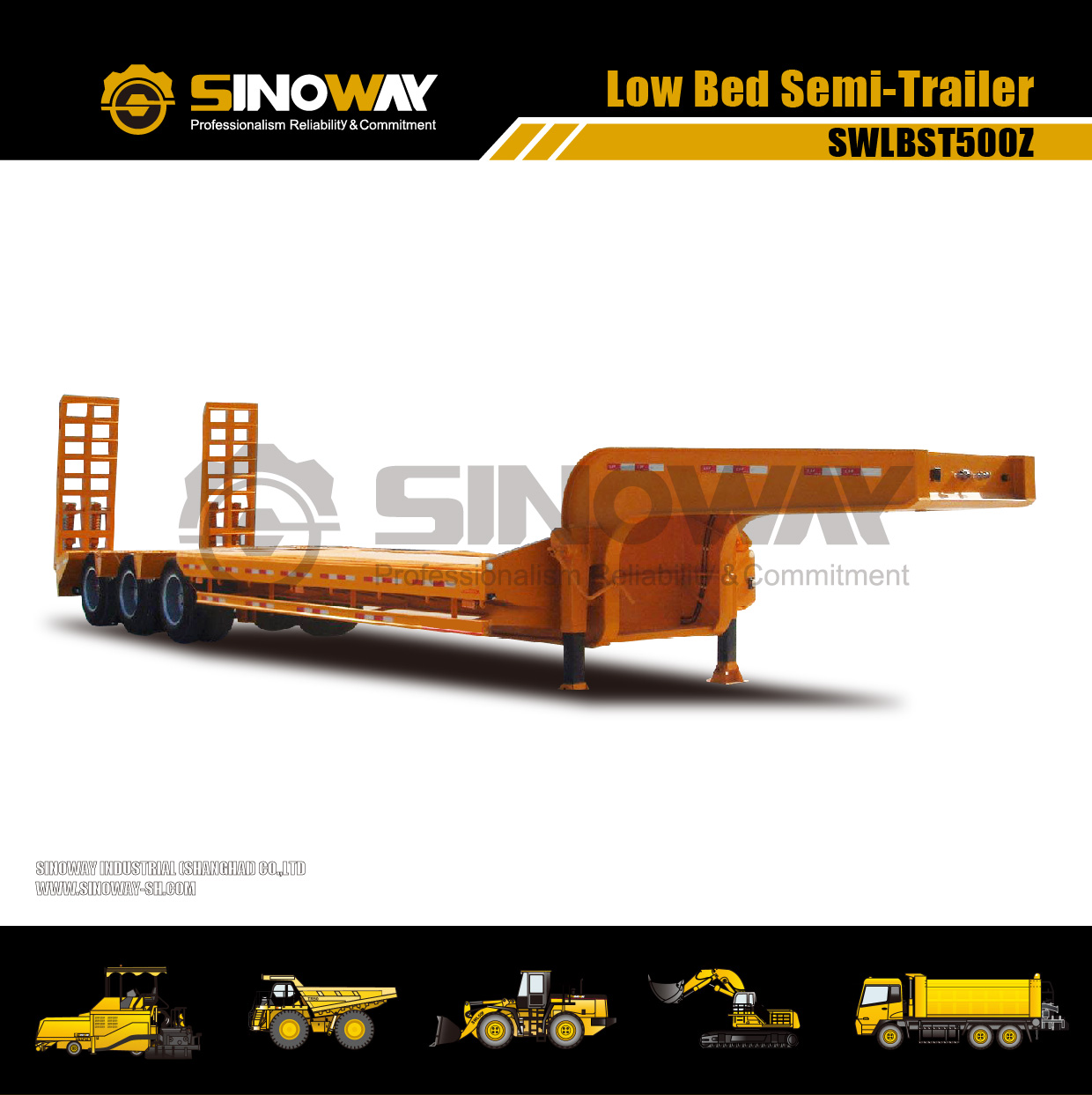

    3 Axle Low Bed Semi Trailer With 50 Ton Capacity

    Ask Lasest Price
    Brand Name : Sinoway
    Model Number : SWBST500Z
    Certification : ISO9001
    Price : Negotiation
    Payment Terms : D/A, L/C, D/P, T/T, Western Union
    Supply Ability : 1000 pcs per month
    Delivery Time : 30 days
    • Product Details
    • Company Profile

    3 Axle Low Bed Semi Trailer With 50 Ton Capacity

    Semi Trailer Features:
    Apply to the transport loose cargo light, soft, with a low center of gravity and light weight, the quality of the utilization factor, carrying capacity and other characteristics
    Overall assembly and disassembly convenient, can be more than one car, van, car warehouse gate, tailgate car at the same time.
    Innovative design, tailored to local transport environment analysis on the basis of full understanding of, learn from the advanced design concept, many innovative.
    Advanced means of production technology and perfect testing equipment to protect the the product overall structure is reasonable, reliable performance.
    Frame body Q345B high strength structure steel, automatic submerged arc welding throughout beams, and other cross-section main stringers structure for optimum carrying effect.
    Well-known brand axles, suspension systems, high performance, and reliable to use, to ensure the good performance of the vehicle.
    Full braking and electrical systems at home and abroad in accordance with ISO standard, optional ABS system, braking, lighting is absolutely safe and reliable.
    Frame overall spray primer treatment, paint spraying fine surface quality of maritime anti-corrosion standards.

    Main Technical specification
    Overall size13000×3000×3100 mm
    Axle3x13t, without ABS
    Tyre1200R20
    Rim8.5-20
    Leaf spring90mm width×10 pieces×13mm thickness
    Braking system2 line air braking system with air tank,
    WABCO emergency relay valve,braking chambers and mechanical slack adjusters.
    Electrical system24 volt electrical system.LED lights, 7 pin electrical connector.parking .stop,reverse,
    number plate and indicator lights.rear lights conform to European standard,rear front and side reflectors
    Relay valveWABCO emergency relay valve
    SuspensionReinforced type
    Landing gearJOST A400, one sides operation
    Kingpin 3.5""JOST bolted type, 90#, KZ1412
    ChamberT30/30 on all axle
    Floor6mm checkered type
    Upper and lower wing plates25/25mm, width 200mm,using the highly quality Q345 steel
    Main beam550mm, webplate: 10mm, using the highly quality Q345 steel
    Side beam294# steel,with Rotating stents
    Cross beam12# channel steel
    RampHeavy duty, width: 800mm, double spring reinforced type, length depends on the drawing
    Shotblasting and paintChassis is completely shot blasted to SA 2.5 grade, and painted with first layer of international Zinc Epoxy
    primer(30 Microns DEF),second layer international high built polyurethane under coat(40 microns DFT),
    third and forth layers international alkyd finish top coat. Total 80-100 microns. high quality painting, whole trailer wax
    Tool boxStandard
    Spare tyre carrierAccording to our design
    Payload50 Metric ton
