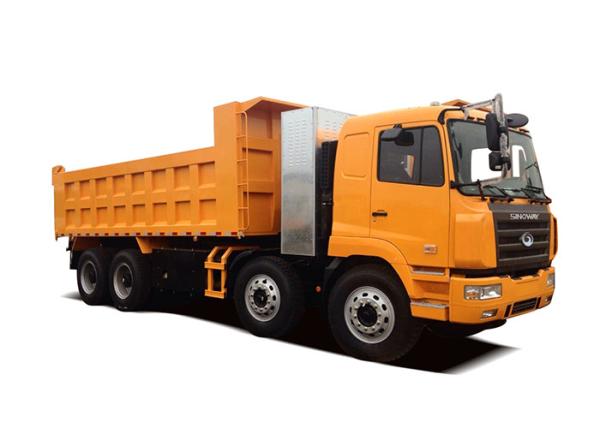

Heavy Duty Construction Dump Truck , 8x4 Dump Tipper Truck CNG Tank 351~450 hp

    Buy cheap Heavy Duty Construction Dump Truck , 8x4 Dump Tipper Truck CNG Tank 351~450 hp from wholesalers

    Buy cheap Heavy Duty Construction Dump Truck , 8x4 Dump Tipper Truck CNG Tank 351~450 hp from wholesalers
    • Buy cheap Heavy Duty Construction Dump Truck , 8x4 Dump Tipper Truck CNG Tank 351~450 hp from wholesalers

    Heavy Duty Construction Dump Truck , 8x4 Dump Tipper Truck CNG Tank 351~450 hp

    Ask Lasest Price
    Brand Name : SINOWAY
    Model Number : SWDT38084HLT
    Certification : ISO9001
    Price : Negotiation
    Payment Terms : L/C, D/A, D/P, T/T, Western Union
    Supply Ability : 50 units per month
    Delivery Time : 30 days
    • Product Details
    • Company Profile

    Heavy Duty Construction Dump Truck , 8x4 Dump Tipper Truck CNG Tank 351~450 hp

    CNG Tank 351~450hp Horsepower 8x4 Heavy Duty Dump/Tipper Truck For Sale Construction Dump Truck


    Engine
    MakeWP12NG380E40
    TypeSix-cylinder,in line, water cool,turbocharged intercooling
    Rated power280kw
    Rated speed2200rpm
    Max. Torque1500N.m/1400-1600rpm
    Main Technical Specification
    Curb Weight16000kg
    Payload capacity30000kg
    Axle loading capacity(F/R)2×7500/2×16000kg
    Max. traveling speed80km/h
    Grade ability30%
    Approach angle25°
    Departure angle24°
    Fuel consumption35L/100km
    Fuel tank capacity320L
    CNG tank capacity4×200L behind the cabin/4×80L beside the chassis
    Dimensions
    Overall size(L×W×H)10500× 2500×3450mm
    Wheel base1940+3860+1450mm
    Tread2065/1860/1860/1860mm
    Min. ground clearance255mm
    Transmission System
    ZF16S1950 with synchronizer 16 forward & 2 reverse
    Ratio
    Forward15.387,13.054,10.574,8.999,6.957,
    5.920,4.583,3.900,3.357,2.875,2.307,
    1.963,1.518,1.292,1.000,0.851
    Reverse12.440,10.587
    Dump Body
    Overall length6500mm
    Overall width2300mm
    Overall height1300mm
    Side plate thickness6mm
    Under floor thickness8mm
    HoistHVYA front lifting
    Steering System
    Hydraulic steering with power assistance
    Driving positionLeft hand drive
    Axle And Tyre
    Front axleStub axle with double T-cross sectio Capacity: 7500kg
    Rear axleHub reduction and final drive Capacity: 16000kg
    Rear axle ratio5.263
    Tyre size12R22.5
    Electric System
    Batteries2*12 Volt – 150 AH*2
    Alternator24 Volt/70A
    Starter24 Volt/7.80kw
    Clutch And Brake
    Single-plate dry coil-spring clutch, hydraulically operated with air assistance
    Service brakeDual circuit compressed air brake
    Parking brakeSpring energy operating on rear wheels
    Auxiliary brakeEngine exhaust brake
    Suspension
    Front suspension9 semi-elliptic leaf spring
    Rear suspension12 semi-elliptic leaf spring
