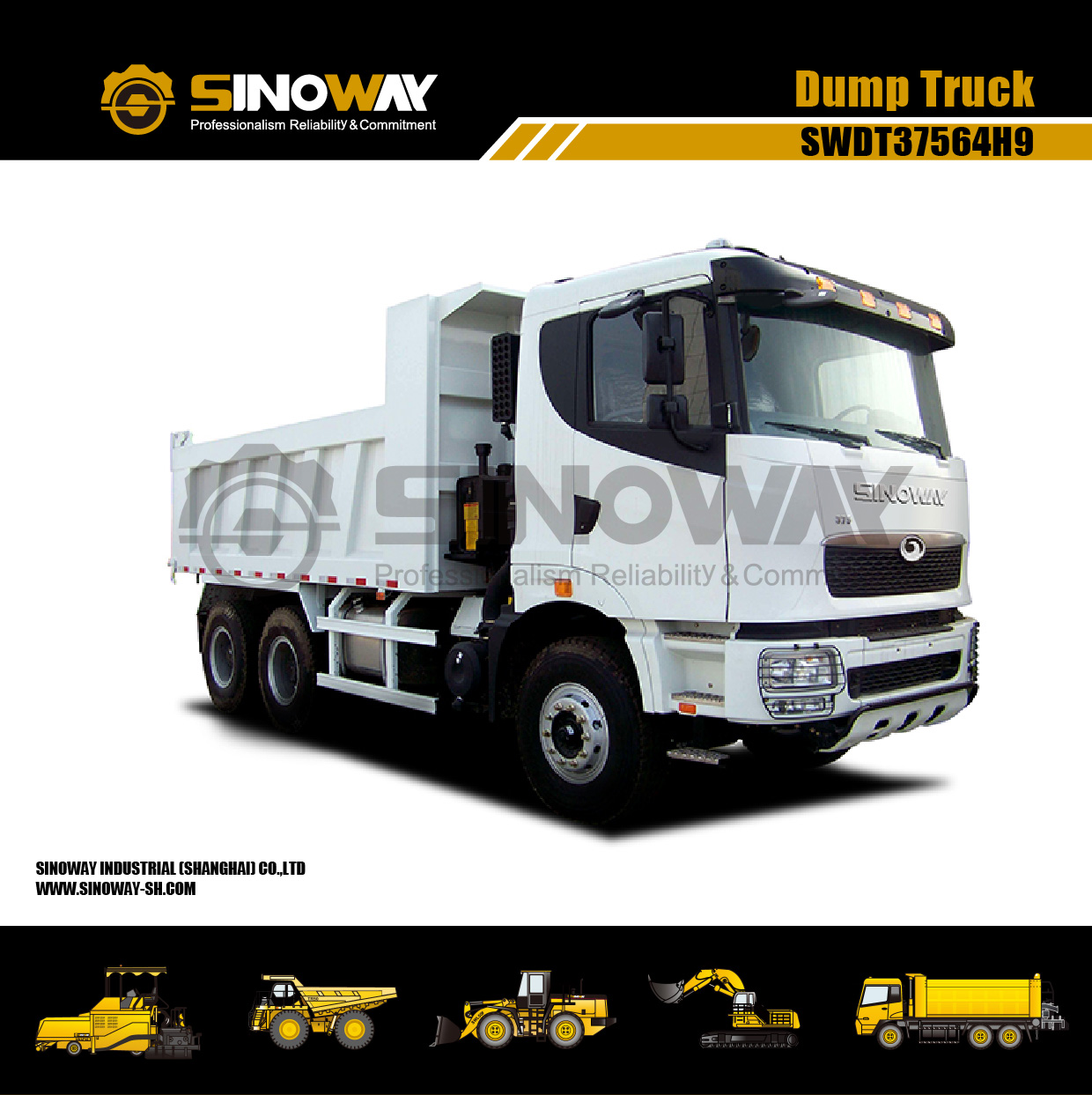

    Big Construction Trucks 30 Ton Payload Capacity ZF Tech Transmission

    Ask Lasest Price
    Brand Name : SINOWAY
    Model Number : SWDT37564H9
    Certification : ISO9001
    Price : Negotiation
    Payment Terms : L/C, D/A, D/P, T/T, Western Union
    Supply Ability : 50 units per month
    Delivery Time : 30 days
    • Product Details
    • Company Profile

    Big Construction Trucks 30 Ton Payload Capacity ZF Tech Transmission

    30ton Payload capacity 375hp Horsepower Construction Dump Truck ZF tech transmission with synchronizer and servo


    Engine
    MakeSINOWAY SW6D18.375
    TypeMechanical, 6 cylinder,water-cooled
    turbocharged,direct-injection
    Rated power276KW/1900rpm
    Main Technical Specification
    Curb Weight13000Kg
    Max. payload capacity30000Kg
    Axle loading capacity(F/R)7500/2×16000Kg
    Max. traveling speed72km/h
    Grade ability30%
    Approach angle25°
    Departure angle24°
    Fuel consumption<38L/100km
    Fuel tank capacity320L
    Dimensions
    Overall size(L×W×H)8720×2500×3560mm
    Wheel base3900+1450mm
    Front overhang1512mm
    Rear overhang1895mm
    Transmission System

    ZF tech transmission,mechanical with synchronizer and servo



    Ratio
    Forward13.22, 10.54, 7.37, 5.21, 3.47, 2.16,
    1.54, 1.00
    Reverse14.26
    Dump Body
    Overall length5600mm
    Overall width2300mm
    Overall height1550mm
    Side plate thickness6mm
    Under floor thickness8mm
    HoistHVYA front lifting
    Steering System
    Hydraulic steering with power assistance
    Driving positionLeft hand drive
    Axle And Tyre
    Front axleReinforced
    Rear axleReinforced
    Rear axle ratio5.263
    Tyre size12.00R20
    Electric System
    Batteries2*12 Volt – 150 AH*2
    Alternator24 Volt/70A
    Starter24 Volt/7.80kw
    Clutch And Brake

    Single-plate dry coil-spring clutch, hydraulically operated with air assistance



    Service brakeDual circuit compressed air brake
    Parking brakeSpring energy operating on rear wheels
    Auxiliary brakeEngine exhaust brake
    Suspension
    Front suspension9 semi-elliptic leaf spring
    Rear suspension12 semi-elliptic leaf spring
