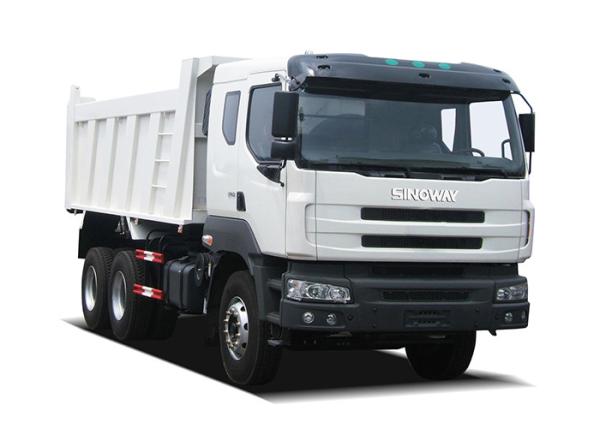

Heavy Duty Construction Dump Truck FULLER Transmission System 340hp Horsepower

    Buy cheap Heavy Duty Construction Dump Truck FULLER Transmission System 340hp Horsepower from wholesalers

    Buy cheap Heavy Duty Construction Dump Truck FULLER Transmission System 340hp Horsepower from wholesalers
    • Buy cheap Heavy Duty Construction Dump Truck FULLER Transmission System 340hp Horsepower from wholesalers

    Heavy Duty Construction Dump Truck FULLER Transmission System 340hp Horsepower

    Ask Lasest Price
    Brand Name : SINOWAY
    Model Number : SWDT34064YF
    Certification : ISO9001
    Price : Negotiation
    Payment Terms : L/C, D/A, D/P, T/T, Western Union
    Supply Ability : 50 units per month
    Delivery Time : 30 days
    • Product Details
    • Company Profile

    Heavy Duty Construction Dump Truck FULLER Transmission System 340hp Horsepower

    FULLER tech. Transmission System 340hp HorsepowerHeavy Duty Dump/Tipper Truck Construction Dump Truck


    Engine
    MakeYUCHAI
    TypeSix cylinder,direct injection turbocharged,water cooled
    Rated power250KW
    Torque2200rpm
    Main Technical Specification
    Curb Weight13000Kg
    Payload capacity25500Kg
    G.V.W38500Kg
    Axle loading capacity(F/R)6500/2×16000Kg
    Max. traveling speed85km/h
    Grade ability48%
    Approach angle25°
    Departure angle24°
    Fuel consumption<38L/100km
    Fuel tank capacity350L
    Dimensions
    Overall size(L×W×H)8807×2530×3400mm
    Wheel base3800+1450mm
    Front overhang1512mm
    Rear overhang1895mm
    Transmission System

    FULLER tech. 10GSD160 with synchronizer 10 forward & 2 reverse



    Ratio
    Forward14.86, 11.02 , 8.07, 6.02, 4.46, 3.33, 2.47, 1.81, 1.35, 1.00
    Reverse14.24, 3.19
    Dump Body
    Overall length5600mm
    Overall width2300mm
    Overall height1250mm
    Side plate thickness4mm
    Under floor thickness5mm
    HoistMiddle lifting
    Steering System
    Driving positionLeft hand drive
    Axle And Tyre
    Front axleReinforced
    Rear axleReinforced
    Rear axle ratio5.92
    Tyre size12R22.5
    Electric System
    Batteries2*12 Volt – 150 AH*2
    Alternator24 Volt/70A
    Starter24 Volt/7.80kw
    Clutch And Brake
    Single-plate dry coil-spring clutch, hydraulically operated with air assistance
    Service brakeDual circuit compressed air brake
    Parking brakeSpring energy operating on rear wheels
    Auxiliary brakeEngine exhaust brake
    Suspension
    Front suspension9 semi-elliptic leaf spring
    Rear suspension12 semi-elliptic leaf spring
