6x4 Drive Type 316KW / 430HP Power Truck Tractor With BENZ Tech AVL Developed

    Buy cheap 6x4 Drive Type 316KW / 430HP Power Truck Tractor With BENZ Tech AVL Developed from wholesalers

    Buy cheap 6x4 Drive Type 316KW / 430HP Power Truck Tractor With BENZ Tech AVL Developed from wholesalers
    • Buy cheap 6x4 Drive Type 316KW / 430HP Power Truck Tractor With BENZ Tech AVL Developed from wholesalers

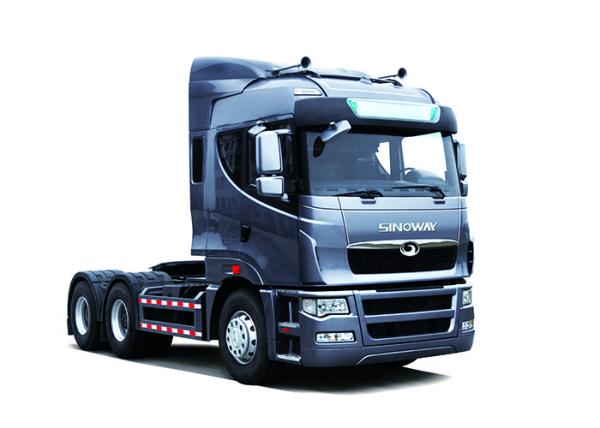

    6x4 Drive Type 316KW / 430HP Power Truck Tractor With BENZ Tech AVL Developed

    Ask Lasest Price
    Brand Name : SINOWAY
    Model Number : SWTT43064HHS2
    Certification : ISO9001
    Price : Negotiation
    Payment Terms : L/C, D/A, D/P, T/T, Western Union
    Supply Ability : 50 units per month
    Delivery Time : 30 days
    • Product Details
    • Company Profile

    6x4 Drive Type 316KW / 430HP Power Truck Tractor With BENZ Tech AVL Developed

    6x4 Drive Type 316KW/430HP Power Truck Tractor With BENZ Tech AVL developed Construction Dump Truck


    Engine
    ModelSW12E430
    DescriptionBENZ tech, AVL developed,
    mechanical type, diesel fuel
    TypeInline, six-cylinder, four-valve,
    water-cooled wet cylinder liners,
    turbocharged and intercooled
    Rated power316kw/1900rpm
    Max. torque1800 N.m/1300rpm
    Displacement11.86 L
    Main Technical Specification
    Kerb weight9800kg
    Peak traction capacity90000kg
    Max.traveling speed110km/h
    Min. turning radius7000mm
    Grade ability30%
    Min.ground clearance320mm
    Approach angle19°
    Departure angle45°
    Fuel tank capacity650L
    The fifth wheelJOST 3.5"
    Fuel consumption34L/100km
    Dimensions
    Overall size(L×W×H)7140×2500(2980)×3950mm
    Wheel base3400+1350mm
    Tread(F/R)2065/1860mm
    Overhang(F/R)1550/840mm
    Axle And Tyre
    Front axle capacity7.5 ton
    Front axle typeDisk
    Rear axle capacity2×13 ton
    Rear axle typeDrum
    Ratio4.11
    Tyre size12R22.5
    Steering System
    Driving positionLeft hand drive
    TypeHITACHI or equivalent
    Transmission System
    TypeZF tech mechanical
    transmission with synchronizer
    1st (L/S)15.20/11.60
    2nd10.40/8.00
    3rd7.46/5.73
    4th5.31/4.07
    5th3.72/2.86
    6th2.56/1.96
    7th1.83/1.41
    8th1.30/1.00
    Reverse12.30/9.41
    Clutch And Brake
    ClutchGerman SACHS
    ABSGerman KNORR/WABCO or equivalent
    Service brakeFoot operated compressed air
    braking system,two circuits,front/rear distribution
    Parking brakeHand operated
    spring brake system,
    brake force applies on the rear axle
    Emergency brakeTwo circuits,
    front/rear distribution
    Electric System
    Batteries24 Volt/165Ah
    System voltage24V
    Suspension
    Front suspensionTapered leaf spring 4
    semi-elliptic leaf spring
    Rear suspensionTapered leaf spring 9+6
    semi-elliptic leaf spring
