20000 L Construction Dump Truck 6x4 Water Bowser 170 hp Rated Power

    Buy cheap 20000 L Construction Dump Truck 6x4 Water Bowser 170 hp Rated Power from wholesalers

    Buy cheap 20000 L Construction Dump Truck 6x4 Water Bowser 170 hp Rated Power from wholesalers
    • Buy cheap 20000 L Construction Dump Truck 6x4 Water Bowser 170 hp Rated Power from wholesalers

    20000 L Construction Dump Truck 6x4 Water Bowser 170 hp Rated Power

    Ask Lasest Price
    Brand Name : SINOWAY
    Model Number : SW1108GY
    Certification : ISO9001
    Price : Negotiation
    Payment Terms : L/C, D/A, D/P, T/T, Western Union
    Supply Ability : 100 units per month
    Delivery Time : 30 days
    • Product Details
    • Company Profile

    20000 L Construction Dump Truck 6x4 Water Bowser 170 hp Rated Power

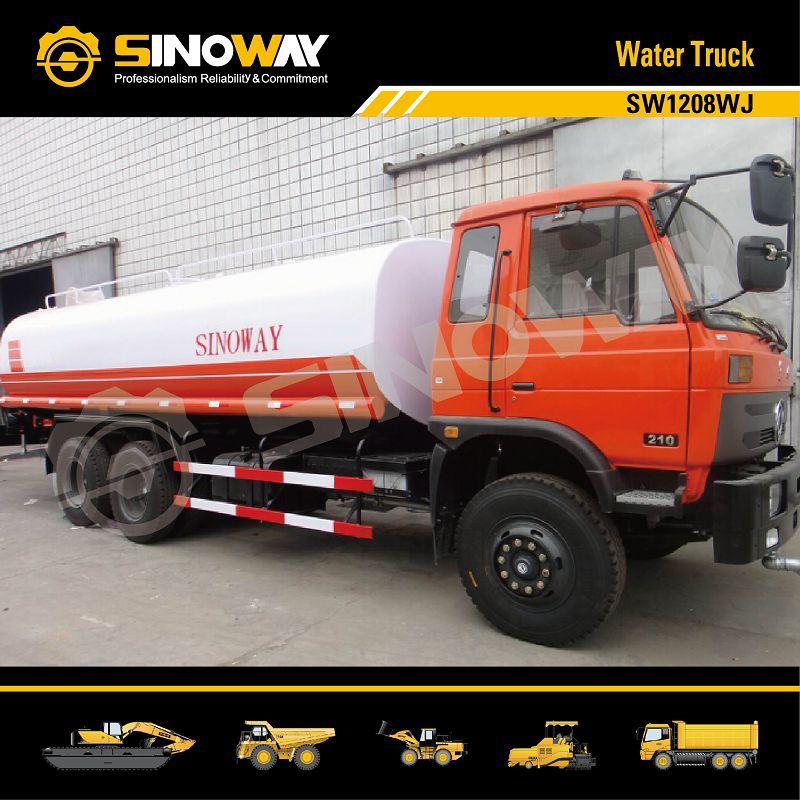

    Construction Water Tanker

    Water truck is a motor vehicle designed to carry liquefied loads on roads. The largestsuch vehicles are similar to railroad tank cars which are also designed to carry liquefied loads. Many variantsexist due to the wide variety of liquids that can be transported.

    Sinoway supply the water truck with tank capacity range from 1,000L to 30,000L. Sinoway serial water truck is equipment with Anti-corrosion water tank, water-suck pump, rear work platform and Cummins engine.


    Engine
    ModelCummins
    TypeSix cylinder, water-cooled, turbocharged, mechanical injection
    Rated power155kw
    Rated speed2200rpm
    Main Technical Specification
    N.V.W9780kg
    Pay-loading capacity20000kg
    G.V.W30000kg
    Axle loading capacity (F/R)8000/2x13000kg
    Max. travelling speed85km/h
    Min. turning diameter18m
    Grade ability45%
    Approach angle28°
    Departure angle14°
    Fuel consumption23L/100km
    Ground clearance250mm
    Dimensions
    Overall size (L x W x H)9950 x 2490 x 3250mm
    Wheel base4350 + 1300mm
    Tread (F/R)1940/1860mm
    Transmission System
    6 forward & 1 reverse
    Ratio
    Forward7.45, 4.83, 3.08, 1.98, 1.48, 1.00
    Reverse6.71
    Water Tank
    Tank capacity18000L
    Tank overall size (L x W x H)6980 x 2300 x 1500mm
    Sprinkling width14000mm
    Pump suction lift7000mm
    Water flow rate90m³/h
    Equipped with rear working platform and water cannon
    Steering System
    Hydraulic steering with power assistance
    Ratio22.2 - 26.2
    Axle And Tire
    Front axleRigid stub axle with double T-cross section
    Rear axleReinforced
    Tyre size10.00-20
    Clutch And Brake
    Single-plate dry coil-spring clutch, hydraulically operated with air assistance
    Service brakeDual circuit compressed air brake
    Parking brakeSpring energy operating on rear wheels
    Electric System
    Negative grounded
    System voltage24V
    Batteries24V/165Ah
    Cab
    Flat head type, new inside decoration, no sleeper, no air conditioner
    Optional
    Radial type
    Air conditioner
    Right hand drive
