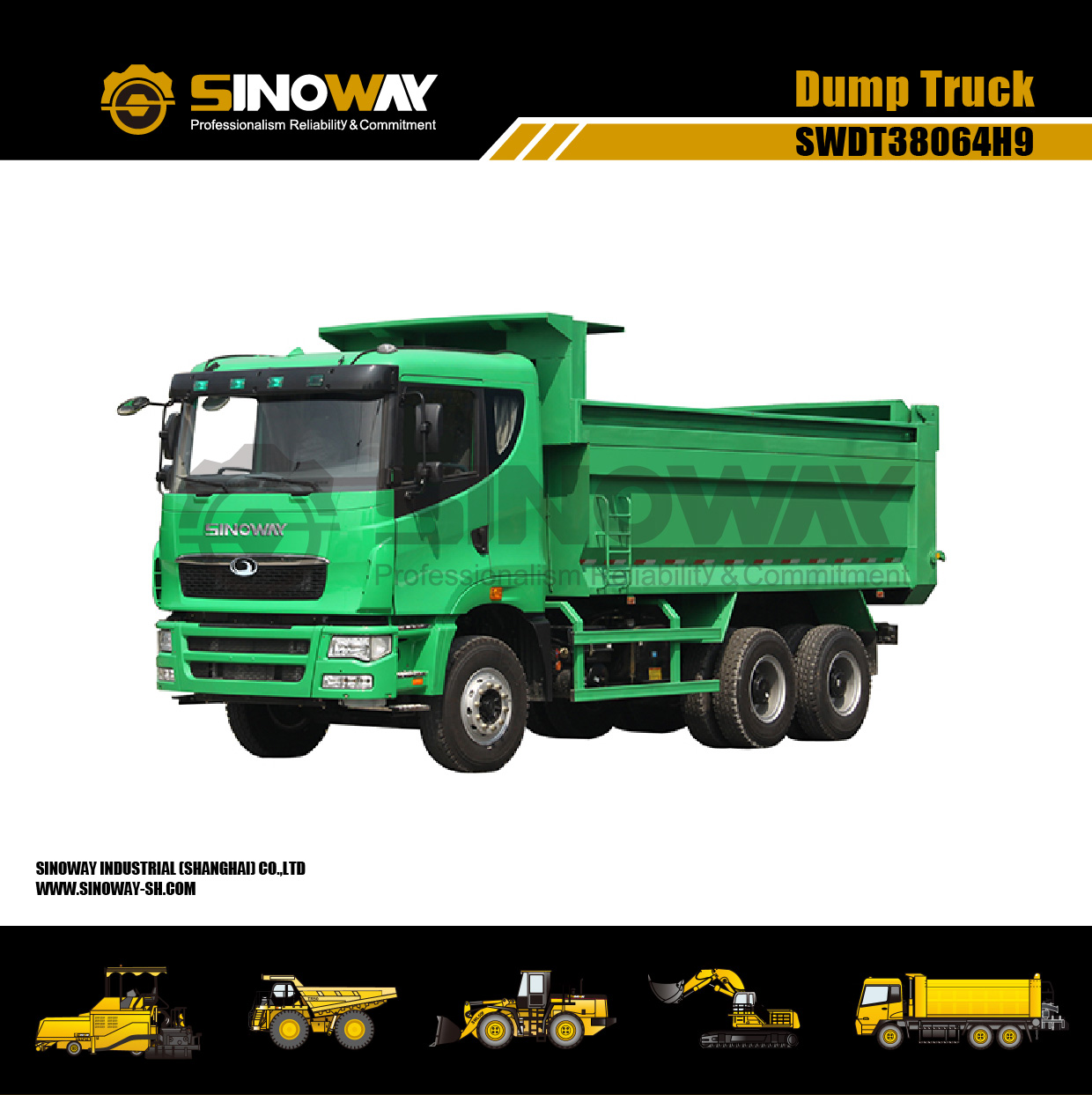

    SWDT38064H9 Heavy Dump Truck ZF Transmission System 6x4 279KW Rated Power

    Ask Lasest Price
    Brand Name : SINOWAY
    Model Number : SWDT38064H9
    Certification : ISO9001
    Price : Negotiation
    Payment Terms : L/C, D/A, D/P, T/T, Western Union
    Supply Ability : 50 units per month
    Delivery Time : 30 days
    • Product Details
    • Company Profile

    SWDT38064H9 Heavy Dump Truck ZF Transmission System 6x4 279KW Rated Power

    6x4 279KW Rated Power Heavy Dump Truck Construction Dump Truck Tipper With ZF Transmission System


    Engine
    ModelSW6D28.380 (AVL developed)
    TypeSix cylinder,four-stroke,water-cooled, in-line,dry-liner,direct-injection,turbo charged
    Controller typeElectronic
    Air cleanerDry paper element
    Rated power279KW
    Rated speed1900rpm
    Max. torque1800 N.m / 1100-1500 rpm
    Bore × stroke128*153 mm
    Displacement11.8 L
    Main Technical Specification
    Curb Weight14500Kg
    Payload capacity20000Kg
    GVW34500Kg
    Max. traveling speed85km/h
    Grade ability30%
    Approach angle25°
    Departure angle24°
    Fuel tank capacity320L
    Dimensions
    Overall size(L×W×H)8470×2500×3600mm
    Wheel base3600+1350mm
    Tread2065/1860mm
    Overhang(L/R)1550/1970mm
    Min.ground clearance285mm
    Transmission System
    ZF 9S1820 Mechanical (synchronizer)
    Ratio
    Forward15.16, 11.26, 7.9, 5.67, 4.07, 2.76, 1.94, 1.39, 1.00
    Reverse12.26
    Dump Body
    Overall length5400mm
    Overall width2300mm
    Overall height1500mm
    Side plate thickness6mm
    Under floor thickness8mm
    HoistHYVA front lifting
    Steering System
    Hydraulic steering with power assistance
    Driving positionLeft hand drive
    Axle And Tyre
    Front axleStub axle with double T-cross section(7500kg)
    Rear axleSingle reduction with hub reduction ( 2×13500kg)
    Rear axle ratio5.73
    Tyre size12.00R20
    Electric System
    Batteries2*12 Volt – 150 AH*2
    Alternator24 Volt/70A
    Starter24 Volt/7.80kw
    Clutch And Brake
    Single-plate dry coil-spring clutch, hydraulically operated with air assistance
    Service brakeDual circuit compressed air brake
    Parking brakeSpring energy operating on rear wheels
    Auxiliary brakeEngine exhaust brake
    Suspension
    Front suspension9 semi-elliptic leaf spring
    Rear suspension12 semi-elliptic leaf spring
