95-130mm Track Wagon Drill Rock Drill

    Buy cheap 95-130mm Track Wagon Drill Rock Drill from wholesalers

    Buy cheap 95-130mm Track Wagon Drill Rock Drill from wholesalers
    • Buy cheap 95-130mm Track Wagon Drill Rock Drill from wholesalers

    95-130mm Track Wagon Drill Rock Drill

    Ask Lasest Price
    Brand Name : SINOWAY
    Model Number : SWDHD726
    Certification : ISO9001
    Price : Negotiation
    Payment Terms : L/C, D/A, D/P, T/T, Western Union
    Supply Ability : 50 units per month
    Delivery Time : 30 days
    • Product Details
    • Company Profile

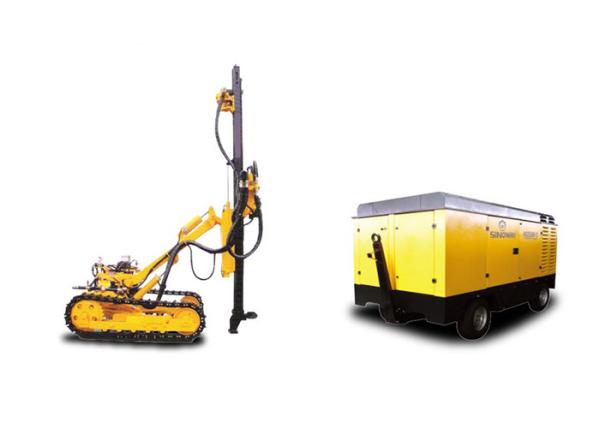

    95-130mm Track Wagon Drill Rock Drill

    Sinoway Industrial (Shanghai) Co., Ltd is a top package equipment solution provider in China especially for vehicle, construction machinery and mining equipment. As a professional procurement and supply chain service provider, we are always committed to offer our respectable customer high quality products with reliable performance, competitive price and sincere services ensuring every engineering project to be run smoothly and on schedule. With over 20 years' experience in the field of engineering industry and accompanying to fulfill strictly ISO 9001:2008 standard, Sinoway is ready to provide products and services to our clients with professionalism, reliability and commitment. As a professional procurement and supply chain service provider for construction machinery, vehicles and mining equipment, we had established and have been consistently keeping good business relationship with many world famous general contractors like Vinci Construction, China State Construction Engineering Corporation, Enka Group and, as well as many local civil engineering & building companies throughout the world. The bigger projects in which we participated as package equipment provider previously are including the airport project in Algeria, the power plant project in Indonesia, the dredging project in Nigeria, the national No.1 highway project in Congo, the biggest landfill plant project in Kuwait, the rural and municipal road project in Libya and, still we are achieving to offer our equipment and service to more and more projects at present.
    Main Features
    Sinoway wagon drill is your right choice for your blasting applications on quarry or mining sites. Currently, Sinoway is offering wagon drill which is driven through air compressor, the wagon drills are with down the hole hammers. The best matching of air compressor and wagon drill will offer most cost effective drilling operation, as well as great efficiency for you blasting works.
    Compressors for Sinoway wagon drill are mostly with GHH air end from Germany to ensure the service life, high quality hydraulics are introduce also in the wagon drill itself. Choose the right wagon drill for your project now, and we are not going to let you down
    Diesel engine, Energy saving, lower noise, less operation cost. Wide range of usage, easy for maintenance.Major component such as motor, control valve and filter from Germany and Japan.Large scope amplitude modulation capacity.
    Engine
    Compressor
    ModelCummins EQ6BTA
    TypeSix-cylinder, water cooled, turbocharged, mechanical injection
    Rated power118kw
    Rated speed2200rpm
    Main Technical Specification
    Tracked drilling Carriage
    Rock rigidityf=6 - 20
    Diameter of drill hole95 - 130mm
    Depth of drill hole25m
    Travelling speed3km/h
    Gradeability25°
    Rotation speed0 - 70rpm
    Working pressure0.7 - 1.6MPa
    Air consumption7 - 12m³/min.
    Compressor
    TypeScrew rotating one stage compression oil cooled
    Displacement10.2m³/min.
    Pressure1.3MPa
    Lubricating modeForced lubricating according to lubricating compression
    Drive modeCoupler direct
    Volume of lubricating oil105L
    Chassis
    Compressor
    Tyre size6.5-16
    Tyre pressure0.6MPa
    Tread1560mm
    Dimensions
    Tracked drilling Carriage
    Overall length4250mm
    Overall width1980mm
    Overall height2260mm
    Compressor
    Overall length3980mm
    Overall width1980mm
    Overall height2320mm
    Connector sizeR1.1/2"x1, R1"x2
    Max. working altitude3000m
    Weight
    Tracked drilling Carriage4500kg
    Compressor4200kg
    Main Features
    Tracked drilling Carriage
    Self-powered high efficiency, energy saving, lower noise, less operation cost, wide range of usage, easy for maintenance, major components such as motor / control valve made in Germany and Japan, large scope amplitude modulation capacity.
    Compressor
    Advanced microprocessor monitoring all changes for compressed air demand, lowering air consumption, motor / mounted roller / ball bearing made in Germany; advanced separator and filter insuring residual oil content less than 3ppm, aluminium radiator easy for cleaning, anti-high temperature pipe and connector prevent oil leakage.
