    Hydraulic Drilling Rig Equipment Surface Exploration Core Drilling Rig

    Ask Lasest Price
    Brand Name : SINOWAY
    Model Number : SWCDR200
    Certification : ISO9001
    Price : Negotiation
    Payment Terms : L/C, D/A, D/P, T/T, Western Union
    Supply Ability : 2000 units per year
    Delivery Time : 45 days
    • Product Details
    • Company Profile

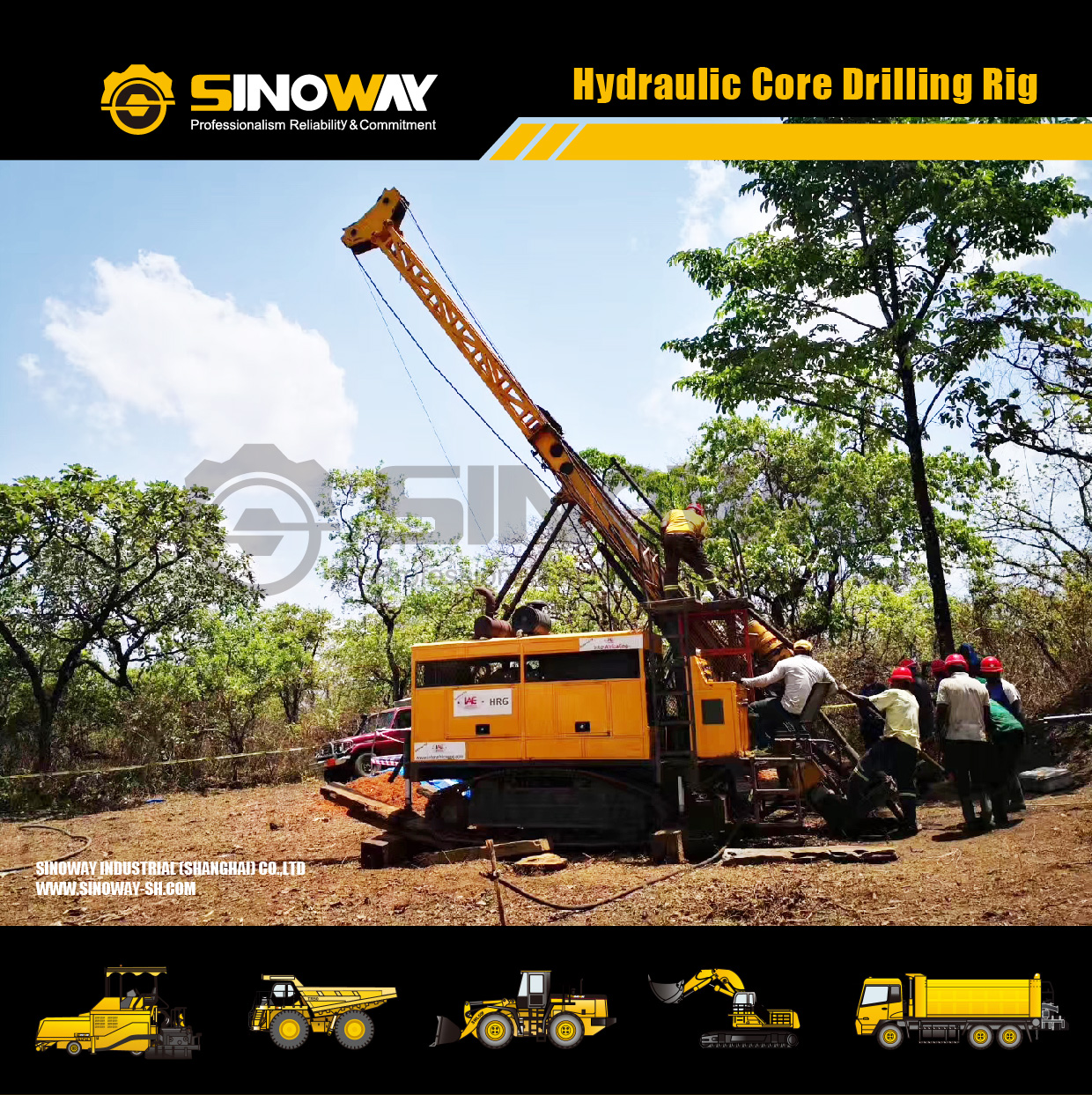

    Hydraulic Drilling Rig Equipment Surface Exploration Core Drilling Rig

    Hydraulic Drilling Rigs

    SWCDR200 full hydraulic power head core drilling rig is a light full hydraulic core drilling rig specially designed for complex terrain and inconvenient traffic areas. It is mainly suitable for diamond rope core drilling technology. The main engine includes diesel engine power drill, hydraulic system, control system, main hoist, rope core hoist, power head, feed system and wellhead gripper. All functions of SWCDR200 fully hydraulic surface coring rig are hydraulic driven. It has the characteristics of strong disassembly, light weight of disassembly parts, simple assembly, convenient operation, precise control, convenient removal and high efficiency of coring operation.

    Highlights

    With the hydraulic pressure system adopted threshold power control and negative flow control,the system acquired high efficiency and higher energy conservation.

    Using single rope winding, effectively solve the steel wire rope wear problem, improve the life of wire rope; And drill deep detection device is setted in main winding,single rope to make deep inspection more accurate.

    The standard centralized lubrication system, maintenance more convenient.

    Several drilling rod configurations with different specification are available for efficient construction on different layers.

    The detachable unit head drive key can provide easy maintenance and replacement.

    Hole depth
    BQ(Φ55.6mm equal to Φ2.19 inch )drill rod350 m(1148feet)
    NQ (Φ69.9mm equal to Φ2.75 inch) drill rod230 m (754feet)
    HQ (Φ88.9mm equal to Φ3.50 inch) drill rod120 m (394feet)
    Power
    ModelCUMMINS 4BTA3.9
    Rated Power74KW
    Rated Speed2200rpm
    Drill head
    Max. Spindle speed0 to 900r/min
    Max. Spindle torque334-930 N·m (246-685 lbf·ft)
    Feeding system (feed with hydraulic cylinder)
    Feeding stroke1700mm (67inch)
    Lifting Capacity50KN (11240 lbf)
    Feeding Capacity25KN (5620 lbf)
    Main Hoist
    Lifting Capacity (single-wire, bare drum)18KN (4046 lbf)
    Lifting Speed84m/min (276feet/min)
    Rope Capacity30m(98.4feet)
    Steel Wire dia.12mm(0.47inch)
    Wire line Winch
    Lifting Capacity(single-wire,bare drum)8.4KN (1888 lbf)
    Lifting Speed90-240m/min(295-787feet/min)
    Rope Capacity500m(1640feet)
    Steel Wire dia.6mm(0.24inch)
    Mud Pump
    ModelBW-100A
    Overall Dimension3500×1500×1300 mm
