Commercial Cement Mixer ISUZU Chassis 49m Concrete Boom Truck Mounted

    Buy cheap Commercial Cement Mixer ISUZU Chassis 49m Concrete Boom Truck Mounted from wholesalers

    Buy cheap Commercial Cement Mixer ISUZU Chassis 49m Concrete Boom Truck Mounted from wholesalers
    • Buy cheap Commercial Cement Mixer ISUZU Chassis 49m Concrete Boom Truck Mounted from wholesalers
    • Buy cheap Commercial Cement Mixer ISUZU Chassis 49m Concrete Boom Truck Mounted from wholesalers

    Commercial Cement Mixer ISUZU Chassis 49m Concrete Boom Truck Mounted

    Ask Lasest Price
    Brand Name : SINOWAY
    Model Number : SWTCP49I
    Certification : ISO9001
    Price : Negotiation
    Payment Terms : L/C, D/A, D/P, T/T, Western Union
    Supply Ability : 50 units per month
    Delivery Time : 30 days
    • Product Details
    • Company Profile

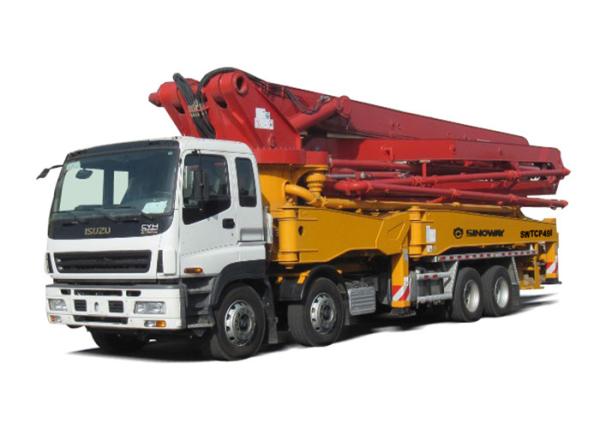

    Commercial Cement Mixer ISUZU Chassis 49m Concrete Boom Truck Mounted

    New Concrete Pump Truck ISUZU Chassis 49m Concrete Boom Truck Mounted


    Pumping System
    Output in theory150m³/h
    Max. pumping pressure9.0MPa
    Hopper capacity550L
    Feeding height1450mm
    Distributing valveS pipe valve
    Rated work pressure36Mpa
    Pumping frequency22min-1
    Chassis And Whole Vehicle
    Max. travelling speed89km/h
    Drive model8×4
    Engine modelIsuzu engine
    Rated power287kw
    Rated speed1800rpm
    Max. torque1863N.m/1100rpm
    Displacement14.256L
    Curb weight39000kg
    Wheel base
    Axle1, Axle21850mm
    Axle2, Axle34605mm
    Axle3, Axle41310mm
    Boom
    Max. distributing radius45.5m
    Max. distributing height48.6m
    Max. distributing depth37.8m
    Height of boom when stretched12800mm
    Distance between front landing legs9316mm
    Distance between rear landing legs10364mm
    Distance between front and rear landing legs10273mm
    Delivery pipe diameter125mm
    Tail hose length3000mm
    Rotary angle of boom365°
    Boom section5
    Rotary angle of each boom section90/180/180/225/212°
    Boom length9700/7910/7985/9460/9460mm
    Main Components
    Arm support pumpGermany REXROTH
    Oil pumpGermany REXROTH
    Balance valveGermany HAWE
    Solenoid valveUSA EATON
    Hydraulic valveUSA EATON
    Sealing elementUSA PARKER
    ConnectorGermany EMB
    HoseItaly MANULI
    Proportional multiway valveGermany HAWE
    Wireless romote-control deviceGermany HBC
    Dimension
    Overall length13720mm
    Overall width2495mm
    Overall height3990mm
    Service Capacities
    Fuel tank400L
    Water tank600L
    Hydraulic tank600L

    Quality Commercial Cement Mixer ISUZU Chassis 49m Concrete Boom Truck Mounted for sale
