    Large Concrete Mixer Machine 338KW/460HP Rated Power 8x4 Drive Model 49m

    Ask Lasest Price
    Brand Name : SINOWAY
    Model Number : SWTCP49H
    Certification : ISO9001
    Price : Negotiation
    Payment Terms : L/C, D/A, D/P, T/T, Western Union
    Supply Ability : 50 units per month
    Delivery Time : 30 days
    • Product Details
    • Company Profile

    Large Concrete Mixer Machine 338KW/460HP Rated Power 8x4 Drive Model 49m

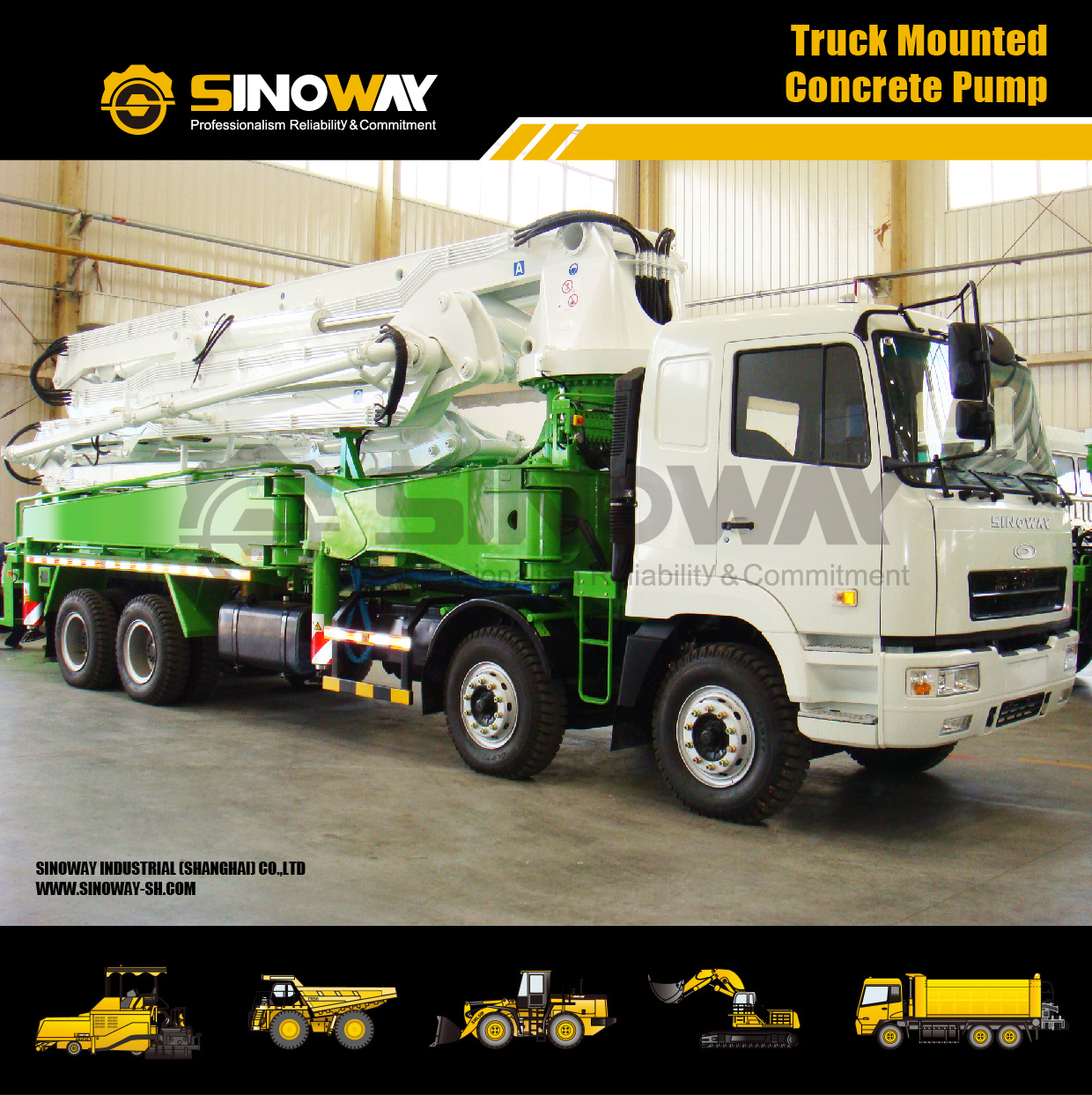

    338KW/460HP Rated Power 8x4 Drive Model 49m Truck-Mounted Concrete Pump/Truck Mounted Concrete Line Pump


    Pumping System
    Output in theory150m³/h
    Max. pumping pressure9.0MPa
    Hopper capacity550L
    Feeding height1450mm
    Distributing valveS pipe valve
    Rated work pressure36Mpa
    Pumping frequency22min-1
    Chassis And Whole Vehicle
    Max. travelling speed90km/h
    Drive model8×4
    Engine modelAVL tech. engine
    Rated power338kw
    Rated speed1900rpm
    Max. torque2200N.m/1100-1450rpm
    Displacement11.81L
    Curb weight39000kg
    Wheel base
    Axle1, Axle21940mm
    Axle2, Axle34515mm
    Axle3, Axle41350mm
    Boom
    Max. distributing radius45.5m
    Max. distributing height48.6m
    Max. distributing depth37.8m
    Height of boom when stretched12800mm
    Distance between front landing legs9316mm
    Distance between rear landing legs10364mm
    Distance between front and rear landing legs10273mm
    Delivery pipe diameter125mm
    Tail hose length3000mm
    Rotary angle of boom365°
    Boom section5
    Rotary angle of each boom section90/180/180/225/212°
    Boom length9700/7910/7985/9460/9460mm
    Main Components
    Arm support pumpGermany REXROTH
    Oil pumpGermany REXROTH
    Balance valveGermany HAWE
    Solenoid valveUSA EATON
    Hydraulic valveUSA EATON
    Sealing elementUSA PARKER
    ConnectorGermany EMB
    HoseItaly MANULI
    Proportional multiway valveGermany HAWE
    Wireless romote-control deviceGermany HBC
    Dimension
    Overall length13790mm
    Overall width2495mm
    Overall height3990mm
    Service Capacities
    Fuel tank400L
    Water tank600L
    Hydraulic tank600L
