10 Ton Swamp Carrier Amphibious Transporter

    Buy cheap 10 Ton Swamp Carrier Amphibious Transporter from wholesalers

    Buy cheap 10 Ton Swamp Carrier Amphibious Transporter from wholesalers
    • Buy cheap 10 Ton Swamp Carrier Amphibious Transporter from wholesalers

    10 Ton Swamp Carrier Amphibious Transporter

    Ask Lasest Price
    Brand Name : SINOWAY
    Model Number : SWSC100
    Certification : ISO9001
    Price : Negotiation
    Payment Terms : T/T, L/C, D/A, D/P
    Supply Ability : 10 units per month
    Delivery Time : 60 days
    • Product Details
    • Company Profile

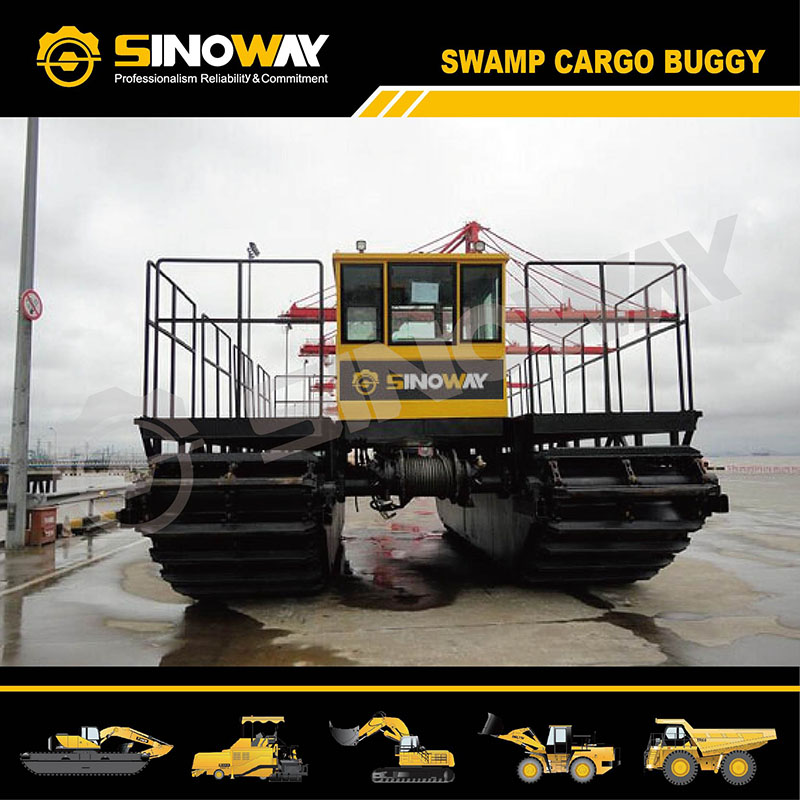

    10 Ton Swamp Carrier Amphibious Transporter

    Earth Moving Equipment
    Amphibious swamp transport vehicle is a special kind of vehicle used for transportation of people or equipment in soft terrain and marsh areas.
    Sinoway SWSC100 amphibious swamp transporter is specifically designed to manoeuvre in marshy, swampy area and soft terrain, and it can also float on water as an added safety feature. It is completely self propelled and can virtually access all terrains. Amphibious transporters consist of an
    undercarriage and an upper structure with cabin, engine and platform.It can be equipped with winches and cranes according to different working conditions. At the same time, it can be refitted into swamp drilling platforms
    according to the situation. The machine can be custom-made to suit your needs too.
    Main Features
    Equipped with Cummins engine with good performance and reliability.
    Multi Synchronous Drive System
    Proprietary multi-synchronous drive motor design.Motors are mounted on front and rear of each pontoon.It offers superior tracking power as compared to a single motor design. A similar concept that is applied to a full time 4x4 gear system of a land vehicle.
    Amphibious Modular Design
    Designed to be easily transported by low bed trailer. Amphibious modules and attachments are designed to be able to fit into
    40ft container. Both the assembly and disassembly processes can be achieved in under 3 hours if equipped with proper tools and crane.
    No special tooling is required for the assembly and disassembly process.
    Each pontoon has 3 watertight compartments and manhole.The track system (shoe, chain, roller, pin and bushing) is extremely
    controlled tight tolerance. The track shoe supported by multiple stands of track chains provided the advantage of uniform pulling force
    and superior weight distribution across each track shoe. The shape of shoe is optimized to generate the powerful thrust force under water
    and driving force on the ground also.
    Driverr cabin
    Operater cabin is supported with innovative silicone rubber shock absorber, which minimize the shock brought by the rough terrain and engine or hydraulic vibration and impact transmitted to the cabin, increase the stability of cabin and improve the operators’ sitting quality and operating comfort.
    Main technical Specification
    Gross weight30 ton
    Max. payload10 ton
    EngineCummins
    Type4-cylinders, water cool, turbocharging
    Rated power186 kw (250 hp)/2200 rmp
    Max. pressure320 MPa
    Max. flow2 × 360 L/min
    Main pumpDoosan
    Multi-way valveDoosan
    Control valveDoosan
    Travel motorDoosan
    Travel speed on land0~2.4 km/h
    Travel speed on water0~0.8 km/h
    Grade ability30°
    Crane capacity8 ton
    Crane’s working radius12 m
    Hydraulic winch’s max pulling force20 ton
    Hydraulic winch’s total rope length50 m
    Ground pressure0.125 Kgf/cm2
    Overall size (L × W × H)9500×6050×4100 mm
    Width of pontoon, length of pontoon2010 mm/1700 mm
    Platform size (L × W × H)8500×6000×2100 mm
    CabinAll-steel broad cab, 360 visual angle, centralized control operator panel, ratating chair, air conditioner
    Size (L × W × H)1600×2000×1840 mm
