Mining Dump Truck

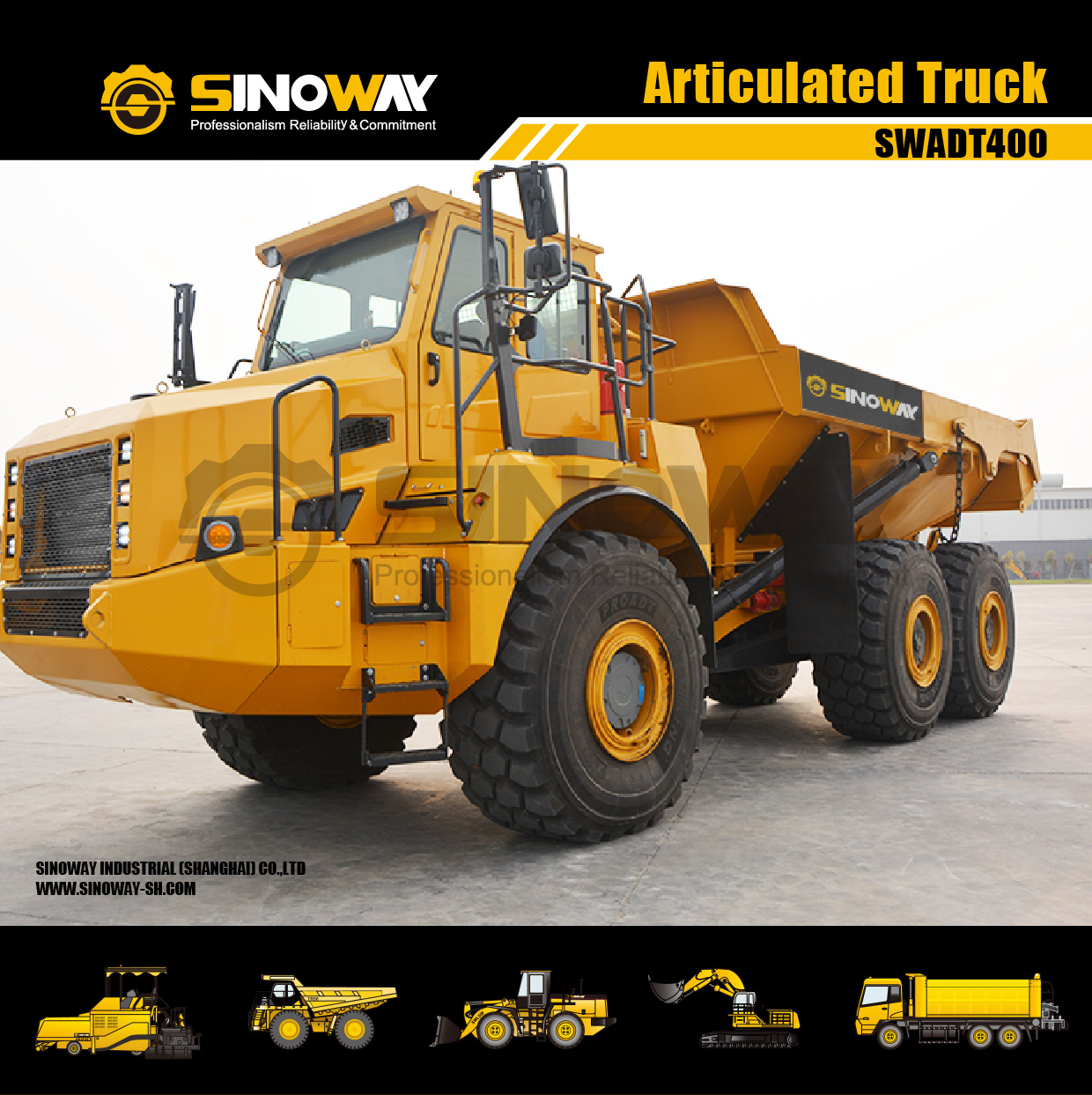

Articulated dump truck (ADT), namely articulated hauler,usually have the characteristics of full-wheel drive. They are a kind of earthwork transport machinery with strong versatility in large-scale construction of mining industry and various industries. Because of the special structure, they can adapt to harsh climate, transport goods on rugged terrain and have high availability. The key of articulated trucks is to connect the front and back parts. The principle of the articulator is similar to that of the universal joint. Each part has its own frame, the former part is equipped with engine and its operating system, cab; the latter part is equipped with hopper and dump device, which connects the power part of the car with the loading part through the hinged head. The hinged head is directly connected with the front frame or rear frame of the car, and the vehicle has good driving performance by connecting the vertical and horizontal hinges. Some parts of the car can turn left or right to 45 degrees in the horizontal plane relative to the other parts, or even "fold" together. In addition, the front and rear frames can rotate independently and independently around the common longitudinal axis in a plane perpendicular to the common longitudinal axis. Because the folding angle of the two parts of the frame forms when the articulated truck turns, the turning radius of the outer contour of the vehicle decreases, while the turning radius of the inner contour increases, which makes it possible for the truck to pass in a narrow passage. The two parts of the body may rotate relative to the common longitudinal axis. It can obviously reduce the wheel runout in the vertical direction of the suspension system.

Main Advantages

Power

Tier3 stage high power electronic control engine is adopted, which has stronger power.
Vehicle Frame

Brake System

SWADT400 adopts self-oil cooled disc brakes system, ensure the vehicle highly reliable and long lifetime. Even in the muddy road, SWADT400 also function responsively. The large-capacity, continuously cooled, wet-multiple disc brakes also function as a highly responsive retarder which

gives the operator greater confidence at higher speeds when travelling downhill.

Safety Device

The cab equipped with rear window protection grill, The three-point seat belts, Escape hammer, emergency stop button, Rotating lamp, Reversing warning, Steering locking lever, Boxcar support bar, Assisted steering and brake accumulator, slip resistant surface, guardrail, etc.

Cab

The FOPS cab is built from high strength steel, meeting FOPS standard,without A column design, with the broad space and vision. The fully-equipped cab provided all kinds of display instrument, alarm, lighting, control switch, On-board computer, electric Windows, tilting and telescoping steering wheel, electric windshield wiper cleaners, colored glass, air conditioning.

Rated power	350kw
Max.torque	2300N.m/1300rpm
Drive mode	6x6
Tire size	29.5R25
Max. travelling speed	60km/h
Max. grade ability	45%
Max. steering angle	45 degree
Min. ground clearance	565mm
Loading height	3180mm
Hoist time	12s
Hoist angle	70 degree
Payload cpacity	39 ton
