    40 Ton Wide Body Mining Rigid Truck / Quarry Dump Truck SWMT4064W

    Ask Lasest Price
    Brand Name : SINOWAY
    Model Number : SWMT4064W
    Certification : ISO9001
    Price : Negotiation
    Payment Terms : T/T, L/C, D/A, D/P
    Supply Ability : 5000 units per year
    Delivery Time : 45 days
    • Product Details
    • Company Profile

    40 Ton Wide Body Mining Rigid Truck / Quarry Dump Truck SWMT4064W

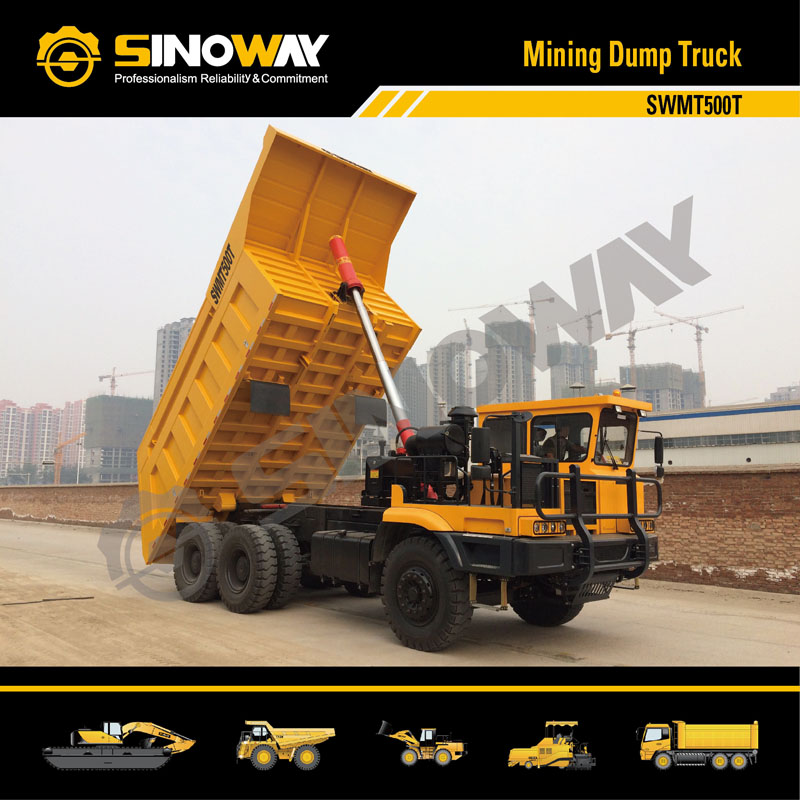

    Off highway Dump Truck

    Mining Rock truck is specifically used on a mine or quarrying site. They are not driven on publicroads, except for extreme instances.

    The toughest mining conditions require the top mining dump trucks for mineral haulage. The range of Sinoway rigid mining dump trucks with payload ranging from 20 ton to 100 ton, meets the demand requirements of most mining, quarrying, and heavy construction applications.
    Sinoway off-road mining trucks have been specially designed with a rugged and robust frame to provide superior levels of productivity in the roughest terrain. The dump trucks have been equipped with the latest technologies to offer not only high performance in the most arduous application, but also a safe and comfortable environment for the operator. We are proud that Sinoway mining trucks are now contributing towards many mine pits.


    Main Advantages

    375HP diesel engine fully mix the forefront of international advanced engine technology, products with international advanced technical features, water-cooled, four-stroke, turbo inter-charge, direction injection technology. Its characteristics are high reliability, high torque, less emission, low fuel consumption and low noise.

    For specific application environment, latest fully-enclosed suspended cabin with the suspension seat features increased space, a wider view, more comfortable operation, made significant improvement in general comfort compared to similar industry products in any light or heavy payload trucks.

    Through the camera of far-infrared wide-angle imaging in the rear of truck,, the display screen indoor can clearly show the obstacles vehicle’s behind for more open vision, solving a common problem of reversing blind spot of dump truck.

    The width of the carriage is 3150. The carriage is rectangular, its bottom is 18mm manganese plate, its side is 12mm Q345 plate, and the bottom plate adopts layout form, which makes it steadier and stronger.


    Engine modelWD12
    Rated power375hp
    TypeInline, six-cylinder, four-stroke water-cooled direct injection turbo-charged diesel engine
    Displacement11.596L
    Curb weight23000kg
    Rated payload40000kg
    Persons in cab(persons)1
    Gross vehicle weight63000kg
    Fuel tank380L
    Wheels and tyre sizeEngineering tyre 10+1/14.00-24-28PR
    Overall dimensions8850×3200×3670mm
    Cargo body dimension5700×2950×1600mm; Bottom 16mm and side 10mm
    Material of cargo bodyT700
    Cargo body type:No rear door, rear bottom steel plate upwarp 15°, with heater system
    Lifting SystemHYVA 157
    Wheel base3600+1500mm
    Driving type6x4
    Middle & rear axleHANDE axle double hub reducer cast steel axle
    Front axleHANDE axle integral welding structure front axle
    Transmission7DS180
    Steering systemDouble steering steering
    CabineSingle whole rigid, A/C cabin, the Left side cabin
    Body paint colorYellow
