    50 Ton Hydraulic 5 Boom Truck Crane

    Ask Lasest Price
    Brand Name : SINOWAY
    Model Number : SWTC50K
    Certification : ISO9001
    Price : Negotiation
    Payment Terms : L/C, D/A, D/P, T/T, Western Union
    Supply Ability : 2000 units per year
    Delivery Time : 30 days
    • Product Details
    • Company Profile

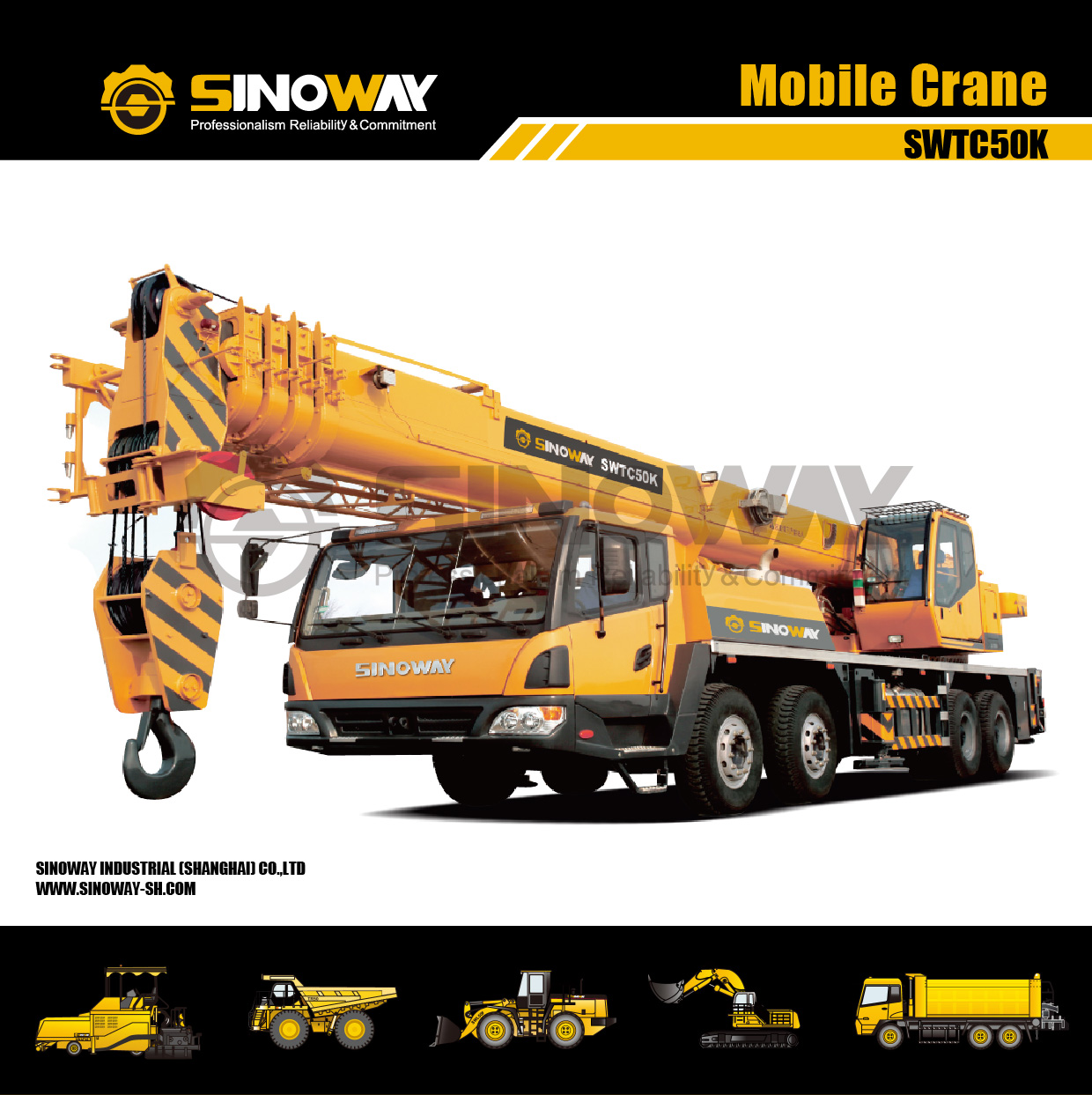

    50 Ton Hydraulic 5 Boom Truck Crane

    Hydraulic Truck Crane
    Sinoway supply the truck crane with the lifting capacity ranging from 20ton to 130ton and provide complete technical support for customers. Truck crane is a crane mounted on a truck carrier which can provide better mobility. Truck cranes are able to travel on highways, eliminating the need for special equipment to transport the crane unless weight or other size constrictions are in place such as local laws.
    SWTC50K truck crane has five-section boom of high strength steel structure and optimized U-shaped cross section with max.lifting capacity of 25t, full-extended boom length of 33.5m, max.lifting height including jib of 42m, reduce weight and improve safety significantly.
    Jib mounting angles are 0°, 15°, and 30°, which ensure fast and convenient change-over between different operating conditions so as to improve working efficiency of the machine.
    Features
    Equipped with powerful Cummins engine.
    Excellent Traveling Performance
    Double-axle drive is used to provide good trafficability and comfortableness under complex road condition; engine has the multimode power output function, which reduces power consumption; the use of tipping over early-warning technology provides high stable and safe operation.
    Intelligent Electronic Control
    Self-developed controller special for engineering machinery is configured. The adoption of CAN-bus full-digital network control technology ensures stable control signal, simple harness, and high reliability. Timely feedback of data information can achieve the monitoring of the overall working status in real time.
    The Load Moment Limiter
    Equipped with the comprehensive intelligent protection system is used with accuracy within 5%. The adoption of comprehensive logic and interlock control system ensures more safe and reliable operation.
    More Safe Devices
    Main and auxiliary winches are equipped with over roll-out limiter to prevent over rolling-out of wire rope.
    Boom and jib ends are equipped with height limiters respectively to prevent over-hoisting of wire rope.
    Hydraulic system is configured with the balance valve, overflow valve and two-way hydraulic lock etc., to ensure stable and reliable operation.

    Engine
    Engine makeCUMMINS
    TypeSix-cylinder,water-cooled,turbocharged,electronic injection
    Rated power247KW
    Rated speed2100rpm
    Mass Specification
    Operating weight40500kg
    Front axle load7850kg
    Rear axle load2500kg
    Lifting Specification
    Max. rated lifting capacity50000kg
    Min. rated working radius3m
    Max. load moment
    Base boom1822.5KN·m
    Fully extended boom962KN·m
    Outrigger span
    Longitudinal6900mm
    Lateral5900mm
    Lifting height
    Base boom11.4m
    Fully extended boom43.0m
    Fully extended boom+jib59.0m
    Working Speed
    Boom raising time96/120s
    Boom full extension time220/220s
    Max. slewing speed2.0rpm
    Hoist speed
    Main winch (full load)90/130m/min
    Aux. winch (full load)90/130m/min
    Travelling Specification
    Max. travelling speed80km/h
    Min. turning diameter22.0m
    Ground clearance280mm
    Approach angle19°
    Departure angle12°
    Grade ability43%
    Fuel consumption45L/100km
    Dimensions
    Overall length13830mm
    Overall width2800mm
    Overall height3600mm
    Wheel base
    Axle1, Axle21500mm
    Axle2, Axle34075mm
    Axle3, Axle41350mm
