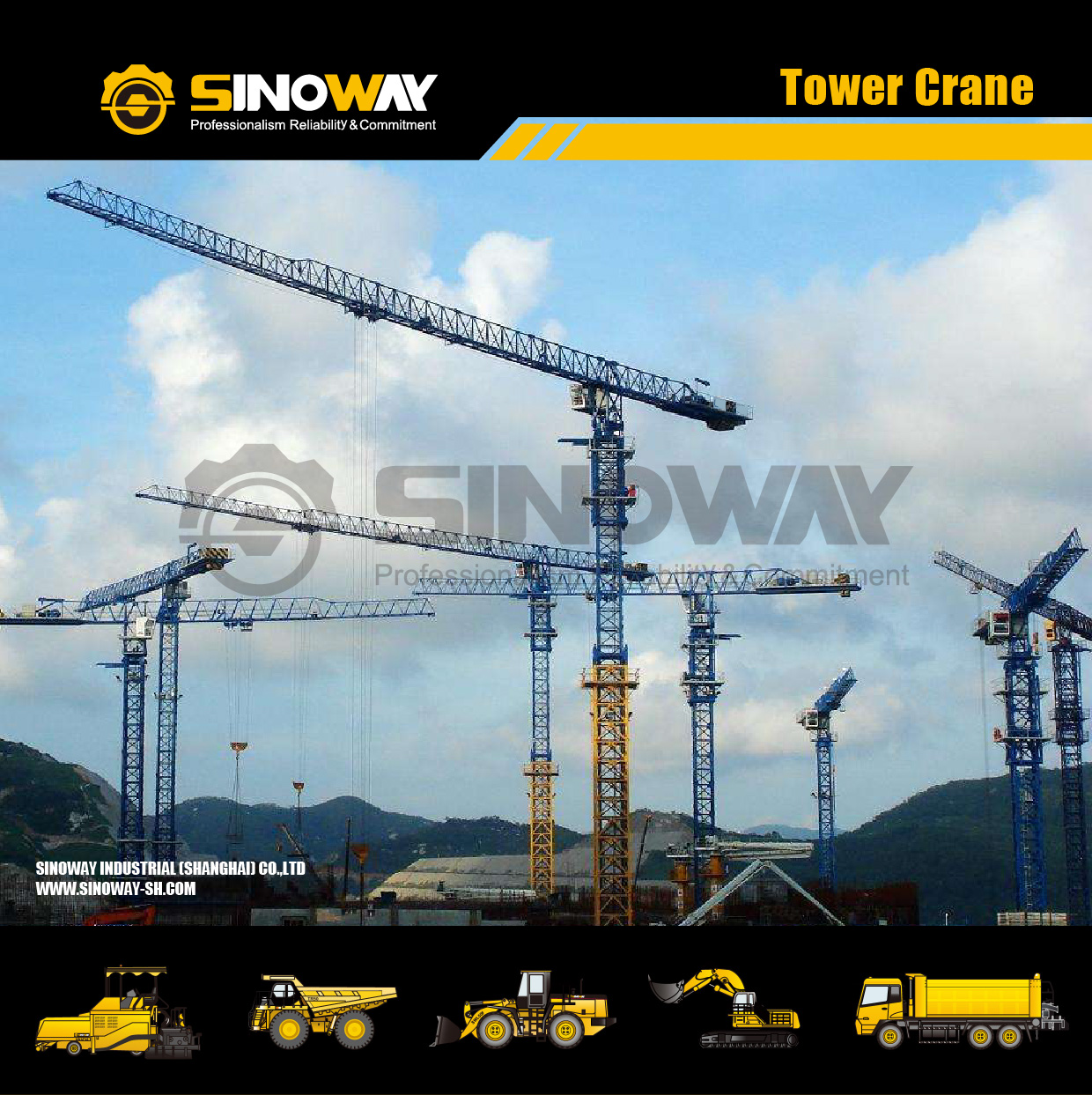

    Construction Topkit Tower , Crane Flat Head Tower Crane 25ton Rated Lifting Capacity

    25ton Rated Lifting Capacity Construction Topkit Tower Crane Flat Head Tower Crane


    1. The crane boasts of multiple operation modes and wide application. The crane can work in different forms: stationary crane with embedded outriggers, stationary crane with under-frame, stationary crane with embedded bolts and crane anchored to wall, thus being applicable to various construction projects.

    2. With PLC control, the electrical control system enjoys better reliability and safety. Produced by professional manufacturers with advanced foreign technology, the electrical elements feature service lives that are 3 or 4 times longer than that of domestic products, less faults, easy maintenance and repair as well as reliable operation.


    Main Technical Specification
    Working radius80m
    Free height74m
    Max. height259m
    Max. lifting capacity25000kg
    Tip lifting capacity3300kg
    Slewing Mechanism
    Slewing speed0 - 0.6rpm
    Motor power3 x 145N.m
    Trolley Mechanism
    Max. luffing speed0 - 60m/min
    Motor power15kw
    Hoisting Mechanism
    Multiplyinga = 2 or 4
    Hoisting speed0-35/35-70m/min (a=2); 0-17.5/17.5-35m/min(a=4);
    Motor power90kw

    Rated Lifting Load Capacity

    Jib(m)R minR(C min)C minRange (m)
    2030404550556065707580
    80a = 23.527.912.5t1250011500820071006260550049004400400036003300
    a = 43.514.625t1780011200790068005960520046004100370033003000
    75a = 23.529.312.5t125001220087007500660059005280475042003900
    a = 43.515.425t188001190084007200630046004980445039003600
    70a = 23.532.812.5t125009900867076506800610055005000
    a = 43.517.225t21300136008450729073506500580052004700
    65a = 23.532.812.5t12500990086707600678061005500
    a = 43.517.225t2120012390960083707300648057905200
    60a = 23.535.312.5t12500108709480830074506700
    a = 43.518.525t2440015300105709480800071506400
    55a = 23.537.812.5t12500117501020090008100
    a = 43.519.825t248501650011450990087007800
    50a = 23.54212.5t125001160010300
    a = 43.52225t2500017960133601130010000
    45a = 23.54012.5t1250011800
    a = 43.522.225t25000173001200010900
    40a = 23.54012.5t12500
    a = 43.522.4525t250001798013000

    Ballast

    Counter-jib ballast4900-3900-2000
    Boom(m)Counter-jib length (m)Counter weight(kg)PZ4900PZ3900PZ2000
    8024.7724500500
    7524.7724500500
    7024.7724500500
    6524.7722500320
    6020.7421600401
    5520.7428400510
    5020.7427400420
    4520.7425500411
    4020.7424500500
