    35 Ton Hydraulic Waste Material Handler

    Ask Lasest Price
    Brand Name : SINOWAY
    Model Number : SWMH350K
    Certification : ISO9001
    Price : Negotiation
    Payment Terms : L/C, D/A, D/P, T/T, Western Union
    Supply Ability : 50 units per months
    Delivery Time : 30 days
    • Product Details
    • Company Profile

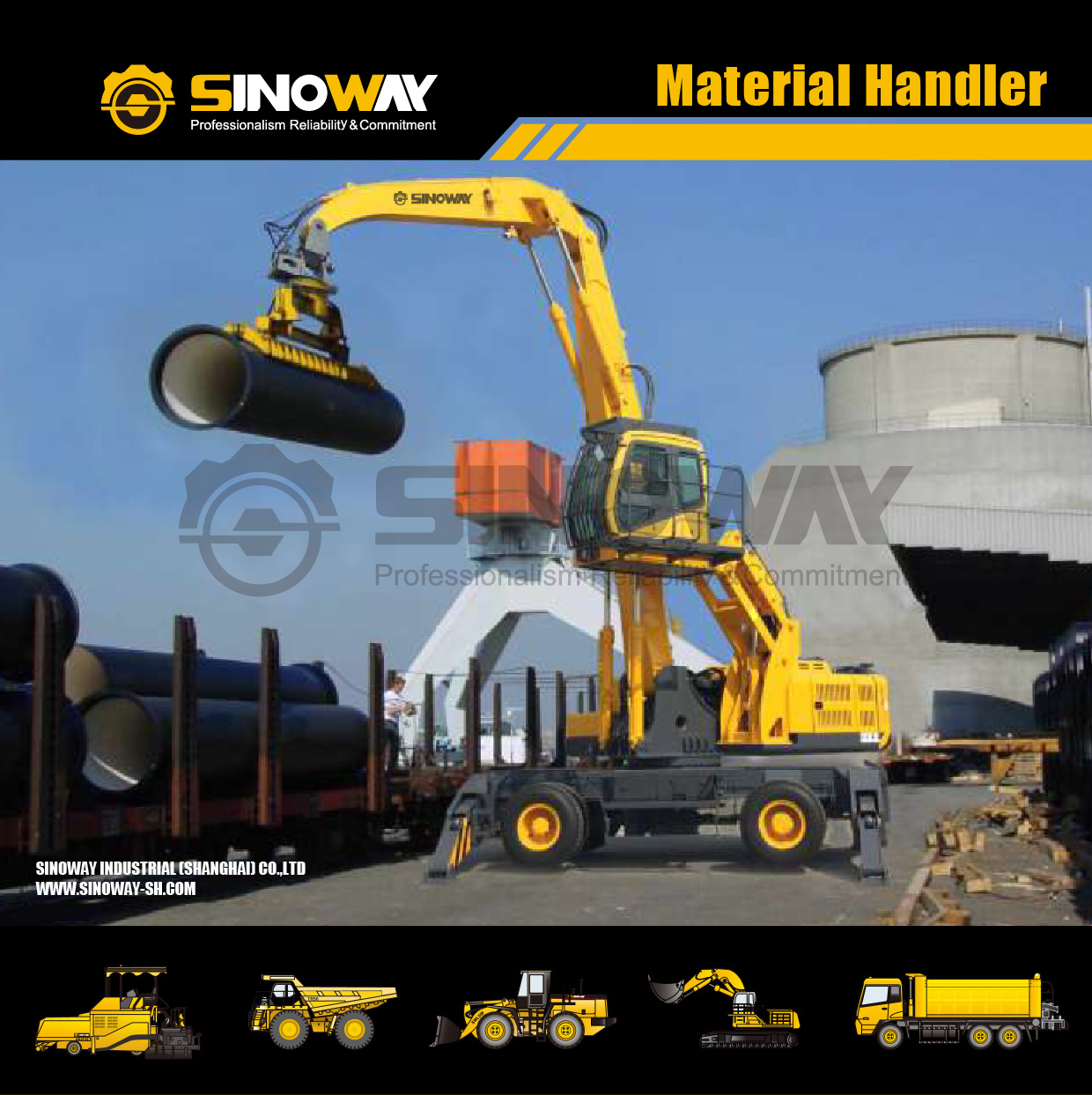

    35 Ton Hydraulic Waste Material Handler

    Mobile Handling Equipment

    Mobilel waste handlers work in warehouses and production facilities to move products. This might mean finding materials on the shelves and wrapping them and putting them on a delivery truck, or pulling materials off the truck and putting them in the proper shelf spot.

    Sinoway SWMH seris wheeled material handler equipment is a mobile handling, stacking and demolition equipment, with a number of advantages. The folding boom is used to overcome the difficulty of the truck crane when the soft rope of the crane is easy to rotate and the operation without the downward pressure, and to overcome the pressure of the truck crane. The more solid stacking boom overcomes the shortcomings of the truck crane when the soft rope of the truck crane is easy to rotate and the work has no downforce and the grasping effect of the more solid materials is poor. It is not enough for the straw picking, wood bamboo waste paper, sand and gravel foam loose soft material to carry out poor picking effect.

    Main Advantage

    This product has a "double force" system for internal combustion engine and 380V electric interchange operation; "double force" system with explosion-proof machine and electric interchangeable operation; "double force" system with optional explosion-proof machine and electric interchange operation; The use of explosion-proof machine, electric interchangeable "double force" system; optional explosion-proof machine, fully enclosed electrical, fire protection and save 60% energy consumption compared to internal combustion engine operations; can quickly replace different hydraulic grabs.

    The electric operation has over-current and heat-discharge protection devices;
    Phase sequence automatic identification to prevent oil pump reversal device;
    Hydraulic system power failure, oil self-locking protection device;
    There are a number of complex movements during the operation to improve efficiency;
    The hydraulic system is equipped with an air-cooled radiator;
    The gripper can automatically turn and reversing 360 degrees;
    When the electric control room is electrically operated, there is a dual-purpose air conditioning unit;
    Power
    Electrical motor110kw
    Rated speed1480rpm
    Max. swing speed (electrical motor)5r/min
    Diesel engine154kw
    Rated speed2200rpm
    Max. swing speed (diesel engine)8r/min
    Fuel tank capacity440L
    Main Technical Specification
    Max. lifting capacity@Min. working radius13000kg
    Max. lifting capacity@Max. working radius2000kg
    Min. working radius4000mm
    Max. working radius14000mm
    Max. lifting moment52.5t.m
    Max. swing torque107KN.m
    Boom length8000mm
    Arm length6000mm
    Main luffing time (Max. speed)
    Fall boom (electrical / diesel)≤17s/≤11s
    Rise boom (electrical / diesel)≤21s/≤11s
    Auxiliary luffing time (Max. speed)
    Fall boom (electrical / diesel)≤20s/≤11s
    Rise boom (electrical / diesel)≤9s/≤6s
    Outrigger
    Fall stretching (electrical / diesel)≤16s/≤11s
    Fall retracting (electrical / diesel)≤12s/≤10s
    Outrigger distance
    Lengthways4500mm
    Transversal4200mm
    Travelling System
    Max. travelling speed15km/h
    Min. turning radius7.6m
    Max. gradeability18%
    Min. ground clearance250mm
    Max. traction force109kN
    Approach angle15.0°
    Departure angle15.0°
    Braking distance (speed: 15km/h)≤6.5m
    Operating weight35000kg (including clam shell)
    Dimension
    A. Overall length11000mm
    B. Overall width3500mm
    C. Overall height3190mm
    D. Wheelbase3200mm
    E. Max. lifting height of cab5900mm
    F. Rear-end length/slewing radius3650mm
    G. Counterweight clearance1430mm
    H. Upper-structure width2940mm
