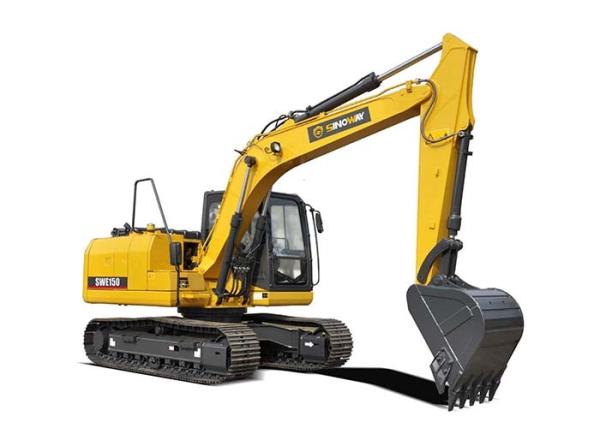

    Land Moving Equipment 15 ton Crawler Excavator with Cummins Engine

    Ask Lasest Price
    Brand Name : SINOWAY
    Model Number : SWE150
    Certification : ISO9001
    Price : Negotiation
    Payment Terms : T/T, L/C, D/A, D/P
    Supply Ability : 20000 units per year
    Delivery Time : 30 days
    • Product Details
    • Company Profile

    Land Moving Equipment 15 ton Crawler Excavator with Cummins Engine

    Earthmoving Equipment

    Hydraulic excavators are used for a wide variety of applications, the most notable being excavation. They are also capable of being used for demolition purposes, however, as even the smallest models are more than capable of demolishing buildings. Hydraulic excavators are also commonly used for moving large amounts of materials, such as minerals, from one area to another. Hydraulic excavators are usually used in conjunction with bulldozers and loaders for construction purposes.

    Sinoway hydraulic excavator has been tested, re-designed and then re-specified after market proved, and finally built to withstand numerous applications. Reliable major components like Cummins engine, Kawasaki hydraulics and our cutting edge technology to produce hydraulic excavators are the reasons why Sinoway excavator lasts. Through our crawler excavator category, starting with 0.05 m3 bucket up to 2.0 m3, you will fine one fits your requirement.

    Main Features

    Updated-design negative flow control hydraulic system provides the actuator of the crawler excavator with high response.
    Electronic throttle control enables you to select different control modes according to different loads during operation for high efficiency and energy reduction.
    The hydraulic excavator is outfitted with a high-quality Kawasaki pump and a priority valve to achieve extremely high efficiency.
    An intelligent electronic monitoring system is used for the real-time supervision of the system conditions, enabling the excavator to be maintained easily.
    The fuel system is constructed using a high-capacity oil water separator and a tertiary filtration system.
    The driver’s cab offers the advantages of a beautiful exterior, large space, a wide viewing angle and superb ventilation conditions. Its silicone-oil damper is ergonomically designed.
    Adopting an air-conditioning system offers a comfortable operating environment.


    Engine
    MakeCummins B3.9
    TypeFour-cylinder,water-cooled, turbocharge,mechanical injection
    Rated power86KW
    Rated speed2200rpm
    Main Technical Specification
    Operating weight13900Kg
    Standard bucket capacity0.6m3
    Slewing speed12.5rpm
    Stick digging force65.3KN
    Bucket digging force91.8KN
    Travelling System
    Travelling speed5.3km/h
    Grade ability70%
    Ground pressure0.0452MPa
    Dimensions
    Overall length7760mm
    Overall width2490mm
    Overall height3050mm
    Ground clearance430mm
    Track width500mm
    Operating Scope
    Max. cutting height8780mm
    Max. dumping height6390mm
    Max. digging depth5470mm
    Max. reach8330mm
