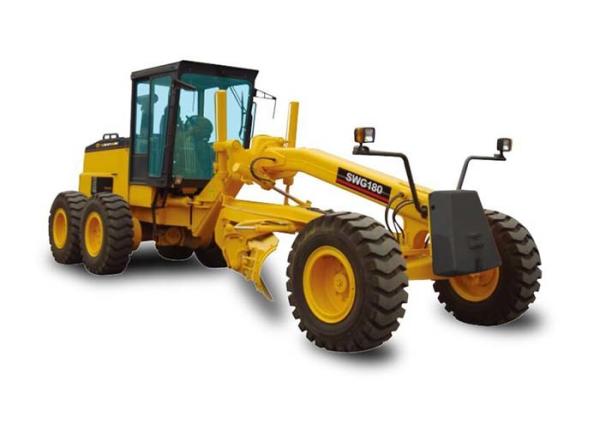

    Heavy Duty Soil Moving Equipment , Land Moving Equipment 180 hp Motor Grader

    Ask Lasest Price
    Brand Name : SINOWAY
    Model Number : SWG180
    Certification : ISO 9001
    Price : Negotiation
    Payment Terms : L/C, T/T, D/A, D/P
    Supply Ability : 30 units per month
    Delivery Time : 30 days
    • Product Details
    • Company Profile

    Heavy Duty Soil Moving Equipment , Land Moving Equipment 180 hp Motor Grader


    Heavy Duty Soil Moving Equipment , Land Moving Equipment 180 hp Motor Grader
    SINOWAY SWG180 Motor Graders are mainly used in ground leveling ,canalling , slope scraping ,earthmoving ,scarification or snow removal work on road, airfield ,farmland ,and so on .They are necessary construction machines for national defense engineering ,mine construction, town and country roads building ,and farmland improvement.

    Main features
    Equipped with reliable Shanghchai engine.
    Sing-handle electro-hydraulic controlled power shift T/M, 6 forward & 3 reverse shifts maks operation easy and convenient.
    Hydraulic lock auto lock/unlock NO-SPIN differential ensure stability and powerful traction
    The international matching hydraulic parts are adopted,with reliable operation.
    Box-typed frame and advanced T/M enable it to complete heavy duty work.
    The manipulation table and seats are adjustable. The arrangement of the manipulation handle and instruments are reasonable,with convenient application,and the comfort of driving is improved .
    The cab is grand and nice,with wide eyeshot and good sealing .
    The front bulldozing plate, rear scarification device,front scarification harrow and automatic leveling device can be added.

    Engine
    ModelCummins 6BTA5.9
    TypeSix-cylinder,water-cooled,turbocharged, aftercooled, mechanical injection
    Rated power132KW
    Rated speed2300rpm
    Transmission System
    Torque conveter type3 elements, single stage
    Torque ratio1.5~3
    Cooling typeOil cooled, pressure circulation
    Gearbox typePower shift
    Gear shifts(Forward/Reverse)Travelling speed(km/h)F6/R3
    Forward/Reverse I5.2/5.2
    Forward/Reverse II7.9/11.8
    Forward/Reverse III11.8/25.0
    Forward IV17.9
    Forward V25
    Forward VI36.1
    Steering System
    Front wheel steering angle45º(L/R)
    Articulated steering angle25º(L/R)
    Drive typeDual action cylinder
    Axle
    Drive typeFour wheel drive(6×4)
    Front axle ground clearance630mm
    Front wheel lean17º(L/R)
    Oscillation±15º
    Drive axleThree stages with No-SPIN differential
    Working Equipment
    Control systemHydrostatic drive system
    Hydraulic pumpGear pump
    Control valveTwo sets, five pieces per set
    Control pressure18MPa
    Hydraulic oil cylinderDual action cylinder
    Max. tractive force80.3KN
    Ground penetration500mm
    Blade width3965mm
    Blade cycling360º
    Max. bank cutting angle90º(L/R)
    Operating weight15400kg
    Braking System
    Service brakeHydraulic caliper disc brake actuate 4 rear wheels
    Parking brakeHand operated hoop brake
    Dimensions
    Overall length8700mm
    Overall width(wheel outside)2600mm
    Overall height3500mm
    Wheel base5985mm
    Front tread2150mm
    Rear tread2340mm
    Tyre size17.5-25
    Service Capacities
    Fuel tank228L
    Engine crank case19L
    Hydraulic tank130L
    Gear box21L
    Rear axle28L
    Balance box23L(each)
    Worm gear case2.5L
    Tandem Drive
    TypeSwing type with roller chain transmission
    Speed ratio18.03
