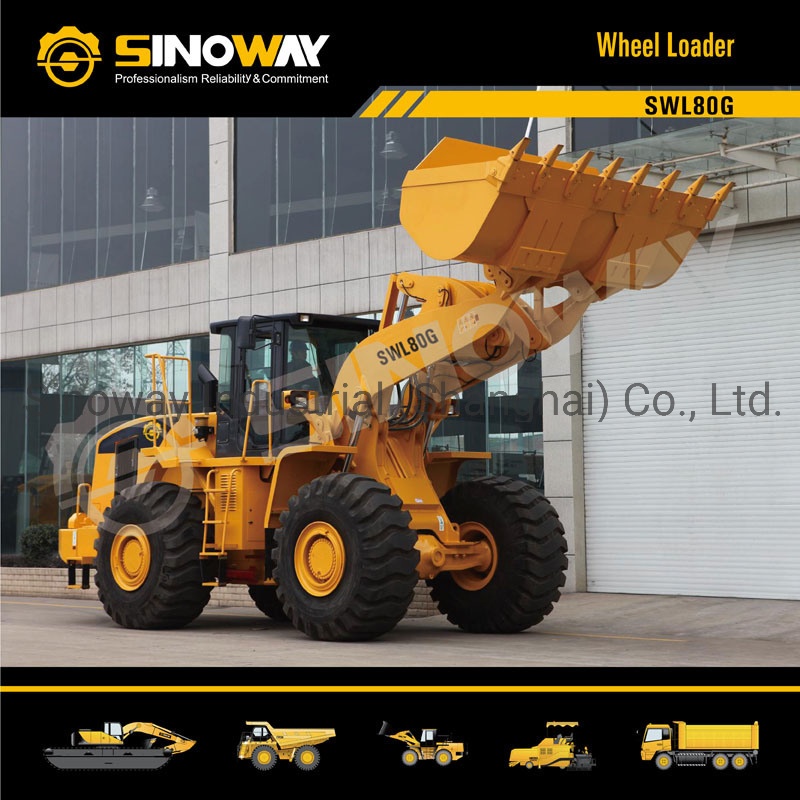

Construction Earth Moving Machines 30 Ton Front end Wheel Loader Cummins Engine

Soil Moving Machinery

Wheel Loaders, or front-end loaders, are a type of heavy equipment machine that is primarily used for moving or loading large amounts of material such asasphalt, demolition debris, dirt, snow, feed, gravel, logs, raw minerals, recycled material, rock, sand, woodchips, etc. While Wheel Loaders typically feature a large general-purpose bucket, these machines can be outfitted with other various attachment.
Sinoway offers a complete line of wheel loaders, covering from maneuverable compact wheel loader to productive heavy wheel loader. With world-class components used and more care built in, you will surely feel the robust power with comfort operating by experiencing our new F series models of front end bucket loader.
Sinoway wheel loaders are widely employed in the digging, transporting and loading construction materials like soil, sand and gravel. With various configurations, Sinoway wheel loader is devoted to meet both your applications as well as your budgets. Thanks to our variety of attachments for wheel loader, Sinoway even extend your loading applications to farming, stockpile scooping, snow plowing, logging and timber industry.
Main Features

At the heart of our exceptional powertrain lies the latest Cummins engine. This power house has been designed to deliver impressive acceleration and torque output, along with a serious bucket filling and lifting capability which greatly increases cycle times and earning potential.
Heavyweight Combination
Faster cycle times are made easy with the machine's power combination. The engine is teamed up with a four speed, ZF smooth shifting transmission. This combination optimizes power and fuel efficiency, day after day, increasing bucket breakout force and loading capability. To this, we've added larger, high capacity axles which make light work of the toughest terrain and intelligent hydraulics for low-engine speed performance, quick steering response and rapid boom up speeds. We put this power right in your operator's hands with simple and intuitive controls designed to get the job done faster and more effectively every cycle.
The long life of capability of lifting
Our new buckets load heavy materials easier and faster; saving you time, lowering fuel consumption and reducing damage. In tests, our new buckets increase production by14% and lower fuel consumption by 15% per hour. In addition, damage to the bucket and teeth can be greatly reduced thanks to the stronger anti-wear blade.
German ZF axle performance
Stability, traction and weight loading capability are the 3 key essentials for axles in heavy applications. The new ZF axles with limited-slip differentials excel in handling heavy loads up to 44t static and 25t dynamic in tough terrain. The intelligent, responsive power combined with excellent traction and stability give operators a real feeling of
confidence on any ground - soft and shifting or hard and unforgiving.
New Z-Bar enhancements
Careful distribution of stress loads increases the Z-bar's tolerance significantly. Hinge pins and lift arm mounting plates have been strengthened, while optimized Z-Bar geometry improves bucket breakout force, operator visibility, loading stability and speed.

Engine
Model	Cummins M11
Type	Six-cylinder,water-cooled,turbocharged,mechanical injection
Rated power	235KW
Rated speed	2100rpm
Main Technical Specification
Rated load	8000Kg
Operating weight	30000Kg
Rated bucket capacity	4.5m3
Max. breakout force	260KN
Max. dump clearance	3300mm
Dump reach	1460mm
Dump angle at any position	45o
Digging depth(with bucket bottom horizontal)	198mm
Min. turning radius(outside of bucket)	7570mm
Oscillating angle of rear axle	±13o
Lifting time of bucket	≤6.9s
Lowering time of bucket	≤3.8s
Dumping time	≤1.5s
Implement Hydraulic System
Model of oil pump	Gear
System pressure	20.7MPa
Model of multi-way directional valve	Imported
Priority valve	Imported
Axle And Tyre
Type of main reducer	Single stage
Gear ratio of main reducer	4.777
Type of final reducer	Single stage planetary
Gear of ratio of final reducer	5.167
Total ratio	24.685
Max. tractive force	265KN
Tyre size	29.5-25
Steering System
Type	Hydraulic articulated steering
Model of steering pump	Gear
System pressure	19.0MPa
Articulated steering angle	38±1o(L/R)
Transmission System
Torque Converter
Type	3 elements, single stage
Torque ratio	2.985
Cooling type	Pressure oil circulating
Gear box
Type	Power shift
Gear shifts(Forward/Reverse)	F4/R3
Travelling speed(km/h)
Forward/Reverse I	7.3/7.3
Forward/Reverse II	12/12
Forward/Reverse III	24.5/24.5
Forward IV	35
Dimensions
Overall length(with bucket on ground)	9350mm
Overall width(to outside of wheels)	3170mm
Overall height(to the top of the cab)	3770mm
Bucket width	3455mm
Wheel base	3530mm
Tread	2420mm
Ground clearance	476mm
Service Capacities
Fuel tank	445L
Engine crank case	33L
Converter and gear box	62L
Hydraulic tank	250L
Braking System
Service brake type	multi disc
Service brake actuation	Hydraulic
Parking brake type	Auto and manual electronic controlled
Parking brake actuation	Spring apply,hydraulic release
