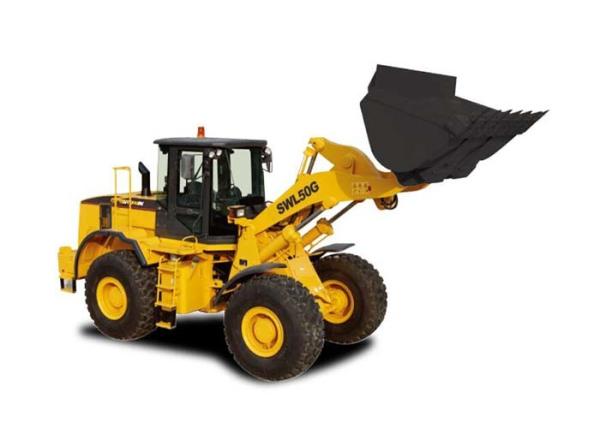

Earth Moving Equipment 3.0m³ Wheel Loader 17 ton Operating Weight

    Buy cheap Earth Moving Equipment 3.0m³ Wheel Loader 17 ton Operating Weight from wholesalers

    Buy cheap Earth Moving Equipment 3.0m³ Wheel Loader 17 ton Operating Weight from wholesalers
    • Buy cheap Earth Moving Equipment 3.0m³ Wheel Loader 17 ton Operating Weight from wholesalers

    Earth Moving Equipment 3.0m³ Wheel Loader 17 ton Operating Weight

    Ask Lasest Price
    Brand Name : SINOWAY
    Model Number : SWL50G
    Certification : ISO9001
    Price : Negotiation
    Payment Terms : T/T, L/C, D/A, D/P
    Supply Ability : 20000 units per year
    Delivery Time : 30 days
    • Product Details
    • Company Profile

    Earth Moving Equipment 3.0m³ Wheel Loader 17 ton Operating Weight

    Earth Moving Equipment 3.0m³ Wheel Loader 17 ton Operating Weight


    Soil Moving Machinery
    Sinoway offers a complete line of wheel loaders, covering from maneuverable compact wheel loader to productive heavy wheel loader. With world-class components used and more care built in, you will surely feel the robust power with comfort operating by experiencing our new F series models of front end bucket loader.
    Sinoway wheel loaders are widely employed in the digging, transporting and loading construction materials like soil, sand and gravel. With various configurations, Sinoway wheel loader is devoted to meet both your applications as well as your budgets. Thanks to our variety of attachments for wheel loader, Sinoway even extend your loading applications to farming, stockpile scooping, snow plowing, logging and timber industry.


    Main Features

    Equipped with Cummins engine with strong power and high reliability.
    ZF electronic controlled gearbox is adopted for excellent reliability and easy & comfortable operation, which reduces the driver’s fatigue when performing continuous work, thus improving the efficiency.
    ZF axles with excellent reliability and bearing capacity are adopted to complete the operation in various heavy-duty working conditions.
    The optimal matching of power system and transmission system greatly increases traction force. Long span articulated structure is adopted for larger ground clearance, ensuring good passing-through performance even in winding mountain roads.
    Upgraded sealing technology in the hydraulic system and butt welding technology of steel tubes improve the sealing performance significantly.
    CAE analysis is applied to structural components system to optimize the structure. Welding robot is used to ensure reliability of the structure components system.
    Central articulated structure enables the rear wheel track to overlap the front one, decreasing power loss while increasing the tipping load and the breakout force for excellent performance in heavy-duty working condition.
    Optimized working devices increase the lifting force, load ratio of bucket and overall efficiency.
    Full decorated cab with all-around clear visibility, ample space, low noise, comfortable seat and optimized shock damping system provides a pleasant driving environment with A/C as standard configuration.
    Engine
    Emission regulationTier 2/Stage II
    MakeCummins
    Gross power164kw(220hp)@2200rpm
    Net power157kw(198hp)@2200rpm
    Peak torque950N.m@1400rpm
    Displacement8.9L
    Number of cylinder6
    AspirationTurbo air-to-air after cooled
    Main Technical Specification
    Bucket capacity3.0m³
    Operationg weight17100kg
    Tipping load13200kg
    Full turn tipping load11750kg
    Bucket breakout force158kN
    Maximum Dump Angle at Full Height45°
    Dump Clearance at Full Height Discharge3100mm
    Dump Reach at Full Height Discharge1035mm
    Max.hinge pin height4154mm
    Max.digging depth,bucket level61mm
    Bucket rollback at ground level45°
    Bucket rollback at carry50°
    Bucket Rollback at Maximum Height61°
    Implement Hydraulic System
    Main pump tyoeGear
    Main relief pressure20Mpa
    Raise6.0sec
    Dump time1.5sec
    Float down time3.0sec
    Fastest total cycle time10.5sec
    Axles And Tyre
    Differential front typeLimited slip standard
    Differential rear typeLimited slip standard
    Axle oscillation±14°
    Tire size23.5-25
    Braking System
    Service brake typeWet multi disc
    Service brake actuationHydraulic
    Parking brake typeAir over hydraulic
    Parking brake actuationSpring apply,hydraulic release
    Steering System
    Steering configurationArticulated
    Steering relief pressure16 Mpa
    Transmission System
    Transmission typePower shift
    Transmission configurationCounter shaft
    Torque converterSingle stage,three element
    Max.travel speed,fwd37.0km/h
    Max.travel speed,rev23.0km/h
    Number of speed,fwd4
    Number of speed,rev3
    Dimensions
    Length wiht bucket down8150mm
    Width over tires2750mm
    Wheel base3250mm
    Wheel tread2150mm
    Ground clearance431mm
    Turn angle,either side38°
    Rear angle of departure30°
    Turning Radius, Outside of Tire6232mm
    Turning Radius, Center of Tire5932mm
    Turning Radius, Bucket Carry6913mm
    Service Capacities
    Fuel tank330L
    Engine oil30L
    Cooling system58L
    Hydraulic tank210L
    Gear box and converter45L
    Driving axles (F/R)34L
