SWD165Y Earth Moving Machines 165hp Crawler Type Tractor Bulldozer for Engineering

    Buy cheap SWD165Y Earth Moving Machines 165hp Crawler Type Tractor Bulldozer for Engineering from wholesalers

    Buy cheap SWD165Y Earth Moving Machines 165hp Crawler Type Tractor Bulldozer for Engineering from wholesalers
    • Buy cheap SWD165Y Earth Moving Machines 165hp Crawler Type Tractor Bulldozer for Engineering from wholesalers

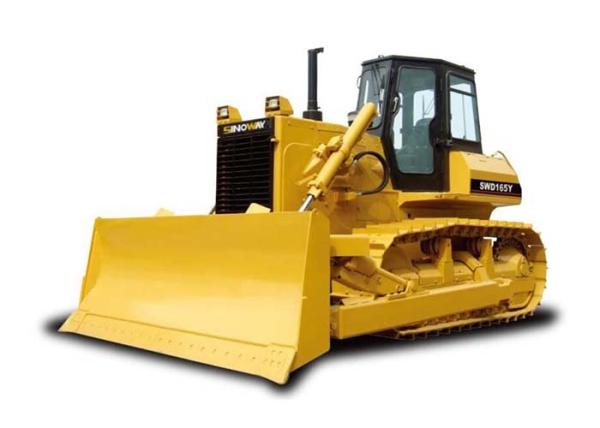

    SWD165Y Earth Moving Machines 165hp Crawler Type Tractor Bulldozer for Engineering

    Ask Lasest Price
    Brand Name : SINOWAY
    Model Number : SWD165Y
    Certification : ISO9001
    Price : Negotiation
    Payment Terms : T/T, L/C, D/A, D/P
    Supply Ability : 2000 units per year
    Delivery Time : 30 days
    • Product Details
    • Company Profile

    SWD165Y Earth Moving Machines 165hp Crawler Type Tractor Bulldozer for Engineering

    SWD165Y Earth Moving Machines 165hp Crawler Type Tractor Bulldozer for Engineering


    Earthmoving Machinery

    Sinoway supply a broad line of crawler bulldozers, including compact models, small and large construction bulldozers, mining dozers and swamp bulldozer. Whether your application is moving dirt from construction sites, landscaping residential areas, or even breaking limestone at a mine pit, Sinoway bulldozers will meet your needs.
    With the maturest technology introduced, Sinoway offers both flat design track dozers as Komatsu and elevated track bulldozers as Caterpillar. As a supplement, Sinoway provide also wheeled bulldozer for your application which crawler dozers are not allowed. From a wide horsepower range of 80HP to 430HP, with various blade types and attachments available, the last thing now is just selecting the right bulldozer for your application.

    Main Advantages

    The appearance of the vehicle is based on optimization design.

    High engine power reservestrong torque outputlow fuel consumptionreliable controls.

    Hydraulically poweredautomatic speed change shift the gears without stop the vehicle.3 elementssingle stage and single phase torque convertor features high efficiency and capacity.The updated hexahedral cab features outstanding visibility and good tightness.Using the triangle spline and the gear of crowned teeth and tip relief in the final drive to average the loads on the trans-mission components for more stabilityprolong the lifetime.New blade is more durable and capacious. Alarming & monitoring system is reliable.Reliable manual- operated spool valve and external mounted valve for easy maintenance.


    Engine
    ModelWEICHAI WP10G
    TypeSix-cylinder,water-cooled turbocharged,mechanical injection
    Rated power131KW
    Rated speed1900rpm
    Implement Hydraulic System
    Hydraulic flow rate243L/min
    Hydraulic pressure14MPa
    Pump typeDouble gear pump
    Control valveHydraulic operated,pilot control
    Under Carriage System
    SprocketSegmented
    Number of track rollers (each side)6
    Number of carrier rollers (each side)(4 single, 2 double)
    Number of front idler (each side)21
    Track typeSingle grouser
    Track tension1880mm
    Track pitch203mm
    Track width510mm
    Number of track shoes (each side)37
    Track length on ground2430mm
    Ground clearance400mm
    Main Technical Specification
    Operating weight(without ripper)17800Kg
    Ground pressure(without ripper)0.072MPa
    Grade ability58%
    Overall dimensions (L×W×H,without ripper)5085×3416×3254mm
    Max. tractive force139.6 KN
    Working Equipment
    Blade typeStraight
    Width3416mm
    Height1150mm
    Max. digging depth540mm
    Max. lift above ground1095mm
    Tilting angle8.5°
    Blade capacity4.5m3
    Transmission System
    Gear boxPower shift, forced lubrication,planetary gear
    Torque converter3 elements, single stage,single phase
    Final driveSpur gear, double reduction,splash lubricated
    Gear shifts(Forward/Reverse)Travelling speed(km/h)F3/R3
    Forward/Reverse I3.3/4.0
    Forward/Reverse II6.3/8.0
    Forward/Reverse III11.4/13.9
    Service Capacities
    Fuel tank315L
    Water tank62.8L
    Steering clutchHydraulically actuated, multiple-disc oil clutches,spring pressed,hydraulic separated
    Steering brakeOil, two-direction floating band with mechanism foot pedals, hydraulic boosted.
