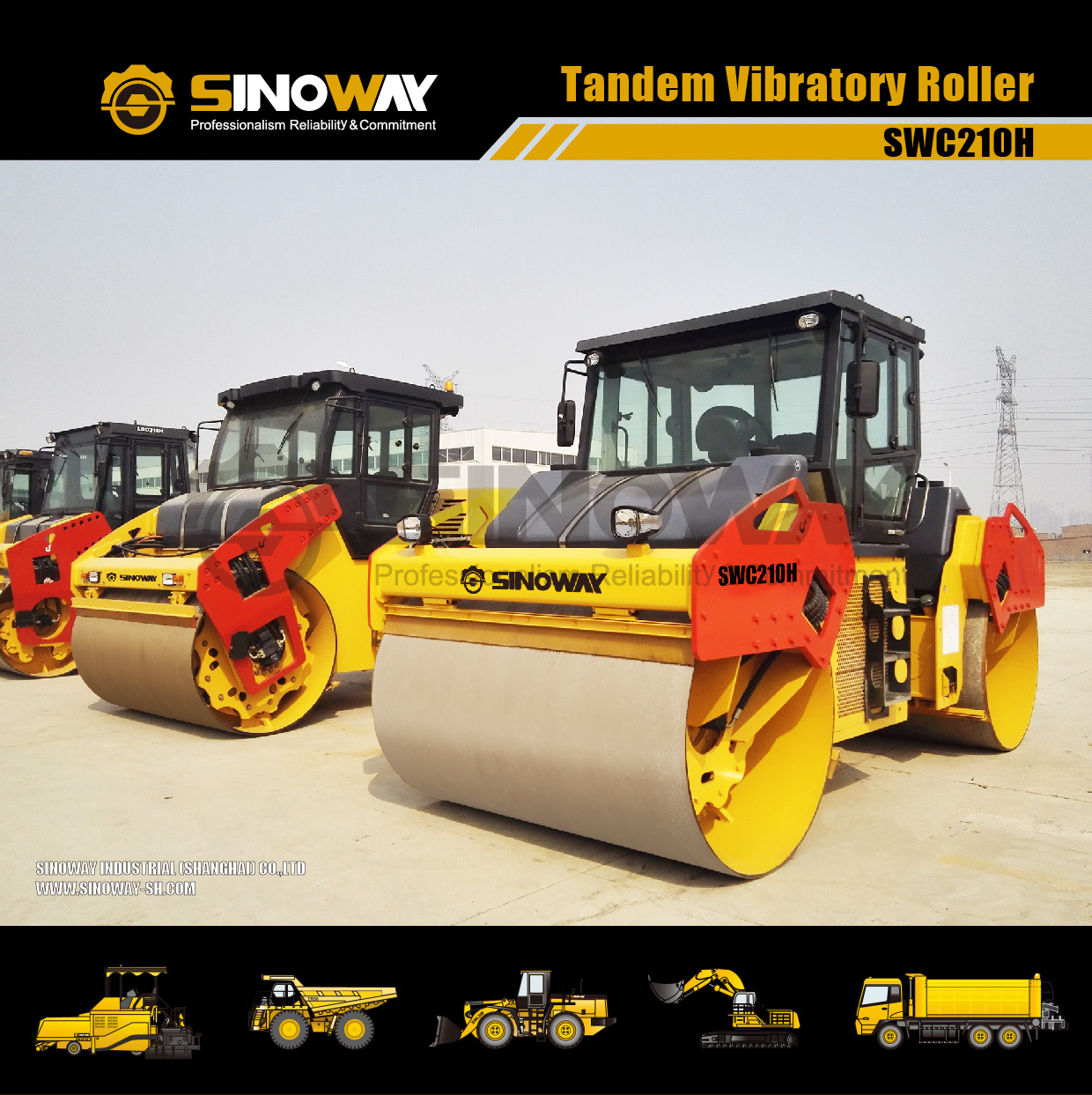

10 ton Cummins engine Tendam Vibratory Road Roller for road construction and Road paving

    Buy cheap 10 ton Cummins engine Tendam Vibratory Road Roller for road construction and Road paving from wholesalers

    Buy cheap 10 ton Cummins engine Tendam Vibratory Road Roller for road construction and Road paving from wholesalers
    • Buy cheap 10 ton Cummins engine Tendam Vibratory Road Roller for road construction and Road paving from wholesalers

    10 ton Cummins engine Tendam Vibratory Road Roller for road construction and Road paving

    Ask Lasest Price
    Brand Name : SINOWAY
    Model Number : SWC210H
    Certification : ISO9001
    Price : Negotiation
    Payment Terms : T/T, L/C, D/A, D/P
    Supply Ability : 3000 units per year
    Delivery Time : 30 days
    • Product Details
    • Company Profile

    10 ton Cummins engine Tendam Vibratory Road Roller for road construction and Road paving

    Building Construction Machinery

    Hydraulic double drum vibratory rollers are manufactured according to international advanced technology and by use of imported main components abroad, suitable for compaction of various stabilized soils, bituminous concrete and rolling cement concrete (RCC) on road surface construction, also for compaction of road base course, which are universal compaction equipments for high-class highway, airport, harbors, dams, municipal road and industrial ground.

    Sinoway tandem vibratory road roller range covers from 0.77 ton for asphalt repairing work, to 14 ton tandem road roller with vibration for your extra heavy duty requirement. As our single drum road roller, both mechanical transmission and hydrostatic transmission tandem road roller are available. Our hydraulicdouble drum vibratory road roller is designed with dual amplitude and frequency, which will enable your compaction of difference layers of asphalt with the same high productivity as well as best effectiveness.

    Main Advantages

    COMMINS water cooled diesel engine with rich power surplus,Hydrostatic all-drum travel drive by imported hydraulic motors at two range infinitely variable speeds.

    Dual frequency and amplitudes vibration system with imported piston pump and motors.
    Center articulated steering with crabwalk unit for flexible maneuverability.
    Flexible and non-impact technology on our vibratory rollers extends the vibratory bearing’s working life to beyond 10,000 hours increasing productivity and reducing wear.

    Innovative auto throttle reduces fuel consumption by automatically switching the engine to idling mode during periods of inactivity.

    Soft starting and braking technology significantly improves the operator’s experience helping to reduce pavement damage and ensure a high quality finish to every job.

    Comfortable and spacious operator’s cab with dual steering wheels and seats for convenient operations.

    Electric power sprinkler system with large capacity reinforced polyethylene water tank.


    Engine
    ModelCummins
    TypeFour-cylinder,water-cooled,turbo-charged, mechanical injection
    Rated power82KW
    Rated speed2200rpm
    Transmission System
    TypeHydraulic drive
    Grade ability40%
    Travelling speed (km/h)
    Forward/Reverse0 - 14
    Travelling pumpSauer piston pump
    Travelling motorSauer piston motor
    Axle
    Drive typeDual wheel drive
    Front axle load5000Kg
    Rear axle load5000Kg
    Main Technical Specification
    Operating weight10000Kg
    TypeHydraulic vibration
    Frequency40/50Hz
    Amplitude0.74/0.35mm
    Static linear load235/235N/cm
    Vertical oscillation12º
    Drum shell thickness20mm
    Centrifugal force100kN x 2 / 75KN x 2
    Steering System
    TypeHydraulic articulated steering
    Steering cylinderTwo cylinders
    Steering pumpGear pump
    Working pressure13MPa
    Steering angle±35°
    Min. steering radius6000mm
    Braking System
    Service brakeHydraulic
    Parking brakeHydraulic
    Dimensions
    Overall length4670mm
    Overall width2290mm
    Overall height3000mm
    Drum width2130mm
    Drum dia.1400mm
    Ground clearance325mm
    Wheelbase3300mm


    Quality 10 ton Cummins engine Tendam Vibratory Road Roller for road construction and Road paving for sale
