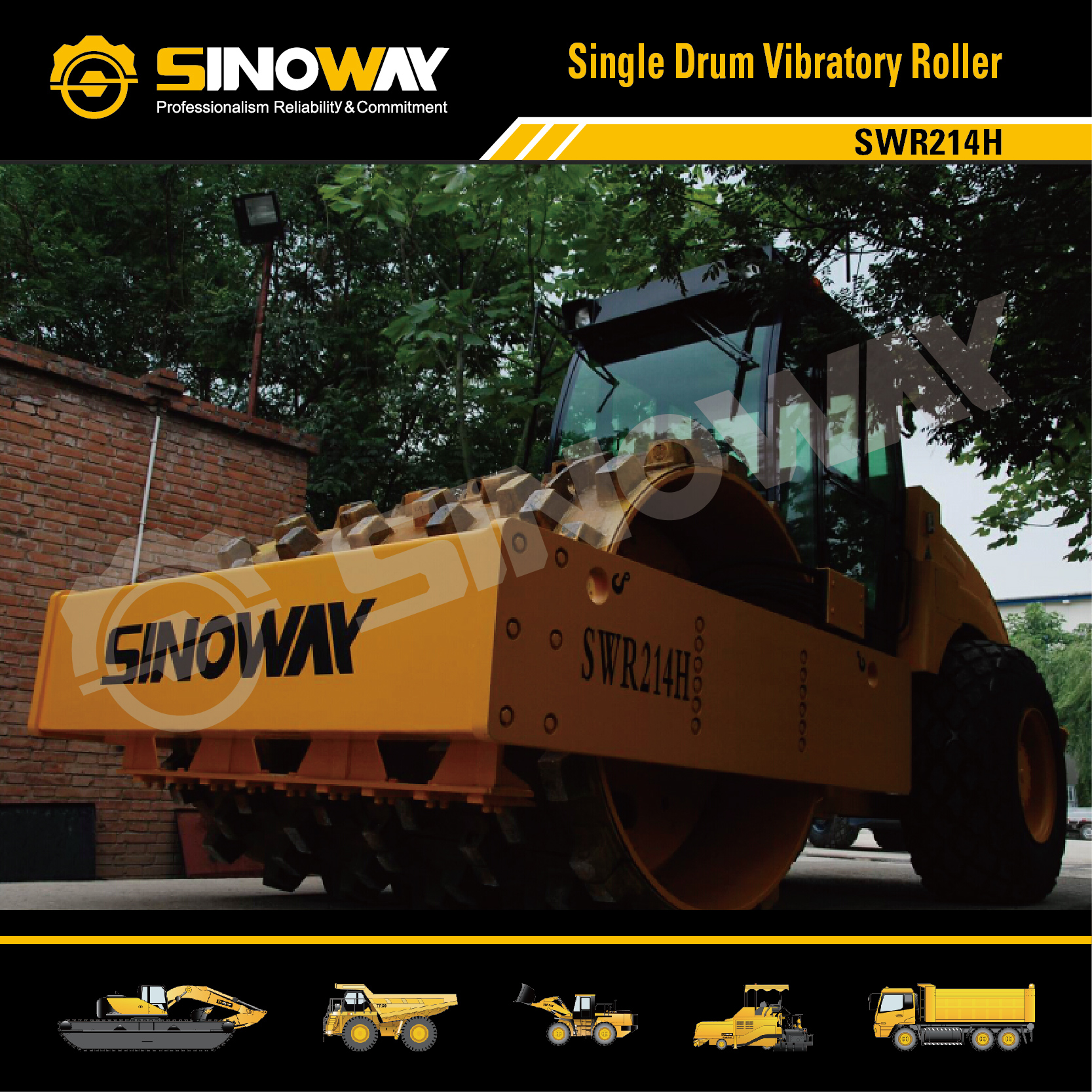

    14ton Smooth Drum Vibratory Roller Hydraulic Road Roller for soil compaction

    Ask Lasest Price
    Brand Name : SINOWAY
    Model Number : SWR214H
    Certification : ISO9001
    Price : Negotiation
    Payment Terms : L/C, D/A, D/P, T/T, Western Union
    Supply Ability : 2000 units per year
    Delivery Time : 30 days
    • Product Details
    • Company Profile

    14ton Smooth Drum Vibratory Roller Hydraulic Road Roller for soil compaction

    Building Construction Equipment

    A road roller is a compactor type engineering vehicle used to compact soil, gravel, concrete, or asphalt in theconstruction of roads and foundations. Similar rollers are used also at landfills or inagriculture.

    Sinoway SWR214H soil compactors are suitable for compaction of non-cohesive materials such as gravel, crushed stone, sand-macadam mixture, sandy soil and rock filling etc. on base course, sub-base and embankment fill construction,which are ideal equipment for high-class highway, railway, airport, harbors, dams and large-scale industrial ground.

    Highlights

    Cummins turbocharged diesel engine with rich power surplus in good performance above an elevation of 4000 meters.

    Hydrostatic transmission, vibration drive and stepless speed regulating.
    Dual frequency & dual amplitude and super centrifugal force create strong compacting effect.
    Dismountable PD model consist of 3 segments as optional.

    Reasonable configuration, reliable performance, and high working efficiency hydraulic components
    Operator's cabin is designed for comfort and safety whether fully-adjustable or suspension-mounted operator's seat.
    Engine mounted with backward power output and turnover engine hood allow easy access to the main hydraulic components.

    Engine
    ModelCummins
    TypeSix-cylinder,water-cooled,turbocharged, mechanical injection
    Rated power110kw
    Rated speed2300rpm
    Transmission System
    TypeHydraulic drive
    Grade ability35%
    Travelling speed (km/h)
    Forward/Reverse0 - 11
    Travelling pumpSauer/Rexroth piston pump
    Travelling motorSauer/Rexroth piston motor
    Axle
    Drive typeDual wheel drive
    Front axle load7700Kg
    Rear axle load6300Kg
    Main Technical Specification
    Operating weight14000Kg
    TypeHydraulic vibration
    Frequency29/35Hz
    Amplitude0.9 / 1.8mm
    Static linear load400N/cm
    Vertical oscillation
    Drum shell thickness24mm
    Centrifugal force (high ampl.)290KN
    Centrifugal force (low ampl.)180KN
    Working pressure42MPa
    Steering System
    TypeHydraulic articulated steering
    Steering cylinderTwo cylinders
    Steering pumpGear pump
    Working pressure13MPa
    Steering angle± 35°
    Min. Steering radius7500mm
    Braking System
    Service brakeOil -cut off brake
    Parking brakeHand operated drum brake
    Service Capacities
    Hydraulic tank180L
    Drive axle central gear box25L
    Fuel tank200L
    Engine crank case19L
    Dimensions
    Overall length5820mm
    Overall width2278mm
    Overall height3050mm
    Drum width2100mm
    Wheel base3160mm
    Drum Dia.1600mm
    Tyre size23.1-26
    Ground clearance472mm
    Optional
    Pad foot
    Compaction meter
