    Road Construction Earth Moving Machinery

    Ask Lasest Price
    Brand Name : SINOWAY
    Model Number : SWWD220X
    Certification : ISO9001
    Price : Negotiation
    Payment Terms : T/T, L/C, D/A, D/P
    Supply Ability : 2000 units per year
    Delivery Time : 30 days
    • Product Details
    • Company Profile

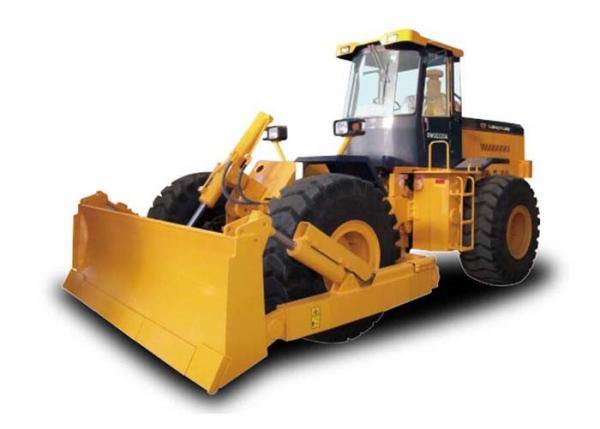

    Road Construction Earth Moving Machinery

    Earthmoving Machinery
    SWWD220X wheeled Bullldozer empolys the drive system, processed with military industrial technology and with good preformance, big tractive force and high efficiency. With full hydraulic articulated steering and all wheel drive. It is easy and flexible to operate.
    Sinoway Industrial (Shanghai) Co., Ltd is a top package equipment solution provider in China especially for vehicle, construction machinery and mining equipment. As a professional procurement and supply chain service provider, we are always committed to offer our respectable customer high quality products with reliable performance, competitive price and sincere services ensuring every engineering project to be run smoothly and on schedule. With over 20 years' experience in the field of engineering industry and accompanying to fulfill strictly ISO 9001:2008 standard, Sinoway is ready to provide products and services to our clients with professionalism, reliability and commitment. As a professional procurement and supply chain service provider for construction machinery, vehicles and mining equipment, we had established and have been consistently keeping good business relationship with many world famous general contractors like Vinci Construction, China State Construction Engineering Corporation, Enka Group and, as well as many local civil engineering & building companies throughout the world. The bigger projects in which we participated as package equipment provider previously are including the airport project in Algeria, the power plant project in Indonesia, the dredging project in Nigeria, the national No.1 highway project in Congo, the biggest landfill plant project in Kuwait, the rural and municipal road project in Libya and, still we are achieving to offer our equipment and service to more and more projects at present.


    Main Advantages
    High speed, large pulling force, and can tow 25 tons flatbed trailer or transporting large materials.
    Fully hydraulic steering, operated easily, flexible and reliable, good performance of straight line traveling.
    Hydraulic disc brake, good brake result, and easy to maintenance.

    Engine
    ModelWEICHAI
    TypeSix-cylinder,water-cooled,turbocharged,mechanical injection
    Rated power162KW
    Rated speed2200rpm
    Implement Hydraulic System
    Integral multi-valveDF32.2F3A
    Hydraulic pressure16MPa
    Pump typeGear pump
    Driving And Tyre
    Driving type4 wheel drived
    Tyre size23.5-25
    Tyre pressure0.3~0.32Mpa
    Electrical System
    System voltage24V
    Battery6-QW-120(2pcs)
    Lamp voltage24V
    Starting voltage of diesel24V
    Main Technical Specification
    Operating weight16500Kg
    Grade ability47%
    Overall dimensions (L×W×H)7214×3390×3380mm
    Max. tractive force130KN
    Wheel base3470mm
    Tread2240mm
    Working Equipment
    Blade typeStraight
    Width3390mm
    Height1000mm
    Max. digging depth400mm
    Max. lift above ground1000mm
    Transmission System
    Torque ratio3.7
    Gear boxCounter-shaft transmission
    Bevel gearOne-stage spiral bevel gear deceleration
    Wheel reducerOne-stage spur gear deceleration
    Gear shifts(Forward/Reverse) Travelling speed(km/h)F2/R1
    Forward/Reverse I13/17
    Forward II38
    Steering System
    TypeCo-axis flow amp.articulated steering
    Bore of cylinder/stroke2-Φ100mm/360mm
    Working system pressure15Mpa
    Steering angle35°~36°
    Braking System
    Traveling brakingAir-pushing-oil disc brake on four wheels
    Parking brakingInternal expanding with double horseshoe
    Service Capacities
    Fuel tank230L
    Water tank70L
    Implement oil tank110L
