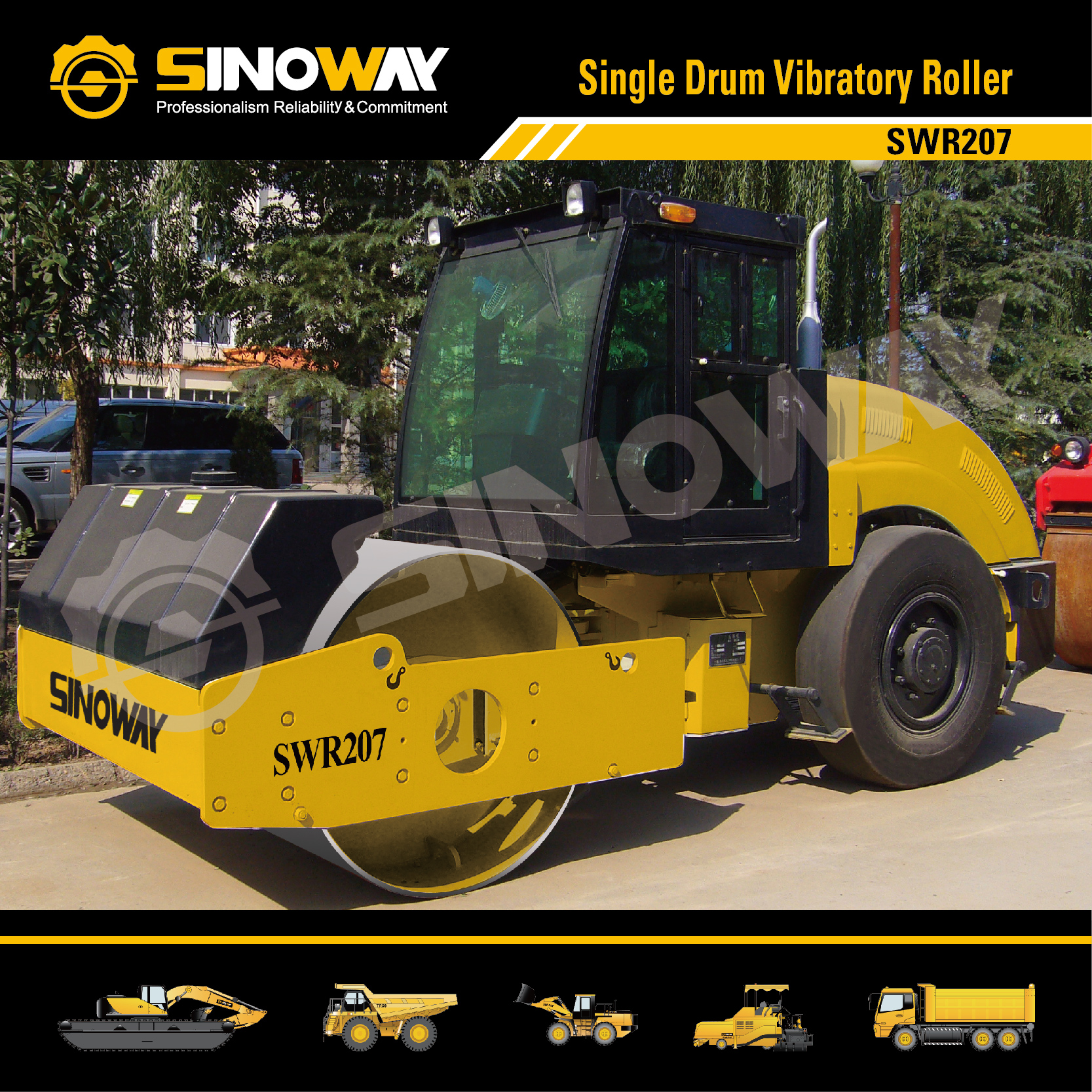

    Road Construction equipment 7 ton Soil compactor Single drum vibratory roller

    Ask Lasest Price
    Brand Name : SINOWAY
    Model Number : SWR207
    Certification : ISO9001
    Price : Negotiation
    Payment Terms : T/T, L/C, D/A, D/P
    Supply Ability : 3000 units per year
    Delivery Time : 30 days
    • Product Details
    • Company Profile

    Road Construction equipment 7 ton Soil compactor Single drum vibratory roller

    Building Construction Equipment

    Road rollers are basically used for road construction. Soil compaction is executed for a long-lastingroad. The soil moisture content analysis determines the intensity of soil compaction that is necessary. Since heavy construction equipment is employed for road construction, safety on road construction workis essential.

    When it comes to soil compaction works, Sinoway soil compactor with various capacities is always the best choice for you. Sinoway vibratory road roller for soil compaction is designed with many innovative features that provide excellent compacting drum performance and operating comfort. We offer single drum road roller with smooth drums, as well as padfoot drum models, both fixed and removable types are available. Whether you are compacting cohesive loam or granular gravel-sands, Sinoway vibrator road rollers are devoted to maximum your compaction effectiveness and efficiency, and minimum your cost.
    Sinoway vibratory road roller starts from 7 tons up to 22 tons’ operating weight, with both mechanical transmission and full hydrostatic transmission available. Our single drum road roller series have been contributing to compacting applications like trenches and backfill, air port construction, foundation works, subbases and bases construction and dam construction, etc.

    Main Feature

    Heavy duty water cooled diesel engine.

    Mechanical travel drive, hydraulic vibration and articulated steering and the whole roller with optimal function/worth ratio and reliable performance.

    Hand brake and foot pedal brake assure the machine’s safety and dependability.

    The gearbox is laid behind the roller, completely opened engine hood offers the optimal the maintenance space.

    Electrical sprinkling on the front and rear drum. Spacious and comfortable driver’s cab.

    Engine
    MakeXINCHAI
    Type

    Four-cylinder,water-cooled

    normally aspirated,mechanical injection

    Rated power37kw
    Rated speed2000rpm
    Transmission
    TypeMechanical driven
    Grade ability25%
    Gear shifts(Forward/Reverse)F3/R3
    Travelling speed (km/h)
    Forward/Reverse I2.2/2.2
    Forward/Reverse II4.7/4.7
    Forward/Reverse III15/15
    Axle
    Drive typeRear wheel drive
    Front axle load4000Kg
    Rear axle load3000Kg
    Main technical specification
    Operating weight7000Kg
    TypeHydraulic vibration
    Frequency43Hz
    Amplitude0.4mm
    Static linear load215N/cm
    Vertical oscillation10º
    Drum shell thickness20mm
    Centrifugal force70KN
    Dimension
    Overall length5180MM
    Overall width1920mm
    Overall height2830mm
    Drum width1700mm
    Drum Dia.1220mm
    Tyre size12.00-24
    Ground clearance400mm
