    19ton Soil Moving Machinery Mobile Excavator

    Ask Lasest Price
    Brand Name : SINOWAY
    Model Number : SWEL190
    Certification : ISO9001
    Price : Negotiation
    Payment Terms : T/T, L/C, D/A, D/P
    Supply Ability : 5000 units per year
    Delivery Time : 30 days
    • Product Details
    • Company Profile

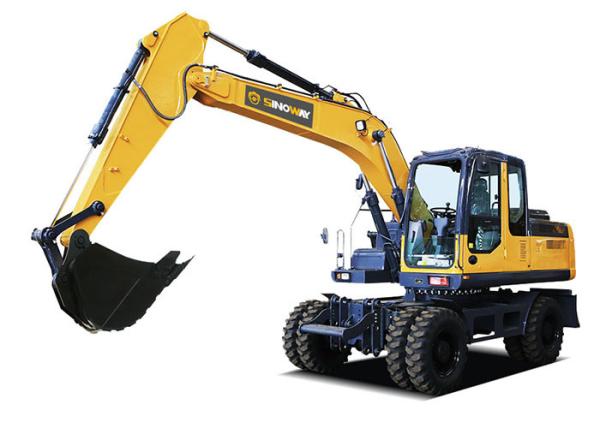

    19ton Soil Moving Machinery Mobile Excavator

    Earth Moving Equipment

    With its mobility, speed and compact design, Sinoway offers a range of extremely robust and powerful wheeled excavator with decisive application advantages. The maneuverability of the mobile excavator greatly increase the working efficiency, the compact design makes our wheeled excavator well suited, almost for every location. When it comes to operating, Sinoway wheeled excavators deliver a powerful performance meanwhile offer you a roomy comfort stress-free workplace. The maximum volume of 0.9m3 bucket ensures high productivity, and a long reach boom extends the operating radius of the excavator.
    With the same key components as Sinoway crawler excavator, our wheeled excavator plays a significant role in the excavating working sites. The Sinoway wheeled excavators are characterized by a markedly positive performance VS cost ratio.

    Features

    Originally Cummins engine meets Euro II emission standards, featuring big torque and strong power, especially suitable for heavy load operation.

    The work rate of the hydraulic excavator is directly linked to the performace of its operator. SINOWAY designed the SWEL190 by putting the operator at the centre of the development goals. The result is significant ergonomic value that improves the efficiency and safety of the operator.

    The performance of the SWEL190 has a direct effect on its productivity. Its new "Common Rail" engine and new generation controlled hydraulic system have combined to create an unbeatable hydraulic excavator, with a cost/performance ratio that makes the mobile excavator even more appealing.

    The reliability of an item of plant contributes to its overall lifetime operating costs. We uses computer-assisted design techniques, highly durable materials and structures then test these under extreme conditions. Durability of materials and longevity of structures are our first priorities.

    Engine
    ModelCummins B5.9
    TypeFour-cylinder,water-cooled turbocharged,mechanical injection
    Rated power129KW
    Rated speed2100rpm
    Main Technical Specification
    Operating weight20000Kg
    Standard bucket capacity0.8m3
    Slewing speed12.5rpm
    Stick digging force95KN
    Bucket digging force120KN
    Travelling System
    TypeFront and rear axle driving, with wheel hub and front axle steering
    Travelling speed28km/h
    Grade ability40%
    Dimensions
    Overall length9515mm
    Overall width2715mm
    Overall height of boom3860mm
    Overall height of cab3060mm
    Engine cover height2630mm
    Counterweight clearance1360mm
    Ground clearance300mm
    Upperstructure width2685mm
    Rear-end length/Slewing radius2845mm
    Wheel base2960mm
    Overall width of blade2400mm
    Overall height of blade630mm
    Front overhang1425mm
    Overall width with outrigger extended3780mm
    Rear overhang1094mm
    Operating Scope
    Stick length2400mm
    Max. cutting height9610mm
    Max. dumping height6635mm
    Max. digging depth5970mm
    Max. reach8860mm
