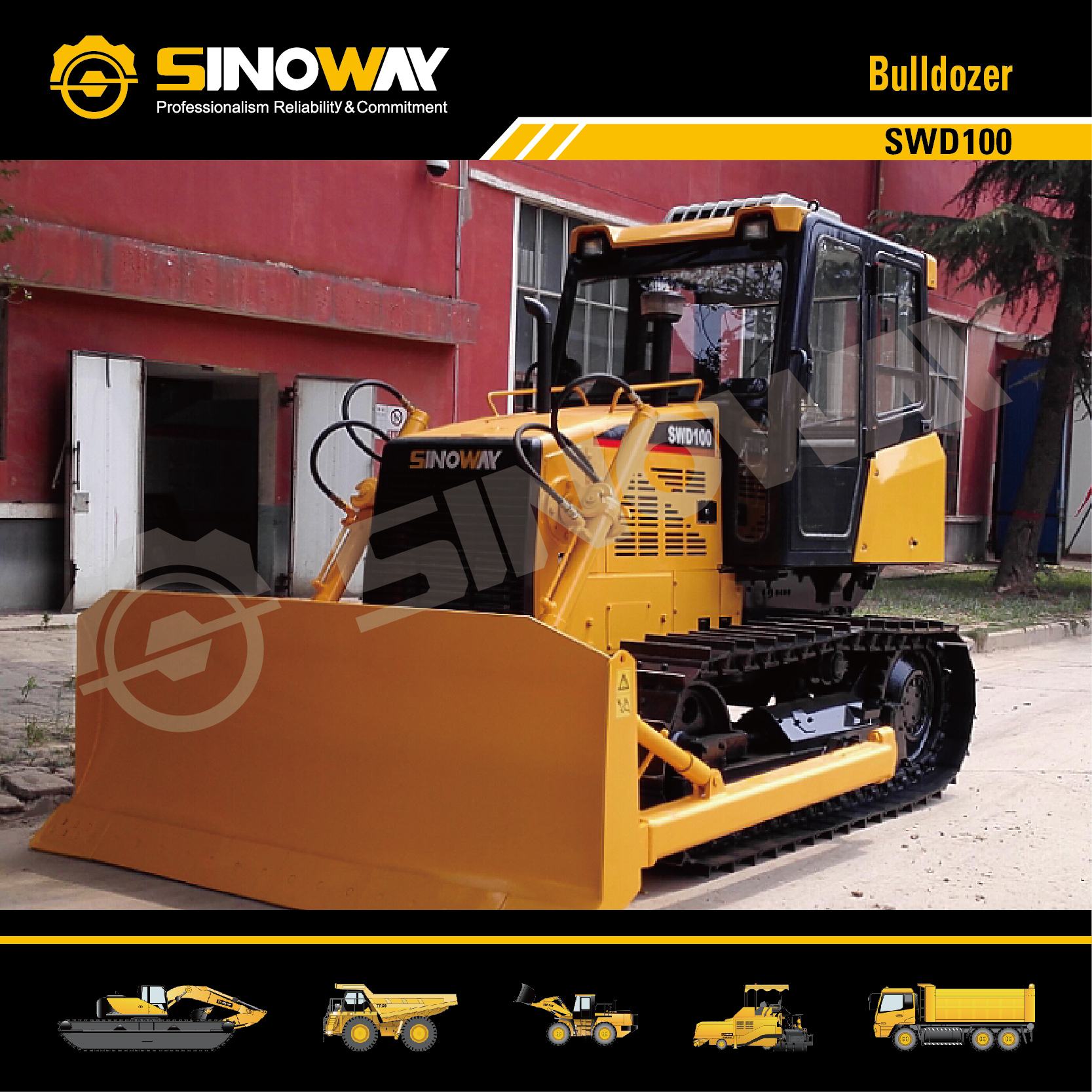

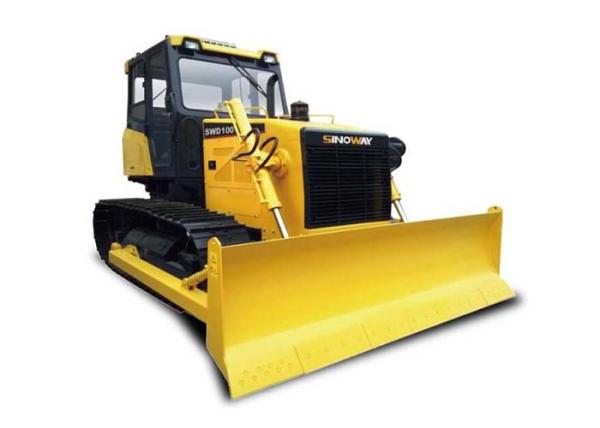

Oil Moving Equipment Farmland And Engineering 100hp Bulldozer Track
Type Tractor
Earthmoving Machinery
A bulldozer or dozer is a crawler equipped with a substantial metal
plateused to push large quantities of soil, sand, rubble, or other
such materialduring construction or conversion work and typically
equipped at the rearwith a claw-like device to loosen densely
compacted materials
Sinoway supply a broad line of crawler bulldozers, including
compact models, small and large construction bulldozers, mining
dozers and swamp bulldozer. Whether your application is moving dirt
from construction sites, landscaping residential areas, or even
breaking limestone at a mine pit, Sinoway bulldozers will meet your
needs.
With the maturest technology introduced, Sinoway offers both flat
design track dozers as Komatsu and elevated track bulldozers as
Caterpillar. As a supplement, Sinoway provide also wheeled
bulldozer for your application which crawler dozers are not
allowed. From a wide horsepower range of 80HP to 430HP, with
various blade types and attachments available, the last thing now
is just selecting the right bulldozer for your application.
Main Advantages
Engine: choose the pressure rising engine produced by British
Ricardo joint-venture technology, lower oil consumption and
stronger torsion.
Main clutch comprises of dry, dual-sheet and common are combined
with and it features simple construction, more reliable and easier
maintenance.
Gearbox is applied to 4F plus 2R mechanical shift, and it features
higher efficiency, simple operation, easier maintenance and more
reliable operation.
Turning clutch: choose dry and multi-piece turning clutch, manually
operating with hydraulic pressure, easily maintenance, lightly and
convenient operation.
Transmissions: choose two classes, straight teeth, big modulus gear
transmission, stronger in carrying capacity and higher in
reliability.
Operation device: several devices such as direct-pouring shovel,
environmentally hydraulic, angle shovel, coal-pushed shovel and
soil scarifier are available for user.
| Engine | |
| Model | RICARDO tech diesel engine LR6A3 |
| Type | Six-cylinder,water-cooled normally aspirated,mechanical injection |
| Rated power | 73.5KW |
| Rated speed | 2300rpm |
| Implement Hydraulic System | |
| Hydraulic flow rate | 115L/min |
| Hydraulic pressure | 16MPa |
| Pump type | Gear pump |
| Control valve | Hand operated |
| Under Carriage System | |
| Sprocket | Integral |
| Number of track rollers (each side) | 6 |
| Number of carrier rollers (each side) | (4 single, 2 double) |
| Number of front idler (each side) | 11 |
| Track type | Single grouser |
| Track tension | Hydraulic |
| Track pitch | 171mm |
| Track width | 450mm |
| Number of track shoes (each side) | 39 |
| Track length on ground | 2160mm |
| Ground clearance | 368mm |
| Main Technical Specification | |
| Operating weight(without ripper) | 10000Kg |
| Ground pressure(without ripper) | 0.054MPa |
| Grade ability | 58% |
| Overall dimensions (L×W×H,without ripper) | 4190×2935×2982mm |
| Max. tractive force | 81KN |
| Working Equipment | |
| Blade type | Straight |
| Width | 2935mm |
| Height | 960mm |
| Max. digging depth | 350mm |
| Max. lift above ground | 830mm |
| Tilting angle | 8.5° |
| Blade capacity | 3.5m3 |
| Transmission System | |
| Gear box | Mechanical |
| Bevel gear | One pair spiral bevel gear |
| Final drive | One pair columnar gear floating sealing |
| Gear shifts(Forward/Reverse)Travelling speed(km/h) | F4/R2 |
| Forward/Reverse I | 2.6~10.4 |
| Forward/Reverse II | 3.7~6.7 |
| Service Capacities | |
| Fuel tank | 250L |
| Water tank | 22L |
| Implement oil tank | 30L |
| Steering clutch | Dry multi-plate, floating control |
| Steering brake | Mechanical pedal control |
