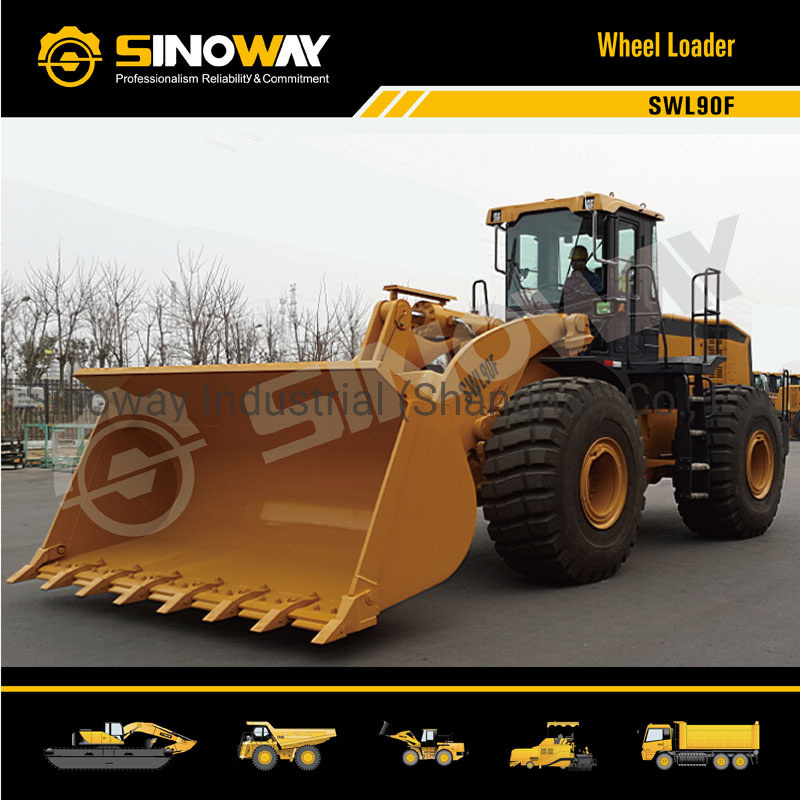

    Large Earth Moving Equipment 340hp Mining Wheel Loader 30 Ton Engineering Front End Loader

    Ask Lasest Price
    Brand Name : SINOWAY
    Model Number : SWL90F
    Certification : ISO9001
    Price : Negotiation
    Payment Terms : T/T, L/C, D/A, D/P
    Supply Ability : 500 units per year
    Delivery Time : 60 days
    • Product Details
    • Company Profile

    Large Earth Moving Equipment 340hp Mining Wheel Loader 30 Ton Engineering Front End Loader

    Soil Moving Machinery

    Wheel Loaders, or front-end loaders, are a type of heavy equipment machine that is primarily used for moving or loading large amounts of material such asasphalt, demolition debris, dirt, snow, feed, gravel, logs, raw minerals, recycled material, rock, sand, woodchips, etc. While Wheel Loaders typically feature a large general-purpose bucket, these machines can be outfitted with other various attachment.
    Sinoway offers a complete line of wheel loaders, covering from maneuverable compact wheel loader to productive heavy wheel loader. With world-class components used and more care built in, you will surely feel the robust power with comfort operating by experiencing our new F series models of front end bucket loader.
    Sinoway wheel loaders are widely employed in the digging, transporting and loading construction materials like soil, sand and gravel. With various configurations, Sinoway wheel loader is devoted to meet both your applications as well as your budgets. Thanks to our variety of attachments for wheel loader, Sinoway even extend your loading applications to mining,farming, stockpile scooping, snow plowing, logging and timber industry.

    Main Features

    Equipped with Cummins engine. This power house has been designed to deliver impressive acceleration and torque output, along with a serious bucket filling and lifting capability which greatly increases cycle times and earning potential.

    Reinforced rock bucket with thickened plate is made especially for loading aggregates in mines.

    Heavy-duty wet type brake axle and braking system ensure the reliability and durability of the product even under tough work conditions.

    Faster cycle times are made easy with the machine's power combination. The engine is teamed up with a four speed, ZF smooth shifting transmission. This combination optimizes power and fuel efficiency, day after day, increasing bucket breakout force and loading capability. To this, we've added larger, high capacity axles which make light work of the toughest terrain and intelligent hydraulics for low-engine speed performance, quick steering response and rapid boom up speeds. We put this power right in your operator's hands with simple and intuitive controls designed to get the job done faster and more effectively every cycle.

    ROPS & FOPS cabin with air conditioner.


    Engine
    ModelCummins
    TypeSix-cylinder,air to air cooled,turbocharged,electronic injection
    Rated power250KW
    Rated speed2100rpm
    Main Technical Specification
    Rated load9000Kg
    Operating weight29500Kg
    Rated bucket capacity5.0m3
    Max. breakout force260KN
    Max. dump clearance3300mm
    Dump reach1470mm
    Dump angle at any position40o
    Digging depth (with bucket bottom horizontal)250mm
    Min. turning radius6200mm
    Lifting time of bucket≤7.0s
    Lowering time of bucket≤4.3s
    Dumping time≤1.2s
    Implement Hydraulic System
    Model of oil pumpGear pump
    System pressure20MPa
    Model of multi-way directional valveRexroth
    Priority valveRexroth
    Axle And Tyre
    Axle modelZF
    Type of final reducerSingle stage planetary
    Max. tractive force245KN
    Tyre size29.5R25
    Steering System
    TypeDouble-action pistion
    Model of steering pumpGear pump
    System pressure19MPa
    Articulated steering angle40°(L/ R)
    Transmission System
    Torque Converter
    ModelZF
    Type3 elements, single stage
    Cooling typePressure oil circulating
    Gear box
    ModelZF
    TypePower shift
    Gear shifts(Forward/Reverse)F4/R3
    Travelling speed(km/h)
    Forward/Reverse I7.0/7.0
    Forward/Reverse II11.6/11.6
    Forward/Reverse III24.5/24.5
    Forward IV35.5
    Dimensions
    Overall length(with bucket on ground)9400mm
    Overall width(to outside of wheels)3500mm
    Overall height(to the top of the cab)3770mm
    Bucket width3500mm
    Wheel base3600mm
    Tread2460mm
    Ground clearance520mm
    Service Capacities
    Fuel tank420L
    Engine crank case33L
    Converter and gear box64L
    Hydraulic tank340L
    Braking System
    Service brakeFull hydraulic
    Emergency brakeWet disc brake
    Parking brakeWet disc brake
