Brand Name : | SINOWAY |
Model Number : | SWSSL700A |
Certification : | ISO9001 |
Price : | Negotiation |
Payment Terms : | T/T, L/C, D/A, D/P |
Supply Ability : | 20000 units per year |
Delivery Time : | 30 days |

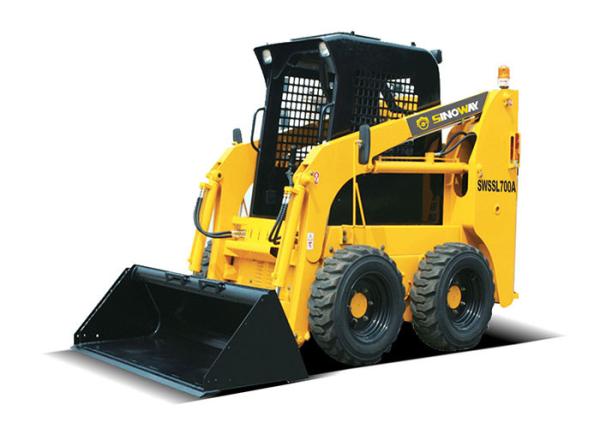

Narrow Construction Soil Moving Equipment Skid Steer Loader With Yanmar Enginer
Soil Moving Machinery
Skid steer loader is a kind of machine with lift armsused to attach
a wide variety of labor-saving tools or attachments suitable for
narrow working site, uneven ground and frequent change of work
contents. Skid loaders are typically small, rigid frame diesel
powered, four-wheel drive vehicles with the wheels mechanically
locked insynchronization on each side, and where the left-sidedrive
wheels can be driven independently of the right-side drive wheels.
Turning is accomplished by differential steering, inwhich the left
and right wheel pairs are operated at different speeds, andthe
machine turns by skidding or dragging its fixed-orientation
wheelsacross the ground. The extremely rigid frame and strong wheel
bearingsprevent the torsional forces caused by this dragging motion
from damagingthe machine. The main advantage of skid steer loader
is that the size of the whole machine is small, and it can realize
in-situ steering. It can replace or connect various working
attachment randomly and quickly on the job site. Sinoway skid steer
loaders have two types, wheeled drive and tracked drive.
Main Features
Delivering unmatched performance, versatility, and ease of operation, the LiuGong Skid Steer Loader is ideal for construction, landscaping and agriculture as well as other key sectors.
Yanmar engine imported from Japan can perfectly match with the complete machine system, providing high fuel efficiency and excellent power.
Multiple attachments are provided to increase your flexibility, enabling you to handle many jobs with just the one machine.
Using of simulation technology to learn the mission data at travelling and working conditions helped optimizing power and fuel efficiency.
Main Technical Specification | |
Engine model | YANMAR |
Engine power | 42.1kW / 57Hp |
Rated loading capacity | 700kg |
Tipping load capacity | 1400kg |
Bucket capacity | 0.4m³ |
Hydraulic pump flow | 75L/min |
Operating weight | 3100kg |
Max travel speed | 12km/h |
Grade ability | 20° |
Tire size | 10-16.5 |
Fuel/hydro oil capacity | 65/65L |
Height at maximum extension | 3980mm |
Hinge pin height | 3080mm |
Total height | 2050mm |
Length with bucket | 3420mm |
Length without bucket | 2640mm |
Width with bucket | 1740mm |
Track width | 1450mm |
Wheelbase | 991mm |
Ground clearance | 185mm |
Dumping angle | 40° |
Dumping height | 2380mm |
Maximum reach | 750mm |
![]() |
