Highway Construction Soil Moving Equipment 8 Ton Mobile Excavator Wheel Excavator

    Buy cheap Highway Construction Soil Moving Equipment 8 Ton Mobile Excavator Wheel Excavator from wholesalers

    Buy cheap Highway Construction Soil Moving Equipment 8 Ton Mobile Excavator Wheel Excavator from wholesalers
    • Buy cheap Highway Construction Soil Moving Equipment 8 Ton Mobile Excavator Wheel Excavator from wholesalers

    Highway Construction Soil Moving Equipment 8 Ton Mobile Excavator Wheel Excavator

    Ask Lasest Price
    Brand Name : SINOWAY
    Model Number : SWEL80
    Certification : ISO9001
    Price : Negotiation
    Payment Terms : T/T, L/C, D/A, D/P
    Supply Ability : 5000 units per year
    Delivery Time : 30 days
    • Product Details
    • Company Profile

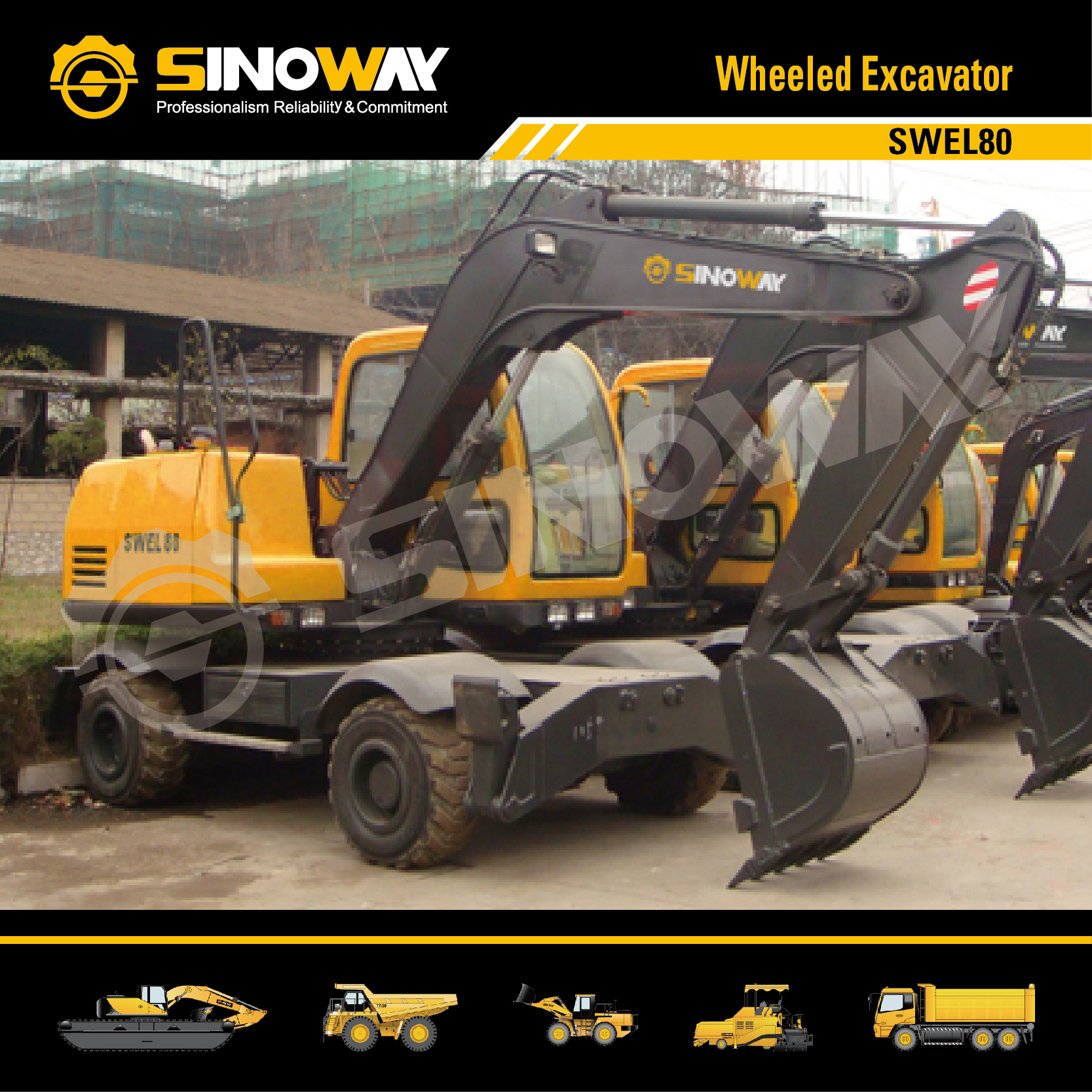

    Highway Construction Soil Moving Equipment 8 Ton Mobile Excavator Wheel Excavator

    Highway Construction Soil Moving Equipment 8 Ton Mobile Excavator Wheel Excavator


    Earth Moving Equipment

    With its mobility, speed and compact design, Sinoway offers a range of extremely robust and powerful wheeled excavator with decisive application advantages. The maneuverability of the mobile excavator greatly increase the working efficiency, the compact design makes our wheeled excavator well suited, almost for every location. When it comes to operating, Sinoway wheeled excavators deliver a powerful performance meanwhile offer you a roomy comfort stress-free workplace. The maximum volume of 0.9m3 bucket ensures high productivity, and a long reach boom extends the operating radius of the excavator.
    With the same key components as Sinoway crawler excavator, our wheeled excavator plays a significant role in the excavating working sites. The Sinoway wheeled excavators are characterized by a markedly positive performance VS cost ratio.

    Features

    Originally Cummins engine meets Euro II emission standards, featuring big torque and strong power, especially suitable for heavy load operation.

    With non-outrigger design and non-stop gear shifting, it features high speed, good site adaptability, and flexible transport.

    To ensure reliability, each model of excavator has passed the 2000-hour industrial test, and the rigorous test carried out by National Construction Machinery Quality Supervision and Inspection Center.

    Hydraulic components of international famous brand ensure high reliability of the hydraulic system.

    The cab uses anti-rollover and falling objects protection devices which meet the safety standards in various regions including China, EU etc. and the cab has obtained ROPS and FOPS certification.

    The filter element is arranged on one side of the main pump, and the maintenance work can be implemented on the ground.


    Engine
    ModelCUMMINS
    TypeFour-cylinder,water-cooled turbocharged,mechanical injection
    Rated power60KW
    Rated speed2200rpm
    Main Technical Specification
    Operating weight7800Kg
    Standard bucket capacity0.32m3
    Slewing speed12rpm
    Stick digging force41KN
    Bucket digging force61KN
    Travelling System
    TypeFront and rear axle driving, with wheel hub and front axle steering
    Travelling speed20km/h
    Grade ability40%
    Dimensions
    Overall length6355mm
    Overall width2204mm
    Overall height of boom3160mm
    Overall height of cab2835mm
    Engine cover height1988mm
    Counterweight clearance1055mm
    Ground clearance263mm
    Upperstructure width2200mm
    Rear-end length/Slewing radius2400mm
    Wheel base1850mm
    Overall width of blade2120mm
    Overall height of blade473mm
    Front overhang780mm
    Operating Scope
    Stick length2285mm
    Max. cutting height7270mm
    Max. dumping height5315mm
    Max. digging depth3940mm
    Max. reach6500mm
