    8000 L Asphalt Spayers 4X2 Automatic Road Building Asphalt Distributors

    Road Construction Equipment

    Sinoway is leading the way in asphalt distributor innovation and technology in China. With the precision control on spraying, Sinoway asphalt distributor is good for applications covering prime coat, water-proof coat, as well as the tack coat for highway construction projects. The versatility of our bitumen distributor enable the spaying of hot asphalt, emulsified asphalt and modified asphalt.
    Sinoway asphalt distributors are engineered to deliver accurate, uniform and economical applications of liquid asphalt. We have intelligent bitumen distributors with full automatic control, making a superior machine even better, and also provide the environmentally friendly and efficiency.
    Main Advantages

    It adopts heavy duty chassis, which has advantages of large bearing capacity, high power, low fuel consumption and emission, easy operation.
    Equipped with auxiliary engine, to realize the heating when walking, shorten work time , improve the work efficiency.
    Good anticorrosive and durable insulation layer makes sure the temperature drop no more than 12℃/8h (Under normal temperature ).
    The tank adopts international brand diesel burner, high combustion efficiency and high heating efficiency, automatic ignition and automatic temperature control system, operation security and stability. It adopts durable asphalt pump and heat oil pump.

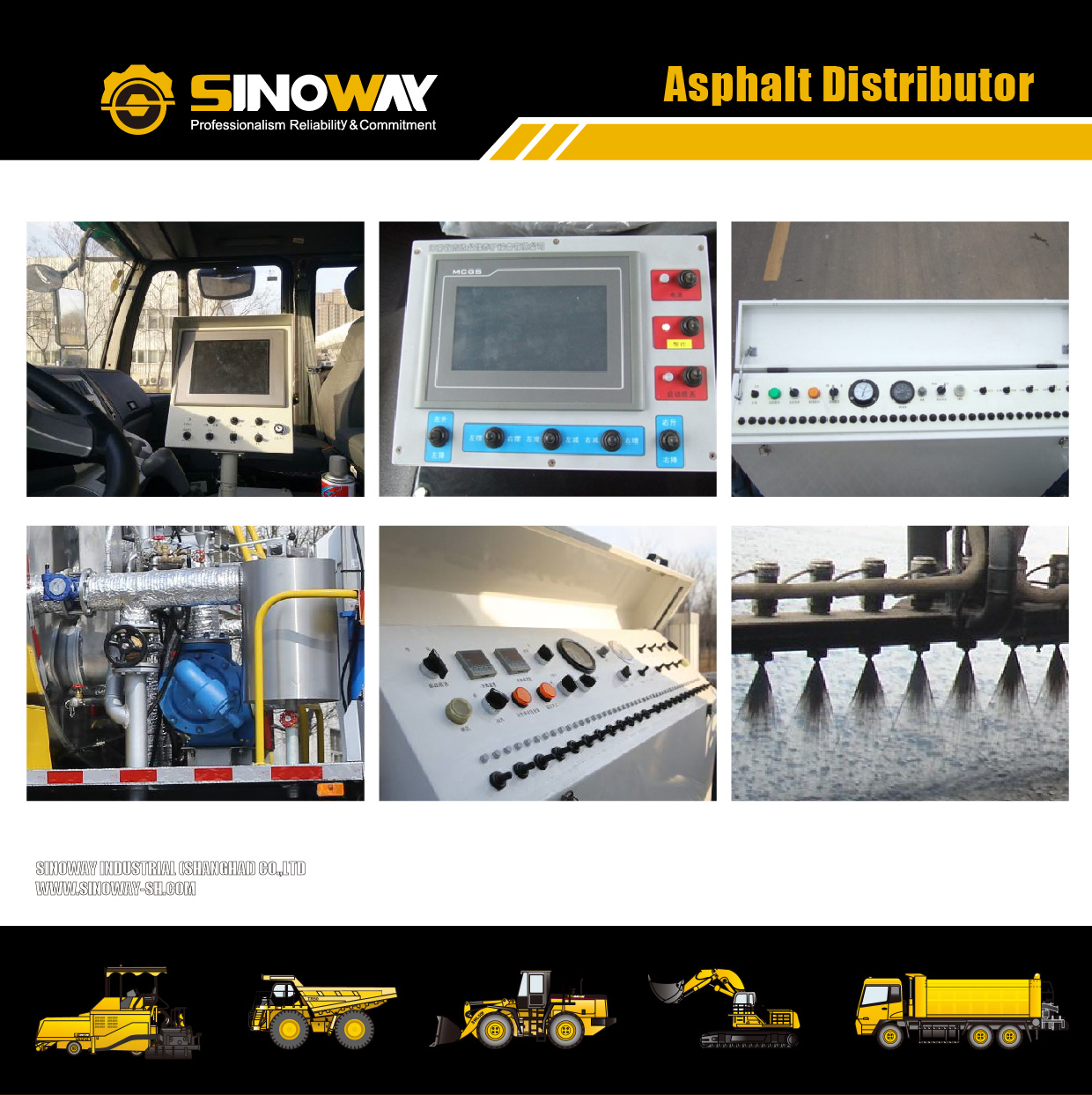

    Humanized design of control system could not only control remotely, but also operate on site, which makes the operation more convenient.
    Control system is equipped with two set independent systems of manual and automatic so that to make sure the machine can work
    at any time. The configured radar and encoder measure the precise vehicle speed and pump speed separately in order to control the spraying amount in construction. The cab is equipped with construction monitoring device and automatic operating board.
    Spray width is controlled by multiple air cylinders; each air cylinder can be adjusted freely and controlled independently.
    External power can realize auto circulated heating without main engine. This patent will reduce the engine wear; prolong the service life of main engine and save energy (save about 10t of diesel per year). It is likely to make auto circulated heating by main engine without external power.

    Performance Parameters
    Spray Width200~6000mm
    Spray Volume0.2~3.0kg/㎡
    Asphalt Tank Volume8000L
    Asphalt HeaterInterna onal brand diesel oil burner
    Spray MediaHot (modified) asphalt, diluted asphalt, emulsified as halt, etc.
    Spray Precision±1.5%
    N.V.W8010kg
    Payloading Capacity8000kg
    G.V.W16000kg
    Axle Loading Capacity (F/R)8000/9500kg
    Max. Travelling Speed90km/h
    Approach Angle23°
    Departure Angle16°
    Overall Length9000mm
    Overall Width2496mm
    Overall Height3420mm
    Wheel Base4700mm
    Tread (F/R)2022/1830mm
    Engine ModelMC05
    TypeFour-cylinder, water-cooled turbocharged, electronic injec on
    Rated Power151kw
    Rated Speed2200rpm
    TransmissionF6 & R1
    Front AxleSTEYR
    Rear AxleSTEYR
    Ra o4.8
    Tyre Size12.00-20
    Auxiliary Engine ModelYCD4R23T8
    Rated Power40.5kw
