13000 L Building Construction Equipments Asphalt Spayers Intelligent Asphalt Distributors

    Buy cheap 13000 L Building Construction Equipments Asphalt Spayers Intelligent Asphalt Distributors from wholesalers

    Buy cheap 13000 L Building Construction Equipments Asphalt Spayers Intelligent Asphalt Distributors from wholesalers
    • Buy cheap 13000 L Building Construction Equipments Asphalt Spayers Intelligent Asphalt Distributors from wholesalers

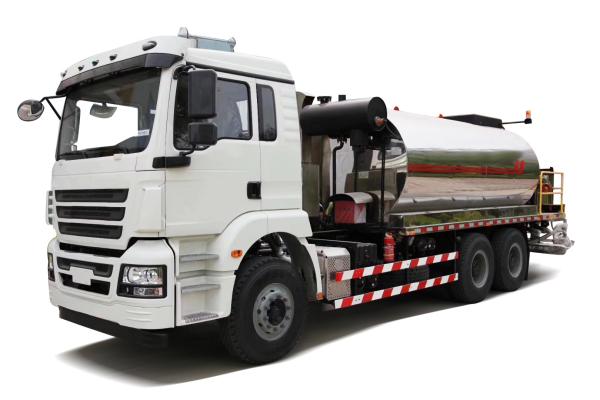

    13000 L Building Construction Equipments Asphalt Spayers Intelligent Asphalt Distributors

    Ask Lasest Price
    Brand Name : SINOWAY
    Model Number : SWSI1360GLQ
    Certification : ISO9001
    Price : Negotiation
    Payment Terms : T/T, L/C, D/A, D/P
    Supply Ability : 2000 units per year
    Delivery Time : 35 days
    • Product Details
    • Company Profile

    13000 L Building Construction Equipments Asphalt Spayers Intelligent Asphalt Distributors

    Road Construction Equipment

    Sinoway is leading the way in asphalt distributor innovation and technology in China. With the precision control on spraying, Sinoway asphalt distributor is good for applications covering prime coat, water-proof coat, as well as the tack coat for highway construction projects. The versatility of our bitumen distributor enable the spaying of hot asphalt, emulsified asphalt and modified asphalt.
    Sinoway asphalt distributors are engineered to deliver accurate, uniform and economical applications of liquid asphalt. We have intelligent bitumen distributors with full automatic control, making a superior machine even better, and also provide the environmentally friendly and efficiency.
    Main Advantages

    It adopts heavy duty chassis, which has advantages of large bearing capacity, high power, low fuel consumption and emission, easy operation.
    Equipped with auxiliary engine, to realize the heating when walking, shorten work time , improve the work efficiency.
    Good anticorrosive and durable insulation layer makes sure the temperature drop no more than 12℃/8h (Under normal temperature ).
    The tank adopts international brand diesel burner, high combustion efficiency and high heating efficiency, automatic ignition and automatic temperature control system, operation security and stability. It adopts durable asphalt pump and heat oil pump.
    Humanized design of control system could not only control remotely, but also operate on site, which makes the operation more convenient.
    Control system is equipped with two set independent systems of manual and automatic so that to make sure the machine can work
    at any time. The configured radar and encoder measure the precise vehicle speed and pump speed separately in order to control the spraying amount in construction. The cab is equipped with construction monitoring device and automatic operating board.
    Spray width is controlled by multiple air cylinders; each air cylinder can be adjusted freely and controlled independently.
    External power can realize auto circulated heating without main engine. This patent will reduce the engine wear; prolong the service life of main engine and save energy (save about 10t of diesel per year). It is likely to make auto circulated heating by main engine without external power.

    Performance Parameters
    Spray Width200~6000mm
    Spray Volume0.2~3.0kg/㎡
    Asphalt Tank Volume13000L
    Asphalt HeaterImported diesel oil burner
    Spray MediaHot (modified) asphalt, diluted asphalt, emulsified asphalt, etc.
    Spray Precision±1.5%
    N.V.W11420kg
    Payloading Capacity13450kg
    G.V.W25000kg
    Axle Loading Capacity (F/R)7000/2×9000kg
    Max. Travelling Speed90km/h
    Approach Angle15°
    Departure Angle16°
    Overall Length10550mm
    Overall Width2496mm
    Overall Height3860mm
    Wheel Base4600+1350mm
    Tread (F/R)1800/1830mm
    Engine ModelD10.27
    TypeSix-cylinder, water-cooled turbocharged, electronic injec
