140hp Hydraulic Building Construction Equipments 9 m Asphalt Paving Equipment

    Buy cheap 140hp Hydraulic Building Construction Equipments 9 m Asphalt Paving Equipment from wholesalers

    Buy cheap 140hp Hydraulic Building Construction Equipments 9 m Asphalt Paving Equipment from wholesalers
    • Buy cheap 140hp Hydraulic Building Construction Equipments 9 m Asphalt Paving Equipment from wholesalers

    140hp Hydraulic Building Construction Equipments 9 m Asphalt Paving Equipment

    Ask Lasest Price
    Brand Name : SINOWAY
    Model Number : SWAP90CH
    Certification : ISO9001
    Price : Negotiation
    Payment Terms : T/T, L/C, D/A, D/P
    Supply Ability : 200 units per year
    Delivery Time : 45 days
    • Product Details
    • Company Profile

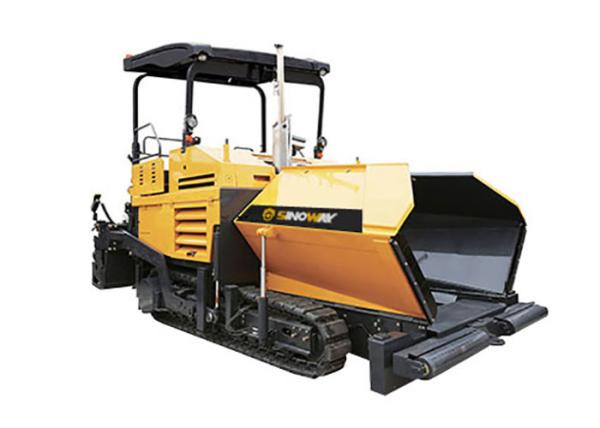

    140hp Hydraulic Building Construction Equipments 9 m Asphalt Paving Equipment

    Road Construction Equipment
    Asphalt paver (aslo called paver finisher, asphalt finisher, paving machine) is a piece of construction equipment used to lay hot asphalt on roads, bridges, parking lots and other such places. It lays the asphalt flat and provides minor compaction before it is compacted by a tandem vibratory roller.

    Sinoway asphalt paver collection is best for your paving applications. From 4.5 meters paving width wheeled asphalt paver, to 12.5 meters width full hydraulic crawler asphalt paver, there is right paver for your pavement project.

    Main Advantages

    The efficient and powerful delivery and feeding system can accurately deliver the paving material to the desired location, and the continuous and steady material delivery ensures the high quality paving.
    A new generation electronic paving management system has a good man-machine interface which can make the operation more intuitive, accurate and easy to control and achieve the perfect paving effect.
    It has a Smart economy energy-saving mode, power output automatically match the paving work load which can significantly reduce fuel consumption and meet the low-carbon green environmental requirements.
    Super rigid mechanical widening or hydraulic telescoping screed plate design has a variety of screed plate application options which can quickly complete the replacement of a machine double plate.
    Engine
    ModelSC8D
    TypeSix-cylinder
    turbocharged, mechanical injection
    Rated power140KW
    Rated speed2300rpm
    Main Technical Specification
    Basic paving width3000mm
    Max. paving width9500mm
    Max. paving thickness350mm
    Travelling speed0~3.3km/h
    Paving speed0~16.5m/min
    Max. theoretic productivity700t/h
    Operating weight21300~28800kg
    Gradeability20%
    Transverse leveling accuracy±0.03%
    Travelling Equipment
    TransmissionFull hydraulic
    UndercarriageTrack type
    Working Equipment
    Screed plate
    Basic width3000~9500mm
    Grade adjustment-1~+4%
    Extension modelMechanical
    HeatingGas heating
    Tamper frequency
    Frequency0~25Hz
    Vibrating frequency
    Frequency0~42Hz
    Hopper
    Capacity14000Kg
    Discharge typeHydraulic
    Dimensions
    Overall length6820mm
    Overall width3798mm
    Overall height3850mm
