    Road Paving Equipment 4.5 m Width Mobile Road Asphalt Paver Compact Road Finisher

    Ask Lasest Price
    Brand Name : SINOWAY
    Model Number : SWAP45H
    Certification : ISO9001
    Price : Negotiation
    Payment Terms : T/T, L/C, D/A, D/P
    Supply Ability : 200 units per year
    Delivery Time : 35 days
    • Product Details
    • Company Profile

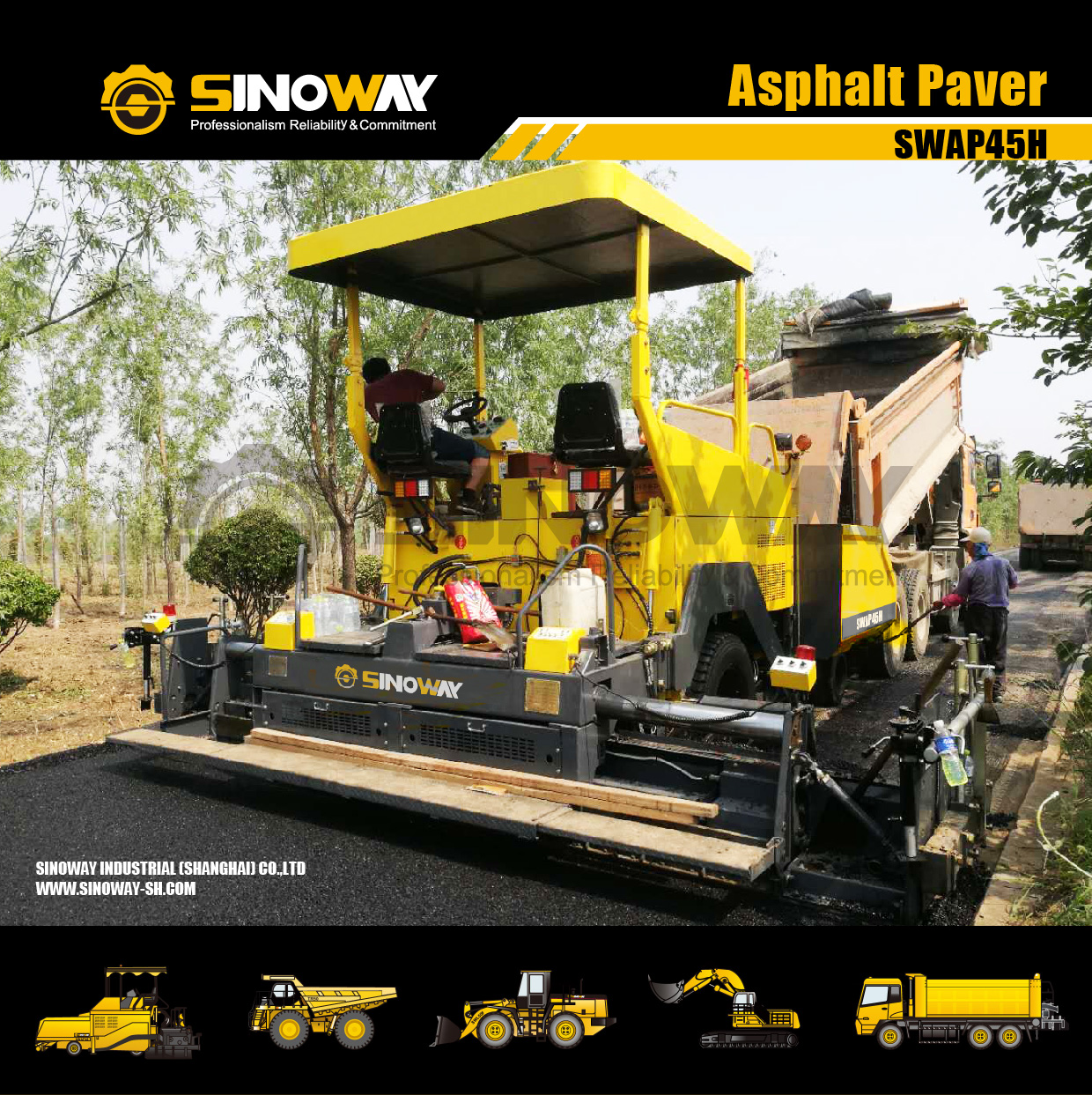

    Road Paving Equipment 4.5 m Width Mobile Road Asphalt Paver Compact Road Finisher

    Road Construction Equipment
    Asphalt paver (aslo called paver finisher, asphalt finisher, paving machine) is a piece of construction equipment used to lay hot asphalt on roads, bridges, parking lots and other such places. It lays the asphalt flat and provides minor compaction before it is compacted by a tandem vibratory roller.

    Sinoway asphalt paver collection is best for your paving applications. From 4.5 meters paving width wheeled asphalt paver, to 12.5 meters width full hydraulic crawler asphalt paver, there is right paver for your pavement project.

    Main Advantages

    Sinoway SWAP45H adopts digital network paving management system with easy operation.
    Hydraulic drive high speed ratio portal transaxle has excellent drive performance.
    Narrow width double row conveyor chain is automatically controlled by angle sensor to improve the paving quality.
    It has ECO smart economic power mode with energy saving.
    ModelSDEC
    TypeFour-cylinder, water-cooled turbocharged,mechanical injection
    Rated power73.5KW
    Rated speed2200rpm
    Main Technical Specification
    Basic paving width2000mm
    Max. paving width4500mm
    Max. paving thickness150mm
    Min. paving thickness30mm
    Travelling speed0~13Km/h
    Paving speed0~13m/min
    Max. theoretic productivity240t/h
    Operating weight11500Kg
    Working Equipment
    Screed plate
    Basic width2000mm
    Grade adjustment0~3%
    Extension modelHydraulic to 3500mm (From 3500mm to 4500mm by mechanical)
    HeatingGas
    Vibrating
    Frequency0~50Hz
    Tamper
    Frequency0~23Hz
    Dimensions
    Overall length5690mm
    Overall width2070mm
    Overall height3590mm
    Travelling Equipment
    TransmissionFull hydraulic
    Under carriageWheeled type
    Electric System
    Batteries2 sets
    System voltage24V
