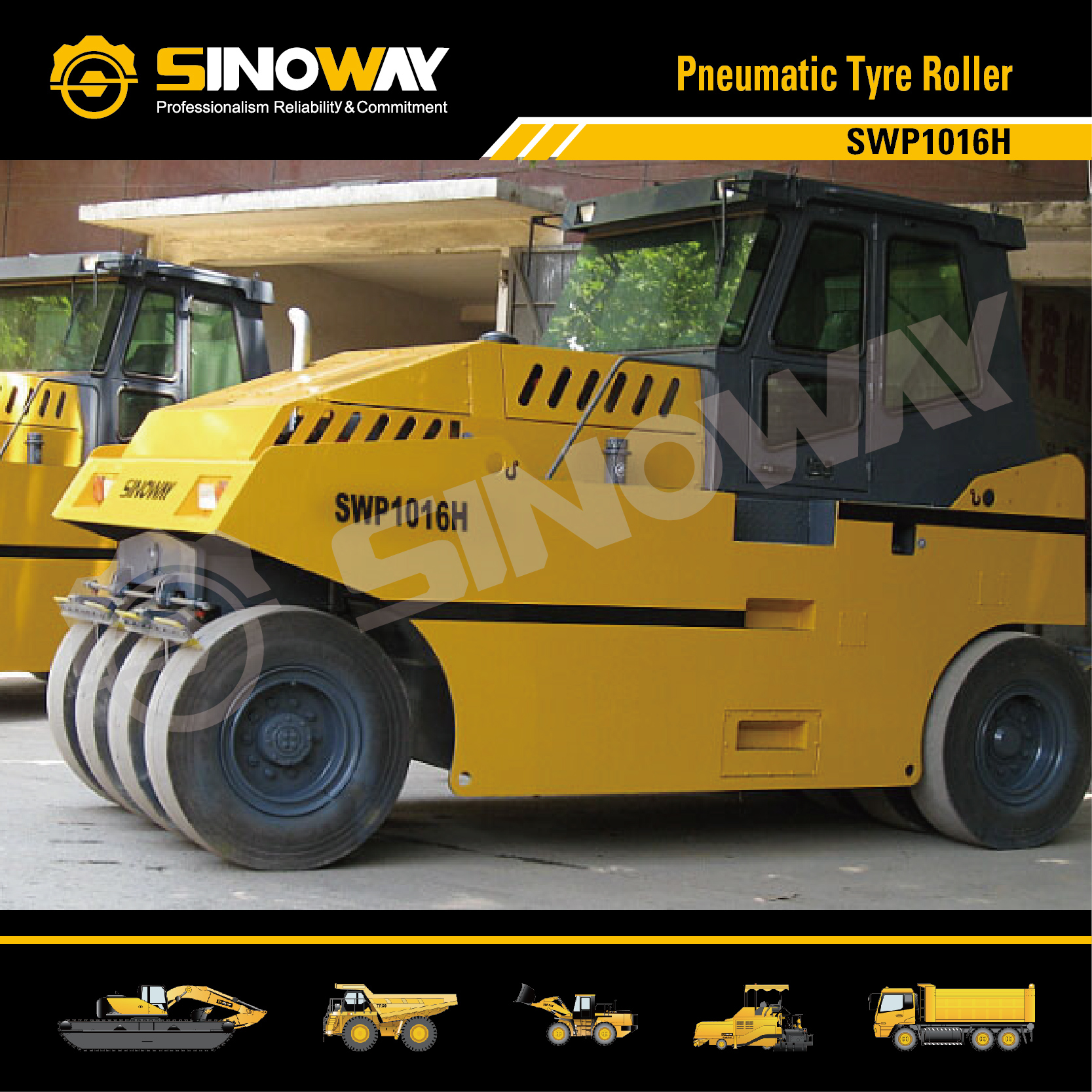

    10 ton Building Construction Equipments Pneumatic Tyre Roller for Road Pavement

    Ask Lasest Price
    Brand Name : SINOWAY
    Model Number : SWP1016H
    Certification : ISO9001
    Price : Negotiation
    Payment Terms : T/T, L/C, D/A, D/P
    Supply Ability : 3000 units per year
    Delivery Time : 30 days
    • Product Details
    • Company Profile

    10 ton Building Construction Equipments Pneumatic Tyre Roller for Road Pavement

    Building Construction Equipment

    Rubber tyre roller is mainly suitable for compaction of various viscous and non-viscous materials in pavement engineering, such as sand, gravel, stabilized soil, asphalt concrete, dry and hard concrete, especially for final treatment of asphalt surface of high-grade highway. It is a high-performance compaction equipment for construction of high-grade highway, airport, municipal engineering and industrial sites.

    Sionway pneumatic tire compactor is a special asphalt compactor typically utilized on hot mix asphalt pavement, but it's doing more than that including rolling surface treatments like chipping and seal, soil stabilization with modifiers such as asphalt emulsion, calcium chloride, fly ash, etc.
    Sinoway pneumatic tire rollers are with three capacities, 10 to 16 ton rubber tire roller, 18 to 26 tons pneumatic rollers, 20 to 35 ton pneumatic tire compactor. Cummins engine provides sufficient power for altitude operation. The tire numbers are 9 or 11, which offer wider compacting width better performance.


    Main Features

    Reliable and powerful Cummins engine with large power storage, reliable performance.

    Top quality compaction is achieved by the kneading and rolling effect of the wheels as vertical pressure combined with horizontal forces produce an excellent, uniform surface finish.

    On uneven surfaces, our patented Tire Suspension System, equipped with a tiltable front shaft, enables the 4 front wheels to swing up and down by +/- 8° achieving maximum ground contact for each wheel. This delivers optimum compact and improves safety by helping prevent the roller from tilting over.

    Safety is further enhanced with a three-stage breaking system utilizing hydraulics, oil cut-off and wheel side oil breaking. This three stage system protects the operator, site workers and members of the public from accidents.

    Engine
    ModelCummins
    TypeFour-cylinder,water-cooled turbocharged,mechanical injection
    Rated power95kw
    Rated speed2200rpm
    Transmission System
    TypeHydro-static
    Gradeability20%
    Travelling speed (km/h)
    Forward/Reverse0 - 13
    Travelling pumpSauer/Rexroth piston pump
    Travelling motorSauer/Rexroth piston motor
    Axle and Tyre
    Type of main reducerSpiral bevel gear
    Gear ratio1:6.17
    Final reducerChain driven
    Chain gear ratio1:2.17
    Single tire load (F/R)1778kg
    Tyre number (F+R)4+5
    Tyre size11.00-20
    Main Technical Specification
    Max. operating weight16000Kg
    Average ground pressure0.15 - 0.3MPa
    Tyre pressure0.2 - 0.8MPa
    Compacting width2255mm
    Vertical oscillation± 100mm
    Overlap50mm
    Steering System
    TypeHydraulic steering
    Working pressure13MPa
    Steering cylinderɸ90 x 50 x 260mm
    Min. steering radius7500mm
    Braking System
    Service brakeHydraulic brake
    Parking brakeOil cut-off brake
    Service Capacities
    Hydraulic tank67L
    Gear box10L
    Fuel tank240L
    Engine crank case16L
    Water tank600L
    Dimensions
    Overall length4980mm
    Overall width2286mm
    Overall height3220mm
    Wheelbase3700mm
    Ground clearance320mm
